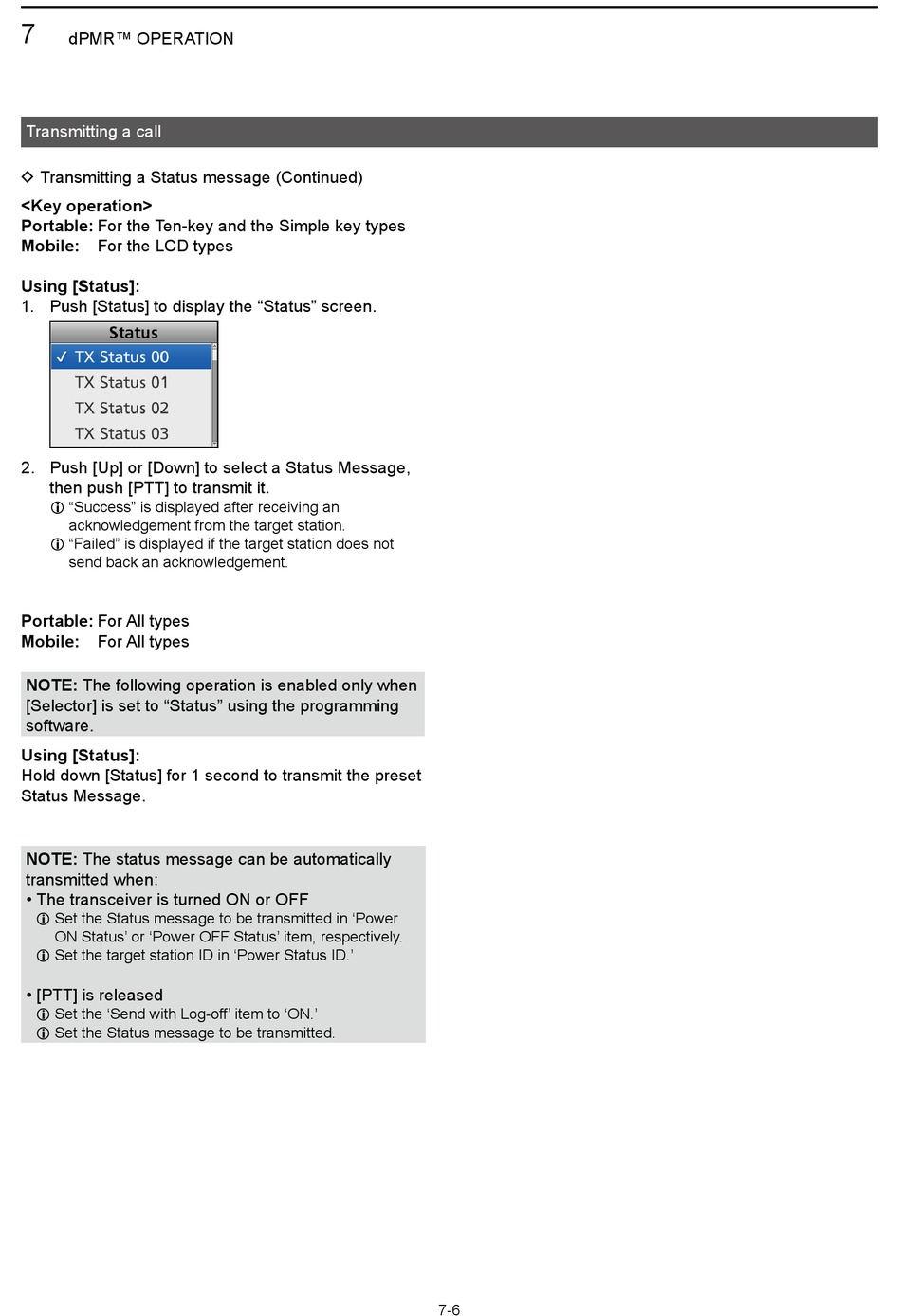

Icom IC-F5400DP Series Operating Manual page 86

7
dPMR™ OPERATION
Transmitting a call
D Transmitting a Status message (Continued)
<Key operation>
Portable: For the Ten-key and the Simple key types
Mobile: For the LCD types
Using [Status]:
1� Push [Status] to display the "Status" screen�
2� Push [Up] or [Down] to select a Status Message,
then push [PTT] to transmit it�
L "Success" is displayed after receiving an
acknowledgement from the target station�
L "Failed" is displayed if the target station does not
send back an acknowledgement�
Portable: For All types
Mobile: For All types
NOTE: The following operation is enabled only when
[Selector] is set to "Status" using the programming
software�
Using [Status]:
Hold down [Status] for 1 second to transmit the preset
Status Message�
NOTE: The status message can be automatically
transmitted when:
• The transceiver is turned ON or OFF
L Set the Status message to be transmitted in 'Power
ON Status' or 'Power OFF Status' item, respectively�
L Set the target station ID in 'Power Status ID�'
• [PTT] is released
L Set the 'Send with Log-off' item to 'ON�'
L Set the Status message to be transmitted�
7-6
