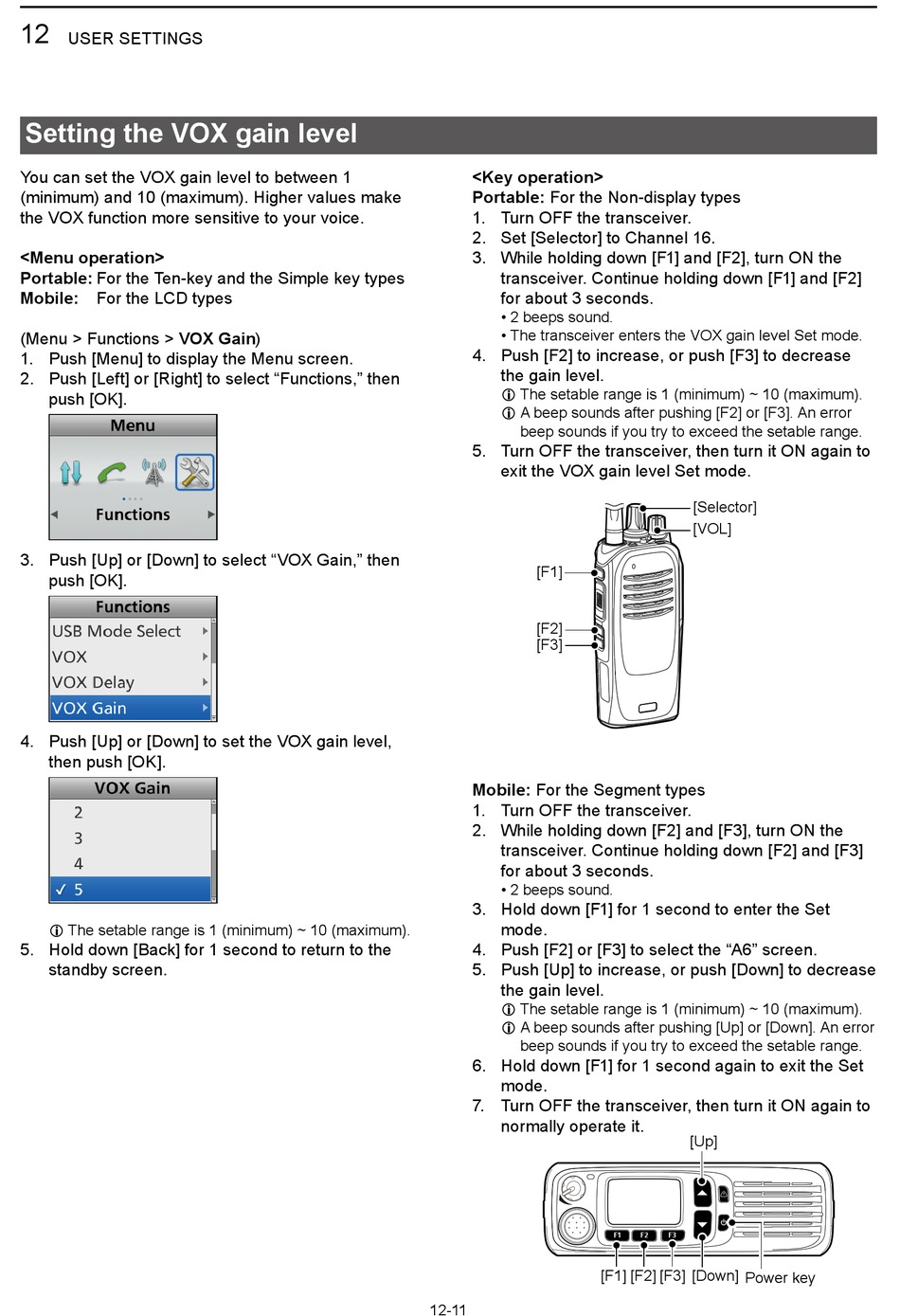

Icom IC-F5400DP Series Operating Manual page 168

12
USER SETTINGS
SeaaiIg ahe VOX gmiI level
You can set the VOX gain level to between 1
(minimum) and 10 (maximum)� Higher values make
the VOX function more sensitive to your voice�
<MeIu opeomaioI>
Pooamble: For the Ten-key and the Simple key types
Mobile: For the LCD types
( Menu > Functions > VOX GmiI)
1� Push [Menu] to display the Menu screen�
2� Push [Left] or [Right] to select "Functions," then
push [OK]�
3� Push [Up] or [Down] to select "VOX Gain," then
push [OK]�
4� Push [Up] or [Down] to set the VOX gain level,
then push [OK]�
L The setable range is 1 (minimum) ~ 10 (maximum)�
5� Hold down [Back] for 1 second to return to the
standby screen�
<Key opeomaioI>
Pooamble: For the Non-display types
1� Turn OFF the transceiver�
2� Set [Selector] to Channel 16�
3� While holding down [F1] and [F2], turn ON the
transceiver� Continue holding down [F1] and [F2]
for about 3 seconds�
• 2 beeps sound�
• The transceiver enters the VOX gain level Set mode�
4� Push [F2] to increase, or push [F3] to decrease
the gain level�
L The setable range is 1 (minimum) ~ 10 (maximum)�
L A beep sounds after pushing [F2] or [F3]� An error
beep sounds if you try to exceed the setable range�
5� Turn OFF the transceiver, then turn it ON again to
exit the VOX gain level Set mode�
[F1]
[F2]
[F3]
Mobile: For the Segment types
1� Turn OFF the transceiver�
2� While holding down [F2] and [F3], turn ON the
transceiver� Continue holding down [F2] and [F3]
for about 3 seconds�
• 2 beeps sound�
3� Hold down [F1] for 1 second to enter the Set
mode�
4� Push [F2] or [F3] to select the "A6" screen�
5� Push [Up] to increase, or push [Down] to decrease
the gain level�
L The setable range is 1 (minimum) ~ 10 (maximum)�
L A beep sounds after pushing [Up] or [Down]� An error
beep sounds if you try to exceed the setable range�
6� Hold down [F1] for 1 second again to exit the Set
mode�
7� Turn OFF the transceiver, then turn it ON again to
normally operate it�
12-11
[Selector]
[VOL]
[Up]
F1 F2 F3
[F1] [F2] [F3] [Down]
Power key
