Icom IC-F5400DP Series Operating Manual page 14

2

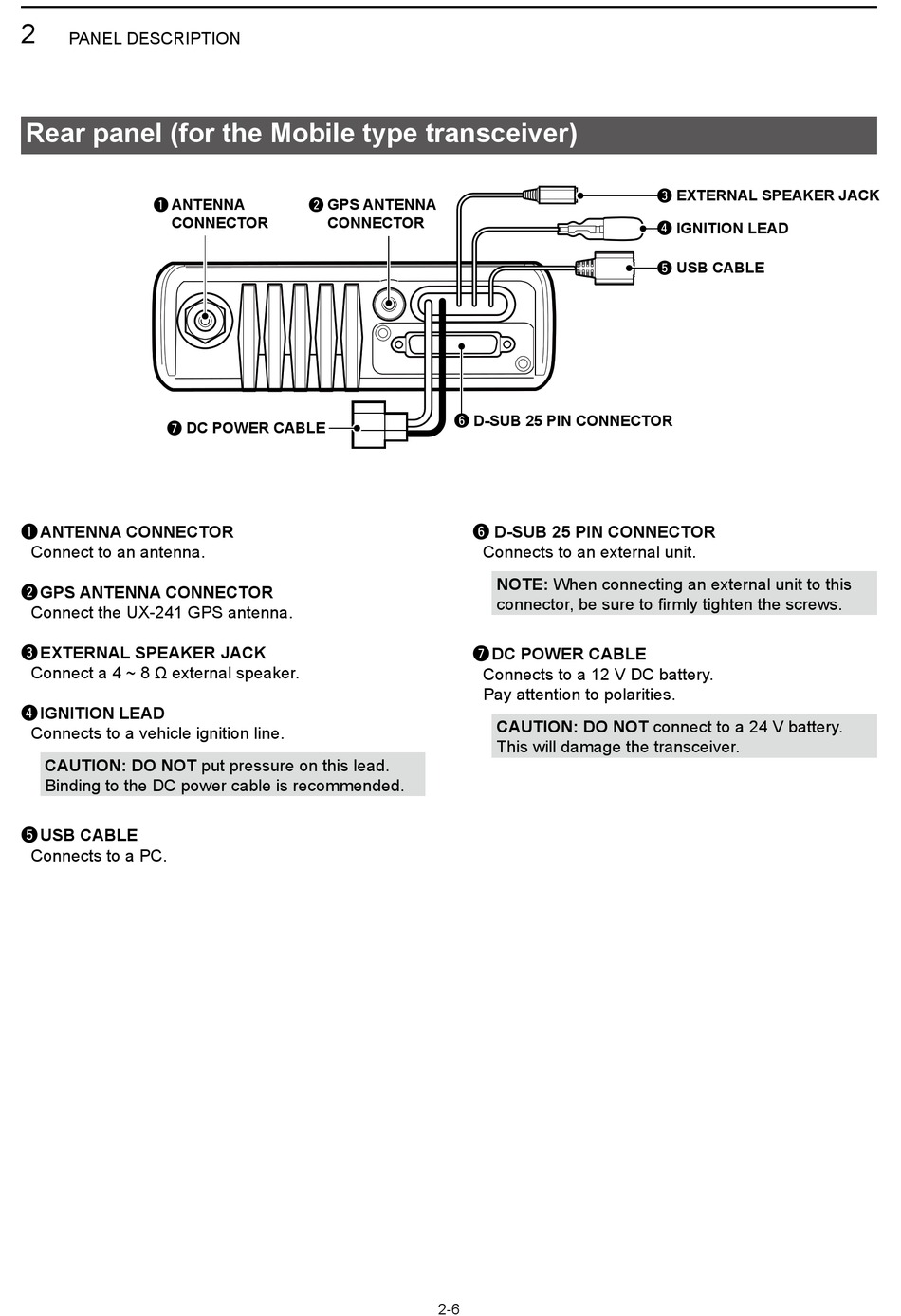

PANEL DESCRIPTION
Rear panel (for the Mobile type transceiver)
ANTENNA
q
CONNECTOR
u DC POWER CABLE
q ANTENNA CONNECTOR
Connect to an antenna
w GPS ANTENNA CONNECTOR
Connect the UX-241 GPS antenna
e EXTERNAL SPEAKER JACK
Connect a 4 ~ 8 Ω external speaker.
r IGNITION LEAD
Connects to a vehicle ignition line
CAUTION: DO NOT put pressure on this lead
Binding to the DC power cable is recommended
t USB CABLE
Connects to a PC
GPS ANTENNA
w
CONNECTOR
y D-SUB 25 PIN CONNECTOR
y D-SUB 25 PIN CONNECTOR
u DC POWER CABLE
2-6
Connects to an external unit
NOTE: When connecting an external unit to this
connector, be sure to firmly tighten the screws.
Connects to a 12 V DC battery
Pay attention to polarities
CAUTION: DO NOT connect to a 24 V battery
This will damage the transceiver
e EXTERNAL SPEAKER JACK
r IGNITION LEAD
t USB CABLE
