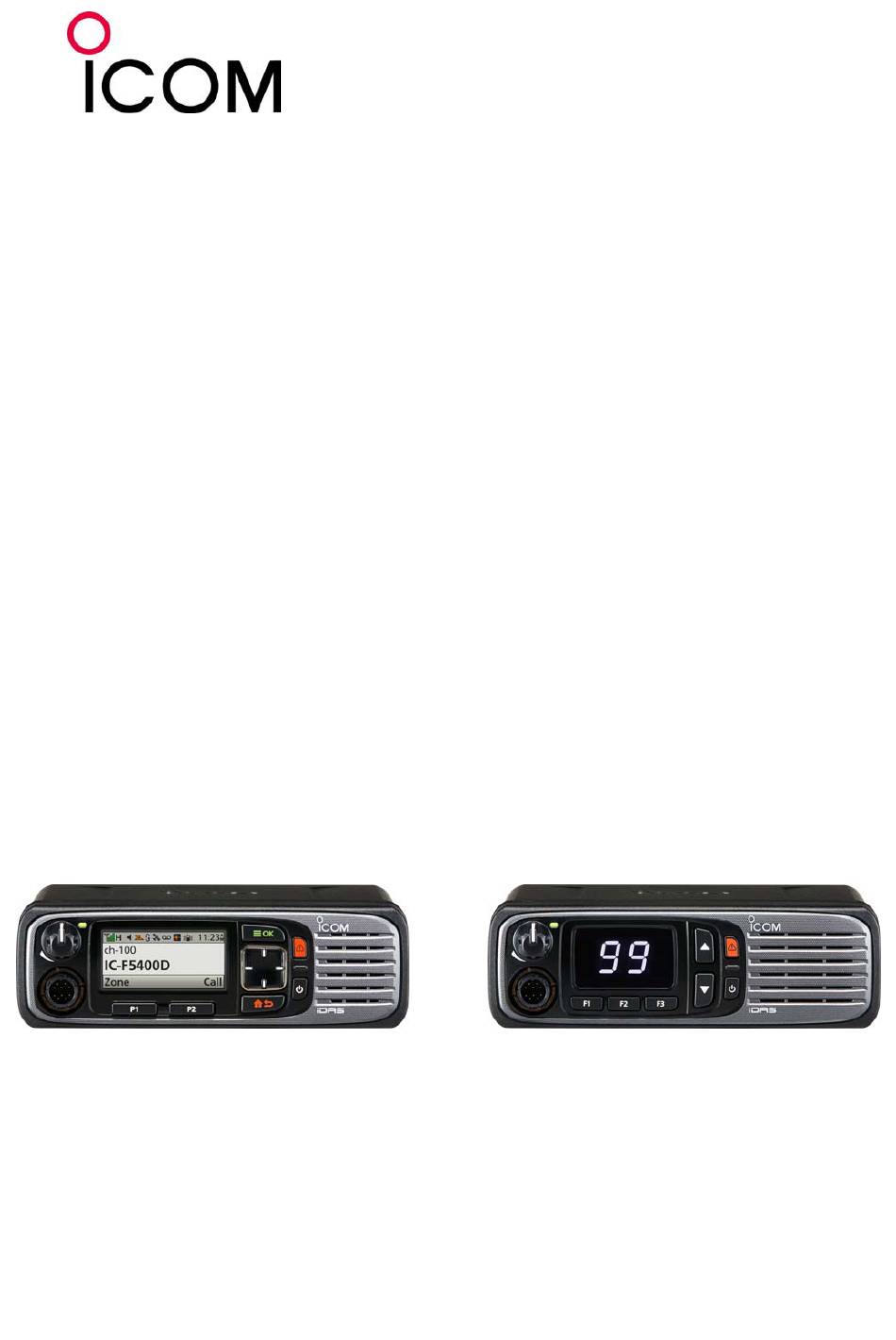

- Page 1 Version 1.0 December 2016 NXDN™ IC-F5400D/IC-F6400D SERIES PRODUCT GUIDE PGX-IC-F5400D/F6400D-V1.0...
- Page 2 Icom hopes this product guide will help you to promote sales of the IC-F5400D/IC-F6400D series transceivers. Trademarks Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United Kingdom, Germany, France, Spain, Russia, Australia, New Zealand, and/or other countries.
-
Page 3: Table Of Contents
NXDN™ IC-F5400D/IC-F6400D SERIES PRODUCT GUIDE TABLE OF CONTENTS SECTION 1 PRODUCT OUTLINES ......................4 ABOUT THE PRODUCT OUTLINES, SALES POINTS, AND TARGET USERS ..4 IC-F5400D/IC-F6400D’S SPECIFICATIONS ............... 9 SECTION 2 PRODUCT RANGE ......................11 SECTION 3 COMPARISON WITH EXISTING MODELS ............... 12 FUNCTION COMPARISON BETWEEN THE IC-F5400D/IC-F6400D AND EXISTING MODELS .................... -
Page 4: Section 1 Product Outlines
ABOUT THE PRODUCT OUTLINES, SALES POINTS, AND TARGET USERS About the IC-F5400D/IC-F6400D series transceivers The IC-F5400D/IC-F6400D series transceivers have a drastically changed appearance from traditional Icom land mobile transceivers, and operability that adapts a diversified operating style. In addition, the transceivers are compatible with NXDN™... - Page 5 NXDN™ IC-F5400D/IC-F6400D SERIES PRODUCT GUIDE • Improved optional unit attachment The controller can be detached without using a screw driver. Therefore, the optional unit can easily be attached. To detach the controller, pull up on the latches to unlock the controller. Controller Bottom view of the main unit.
- Page 6 English French German • A user interface improves the operability compared with previous Icom land mobile transceivers. You can reach desired operations and/or settings by only selecting the icon, or from a list on the menu screen. USB mode selecting example...
- Page 7 NXDN™ IC-F5400D/IC-F6400D SERIES PRODUCT GUIDE • Various operation styles (Available only for IC-F5400D/IC-F6400D) IC-F5400D/IC-F6400D transceiver can be operated in the following operation styles. Each operation style requires main unit firmware revision 1.6 or later. Detached controller style You can install the controller close to the operator. Therefore, you can efficiently use the limited space in a vehicle or the top of a desk.
- Page 8 NXDN™ IC-F5400D/IC-F6400D SERIES PRODUCT GUIDE Target users B & I markets Public works (Electric power (Transport, and so on) industry, Water services, Public safety and so on) Headquarters of security services Taxi companies Construction sites Transportation businesses • Users who require the AES/DES encryption function. •...
-
Page 9: Ic-F5400D/Ic-F6400D's Specifications
NXDN™ IC-F5400D/IC-F6400D SERIES PRODUCT GUIDE IC-F5400D/IC-F6400D’S SPECIFICATIONS Model name IC-F5400D IC-F6400D #01, #11 #01, #11, #21, #31 Version USA-01, USA-11, USA-21, USA-01, USA-11 Destination USA-31 GENERAL 380 ~ 470 MHz 136 ~ 174 MHz Frequency coverage 450 ~ 512 MHz 1,024 ch/128 zones [IC-F5400D, IC-F6400D] 4,000 ch/128 zones [The license is activated.] Number of conventional channels... - Page 10 NXDN™ IC-F5400D/IC-F6400D SERIES PRODUCT GUIDE Model name IC-F5400D IC-F6400D RECEIVER • 0.22 μV typical • 0.25 μV typical @ 12 dB SINAD @ 12 dB SINAD • ‒6.0 dBμV (EMF) typical • ‒6.0 dBμV (EMF) typical Sensitivity @ 1% BER (D: 6.25 kHz) @ 1% BER (D: 6.25 kHz) •...
-
Page 11: Section 2 Product Range
NXDN™ IC-F5400D/IC-F6400D SERIES PRODUCT GUIDE SECTION 2 PRODUCT RANGE The IC-F5400D/IC-F6400D series transceivers are excellent in operability, built-in functions, and scalability. The transceivers are positioned as high grade land mobile transceivers, as shown in the following positioning map. You can see that the IC-F5400D/IC-F6400D series transceivers are higher grade than the IC- F5060D/IC-F6060D series transceivers on the map. -
Page 12: Section 3 Comparison With Existing Models
NXDN™ IC-F5400D/IC-F6400D SERIES PRODUCT GUIDE SECTION 3 COMPARISON WITH EXISTING MODELS FUNCTION COMPARISON BETWEEN THE IC-F5400D/IC-F6400D AND EXISTING MODELS Models IC-F5400D IC-F5060D IC-F5120D IC-F6400D IC-F6060D IC-F6120D Functions Series Series Series (Optional NXDN™ Type-D single-site trunking ISL-UGMTR is required.) (Optional None NXDN™... -
Page 13: Function Comparison Between The Ic-F5400D/Ic-F6400D And Ic-F5060D/Ic-F6060D
NXDN™ IC-F5400D/IC-F6400D SERIES PRODUCT GUIDE FUNCTION COMPARISON BETWEEN THE IC-F5400D/IC-F6400D AND IC-F5060D/IC-F6060D IC-F5400D/IC-F6400D IC-F5060D/IC-F6060D FUNCTION SERIES SERIES Operation type Single-site conventional Multi-site conventional Optional Single-site trunking Optional Multi-site trunking Analog mode 6.25 kHz Digital mode None 12.5 kHz Digital mode Analog/Digital mix mode YES (Optional for [USA]) None... -
Page 14: Specification Comparison Between Ic-F5400D And Ic-F5060D
NXDN™ IC-F5400D/IC-F6400D SERIES PRODUCT GUIDE SPECIFICATION COMPARISON BETWEEN IC-F5400D AND IC-F5060D SPECIFICATIONS IC-F5400D SERIES IC-F5060D SERIES GENERAL 1,024 channels/128 Zones 512 channels/128 Zones Channel capacity (Maximum: 4,000 channels) A: 11K0F3E A: 11K0F3E D: 4K00F1E, D (6.25 kHz) Type of emission D: 4K00F1E, D (6.25 kHz) 8K30F1E, D (12.5 kHz) 1st: 49.95 MHz... -
Page 15: Specification Comparison Between Ic-F6400D And Ic-F6060D
NXDN™ IC-F5400D/IC-F6400D SERIES PRODUCT GUIDE SPECIFICATION COMPARISON BETWEEN IC-F6400D AND IC-F6060D SPECIFICATIONS IC-F6400D SERIES IC-F6060D SERIES GENERAL 1,024 channels/128 Zones 512 channels/128 Zones Channel capacity (Maximum: 4,000 channels) A: 11K0F3E A: 11K0F3E D: 4K00F1E, D (6.25 kHz) Type of emission D: 4K00F1E, D (6.25 kHz) 8K30F1E, D (12.5 kHz) 1st: 49.95 MHz... -
Page 16: Section 4 New Function Introduction
Class 1 and Bluetooth version 2.1+EDR, and the details of the compatible profile are as shown in the table below. *Only PTT switch action is checked. Icom does not guarantee all functions and performance of the ® Bluetooth headset. - Page 17 NXDN™ IC-F5400D/IC-F6400D SERIES PRODUCT GUIDE • Voice recorder function The voice recorder function can record both transmitting and receiving voice audio onto a microSD* or microSDHC* card (hereinafter called microSD* card). The recorded voice audio can be played back on the transceiver or a PC.
- Page 18 NXDN™ IC-F5400D/IC-F6400D SERIES PRODUCT GUIDE • Transparent data mode The IC-F5400D/IC-F6400D series transceivers have the Transparent data mode. The Transparent data mode enables data transmission at 3600 bps. This function enables you to transmit simple measuring data, such as air temperature, or still images for remote monitoring. Office PC Sending a picture (Viewing the received picture)
- Page 19 NXDN™ IC-F5400D/IC-F6400D SERIES PRODUCT GUIDE • Expanding functions by activation licenses The IC-F5400D/IC-F6400D series transceivers can expand their functions using an activation license. You can upgrade the transceiver using the programming software. The license is linked to the transceiver's serial number.
- Page 20 NXDN™ IC-F5400D/IC-F6400D SERIES PRODUCT GUIDE • TX/RX audio equalizer function This function can improve or correct the TX/RX audio readability by increasing or decreasing particular audio frequency components. This function requires main unit firmware revision 1.6 or later. • Hot DTMF function The IC-F5400D/IC-F6400D series transceiver has the Hot DTMF function that can transmit DTMF signals without holding down [PTT] when you use a DTMF microphone.
- Page 21 NXDN™ IC-F5400D/IC-F6400D SERIES PRODUCT GUIDE Dual head controller style DUAL-HEAD SEPARATION CABLE SEPARATION KIT for RMK-5 or RMK-7 MICROPHONE Table 4-6. Required equipment for the dual head controller style Category Product name Quantity DUAL-HEAD RMK-7 SEPARATION KIT OPC-2364 (1.9 m/ 6.2 ft) SEPARATION CABLE OPC-2365 (3 m/ 9.8 ft) Either two...
-
Page 22: Section 5 Accessories
NXDN™ IC-F5400D/IC-F6400D SERIES PRODUCT GUIDE SECTION 5 ACCESSORIES Current optional accessories available for the IC-F5400D/IC-F6400D series transceivers are shown below. (Some accessories may not be available in some countries.) MICROPHONES HM-221 MICROPHONE HM-221T DTMF MICROPHONE Meets IP55 waterproof/dustproof Meets IP55 waterproof/dustproof ... - Page 23 NXDN™ IC-F5400D/IC-F6400D SERIES PRODUCT GUIDE EXTERNAL SPEAKERS SP-30 (Cable length: 2.6 m/ 8.5 ft) SP-35 (Cable length: 2 m/ 6.6 ft) SP-35L (Cable length: 6 m/ 19.7 ft) SEPARATION KITS AND CABLES RMK-5 SEPARATION KIT RMK-7 DUAL-HEAD SEPARATION KIT (firmware revision 1.6 or later required.) (firmware revision 1.6 or later required.) Connection example...
- Page 24 NXDN™ IC-F5400D/IC-F6400D SERIES PRODUCT GUIDE OTHERS DC POWER CABLES OPC-2362 ZONE COPY CABLE OPC-1132 (Cable length: 3 m/ 9.8 ft) (to connect with the IC-F3400D/IC-F4400D series OPC-347 (Cable length: 7 m/ 23 ft) transceiver) (Cable length: 80 cm/ 2.6 ft) OPC-1132 ...
-
Page 25: Appendix Required Equipment For System Construction
NXDN™ IC-F5400D/IC-F6400D SERIES PRODUCT GUIDE APPENDIX REQUIRED EQUIPMENT FOR SYSTEM CONSTRUCTION Required equipment to construct a Single-site conventional system Items Product name Repeater IC-FR5000/IC-FR6000 Required equipment to construct a Multi-site conventional system Items Product name Repeater IC-FR5000/IC-FR6000 Trunking/Network controller UC-FR5000(#02) (The CF-FR5000MC is installed.) ...
