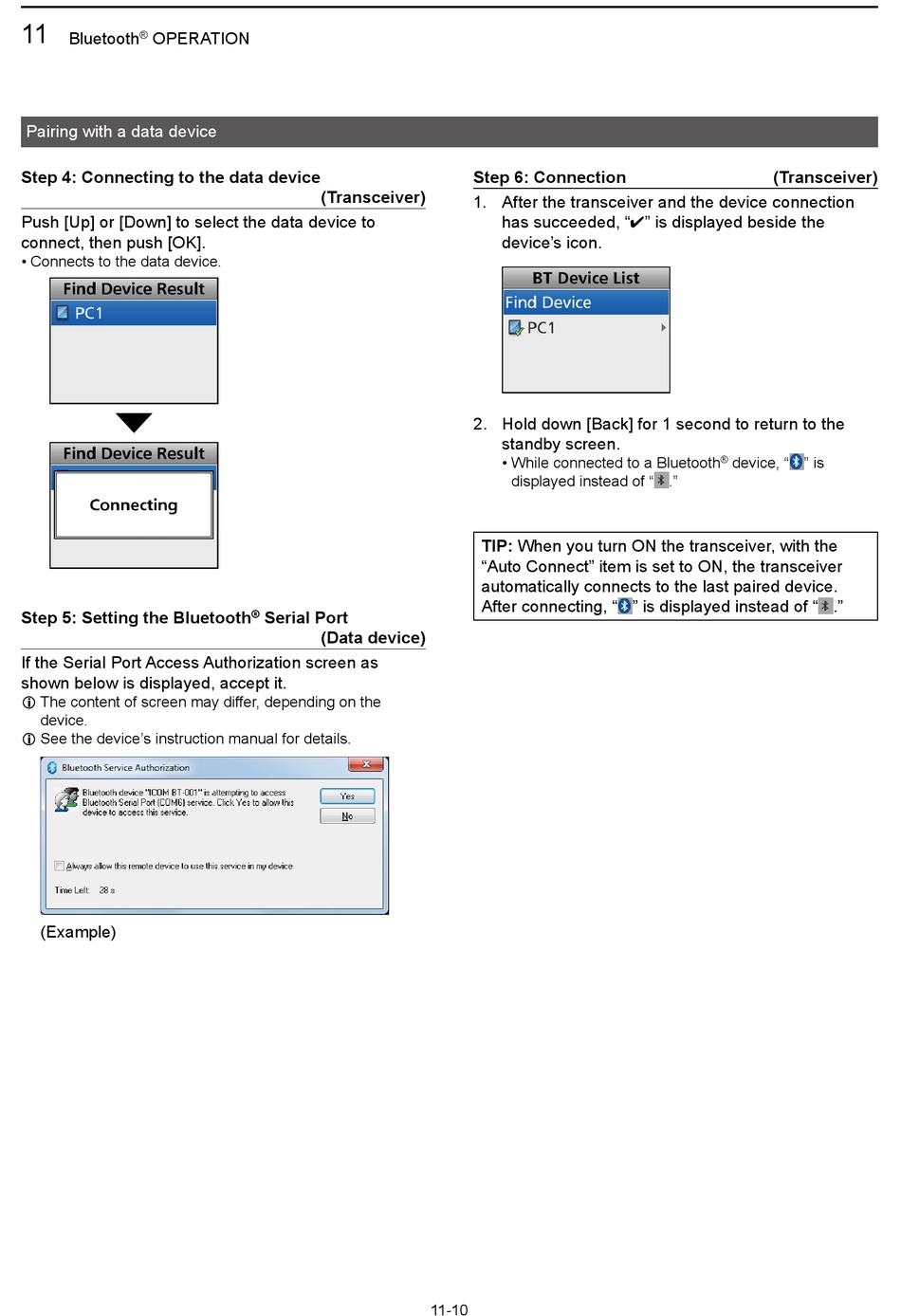

Icom IC-F5400DP Series Operating Manual page 150

11
Bluetooth ® OPERATION
Pairing with a data device
Step 4: Connecting to the data device
Push [Up] or [Down] to select the data device to
connect, then push [OK]�
• Connects to the data device�
Step 5: Setting the Bluetooth
If the Serial Port Access Authorization screen as
shown below is displayed, accept it�
L The content of screen may differ, depending on the
device�
L See the device's instruction manual for details�
(Example)
(Transceiver)
® Serial Port
(Data device)
Step 6: Connection
1� After the transceiver and the device connection
has succeeded, "" is displayed beside the
device's icon�
2� Hold down [Back] for 1 second to return to the
standby screen�
• While connected to a Bluetooth
displayed instead of " �"
TIP: When you turn ON the transceiver, with the
"Auto Connect" item is set to ON, the transceiver
automatically connects to the last paired device�
After connecting, " " is displayed instead of " �"
11-10
(Transceiver)
® device, " " is
