1
ACCESSORIES

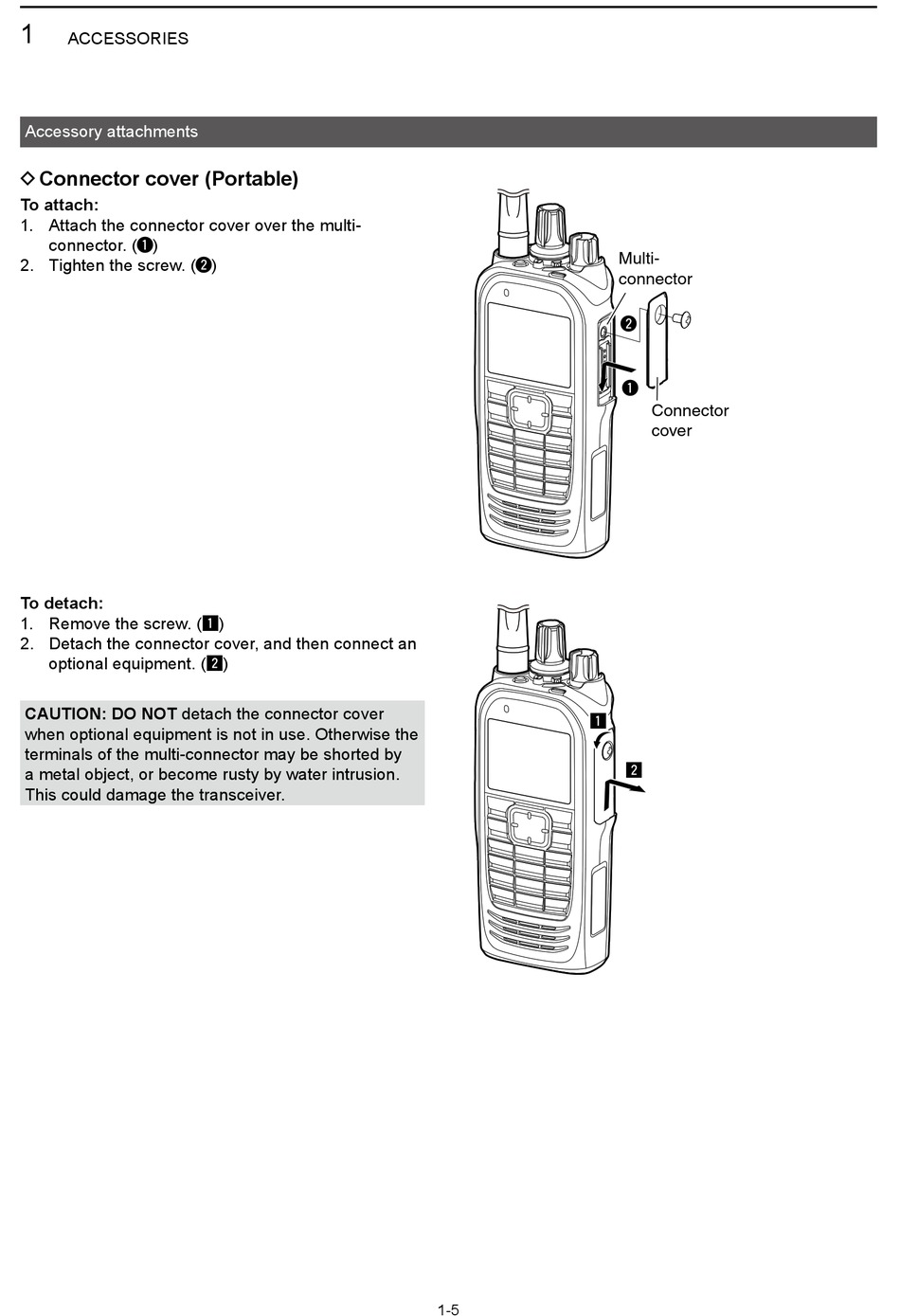

Accessory attachments
D Connector cover (Portable)
To attach:
1 Attach the connector cover over the multi-
connector (q)
2 Tighten the screw (w)
To detach:
1 Remove the screw (z)
2 Detach the connector cover, and then connect an
optional equipment (x)
CAUTION: DO NOT detach the connector cover
when optional equipment is not in use Otherwise the
terminals of the multi-connector may be shorted by
a metal object, or become rusty by water intrusion
This could damage the transceiver
z
1-5
Multi-
connector
w
q
Connector
cover
x
