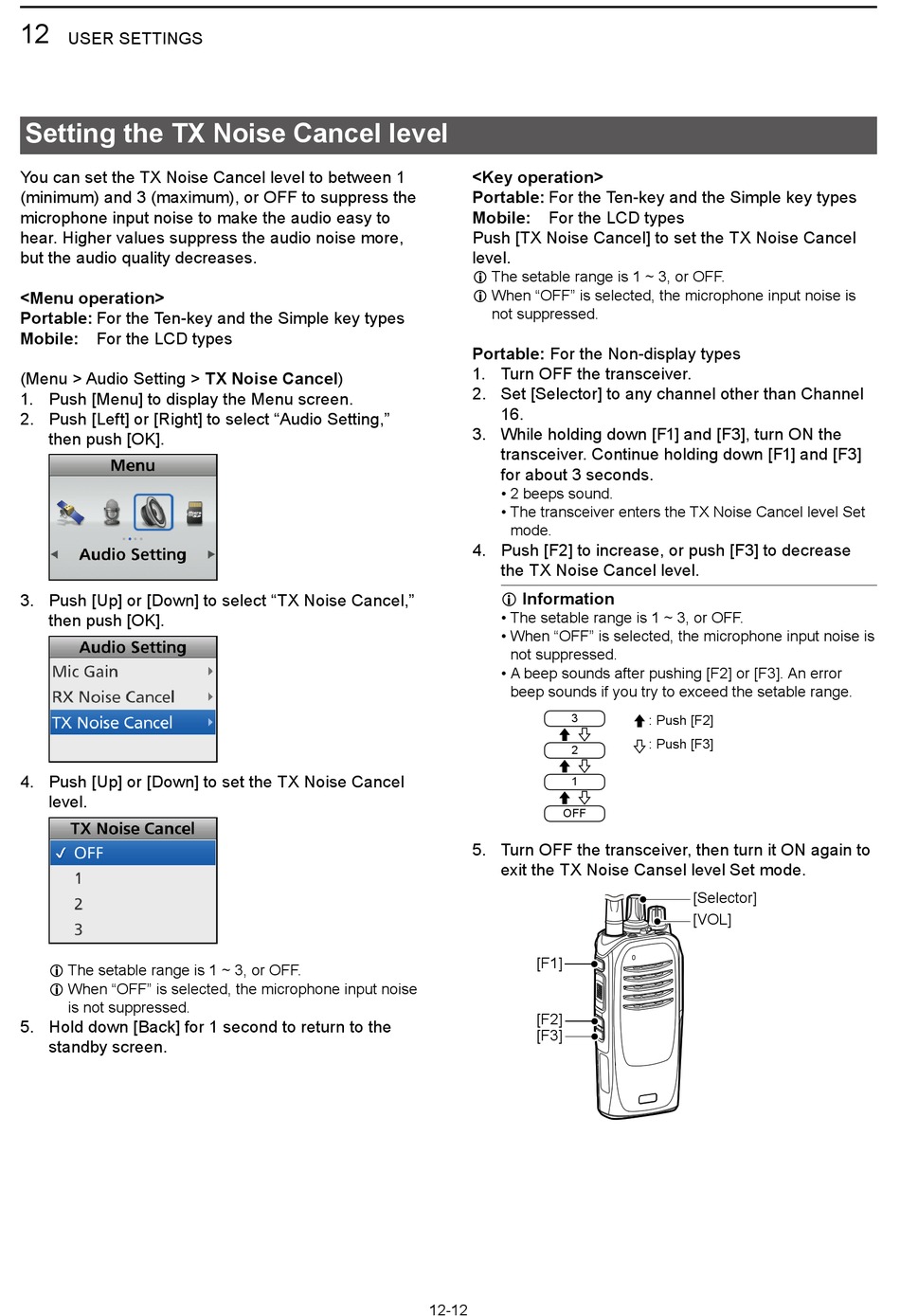

Icom IC-F5400DP Series Operating Manual page 169

12
USER SETTINGS
SeaaiIg ahe TX Noise CmIcel level
You can set the TX Noise Cancel level to between 1
(minimum) and 3 (maximum), or OFF to suppress the
microphone input noise to make the audio easy to
hear� Higher values suppress the audio noise more,
but the audio quality decreases�
<MeIu opeomaioI>
Pooamble: For the Ten-key and the Simple key types
Mobile: For the LCD types
( Menu > Audio Setting > TX Noise CmIcel)
1� Push [Menu] to display the Menu screen�
2� Push [Left] or [Right] to select "Audio Setting,"
then push [OK]�
3� Push [Up] or [Down] to select "TX Noise Cancel,"
then push [OK]�
4� Push [Up] or [Down] to set the TX Noise Cancel
level�
L The setable range is 1 ~ 3, or OFF�
L When "OFF" is selected, the microphone input noise
is not suppressed�
5� Hold down [Back] for 1 second to return to the
standby screen�
<Key opeomaioI>
Pooamble: For the Ten-key and the Simple key types
Mobile: For the LCD types
Push [TX Noise Cancel] to set the TX Noise Cancel
level�
L The setable range is 1 ~ 3, or OFF�
L When "OFF" is selected, the microphone input noise is
not suppressed�
Pooamble: For the Non-display types
1� Turn OFF the transceiver�
2� Set [Selector] to any channel other than Channel
16�
3� While holding down [F1] and [F3], turn ON the
transceiver� Continue holding down [F1] and [F3]
for about 3 seconds�
• 2 beeps sound�
• The transceiver enters the TX Noise Cancel level Set
mode�
4� Push [F2] to increase, or push [F3] to decrease
the TX Noise Cancel level�
InoormaioI
L
• The setable range is 1 ~ 3, or OFF�
• When "OFF" is selected, the microphone input noise is
not suppressed�
• A beep sounds after pushing [F2] or [F3]� An error
beep sounds if you try to exceed the setable range�
3
2
1
OFF
5� Turn OFF the transceiver, then turn it ON again to
exit the TX Noise Cansel level Set mode�
[F1]
[F2]
[F3]
12-12
: Push [F2]
: Push [F3]
[Selector]
[VOL]
