Ethernet Connections

Publication 2711PC-UM001A-EN-P - March 2009
The Ethernet port on the PanelView terminals supports:
• EtherNet/IP communication.
• third-party Ethernet communication.
• network connections.
• application uploads/downloads.
• printing.

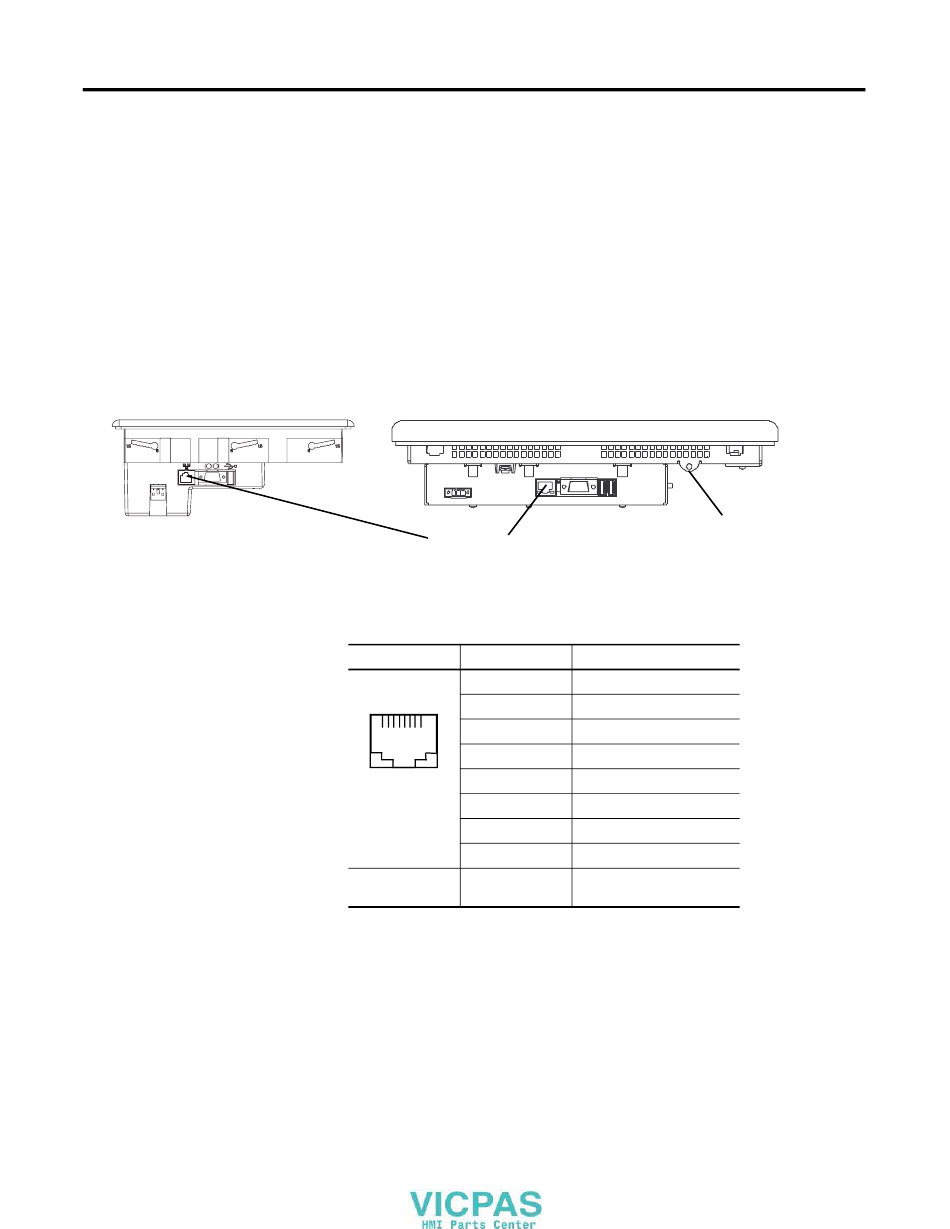

Ethernet Connector
The terminals have an RJ45, 10/100 Base-T connector for EtherNet/IP
or Ethernet TCP/IP network communication.
Ethernet Port
The table shows the connector pinouts.
Ethernet Connector Pinout
Pin Pin
Looking into RJ45 1
Connector
2
8
1
3
4
5
6
7
8
Shield Connection
Use point-to-point, 10/100 Base-T cables with cross over pin-outs,
such as catalog number 2711P-CBL-EX04, when connecting the
Ethernet port on the terminal directly to:
• Ethernet port on the controller.
• 10/100 Base-T port on a computer without a switch.
Terminal Connections
Insert plastic tie wrap in
hole and use as strain relief
for all attached cables.
Pin Name
TD+
TD-
RD+
NC
NC
RD-
NC
NC
No Direct Connection
(AC coupled to Chassis GND)
Chapter 6
93
