Replacing the Bezel

Publication 2711PC-UM001A-EN-P - March 2009
The 1000 terminal has a touch screen that can only be replaced with
the same touch screen. You do not have to remove the logic module
before removing the display module bezel.
Follow these steps to remove the display module bezel on the 1000
terminal.
1. Disconnect power from the terminal.
2. Set the terminal, display side down, on a flat stable surface.
Wear a properly grounded ESD wristband before
ATTENTION
touching any of the electronic components in the
logic module.

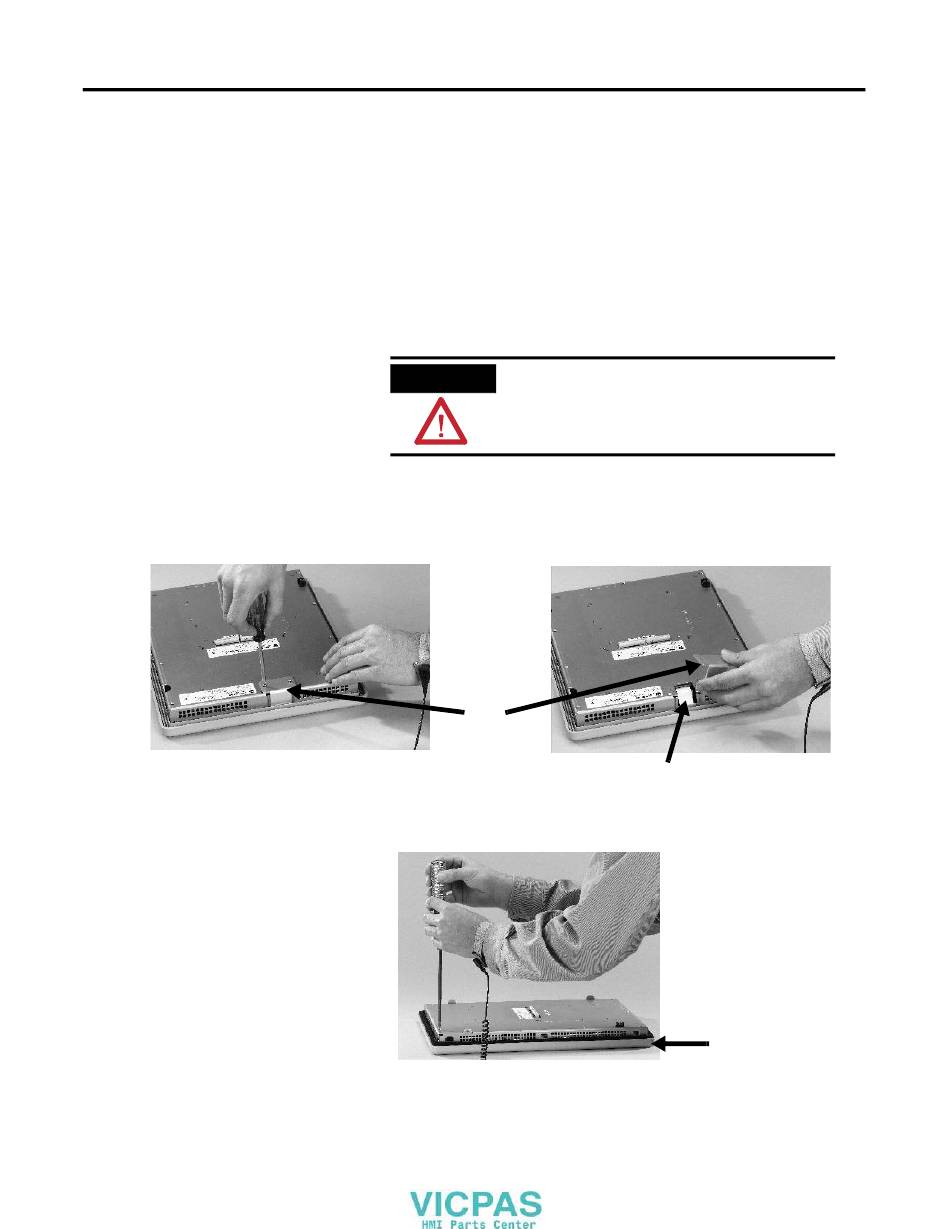

3. On touch-screen-only terminals, remove the two screws that
secure the small metal plate to the back of the display module.
4. Disconnect the touch screen connector.
Plate
5. Remove the screws from the back of the display module.
The number of screws varies for each terminal type.
Installing and Replacing Components
Touch Screen Connector
Display Module Bezel
Chapter 5
83
