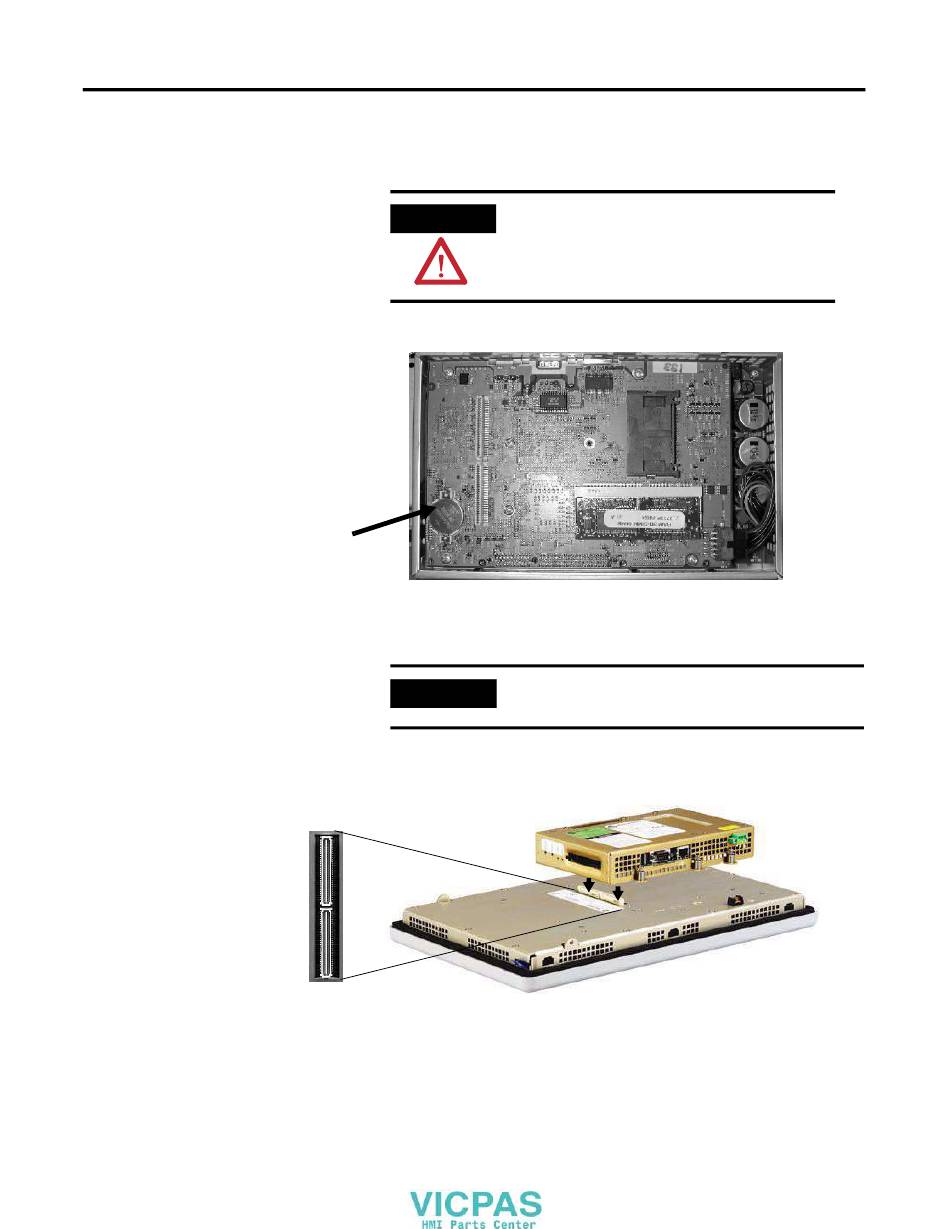

Remove battery by lifting up the
edge indicated by arrow.
Publication 2711PC-UM001A-EN-P - March 2009
4. Carefully lift the logic module away from the terminal and flip
over to expose the circuit board.
Wear a properly grounded ESD wristband before
ATTENTION
touching any of the electronic components in the
logic module.
5. Locate the battery on the circuit board.
6. Remove the battery by lifting up the side of the battery.
7. Insert the new battery.
Use only catalog number 2711P-RY2032 to replace the
IMPORTANT
battery.
8. Attach the logic module by aligning the two connectors on the
bottom of the module with the connectors on the terminal.
9. Push down on the logic module until firmly seated.
10. Tighten the six captive screws that secure the logic module to a
torque of 0.58 N•m (5...7 lb•in).
Installing and Replacing Components Chapter 5
77
