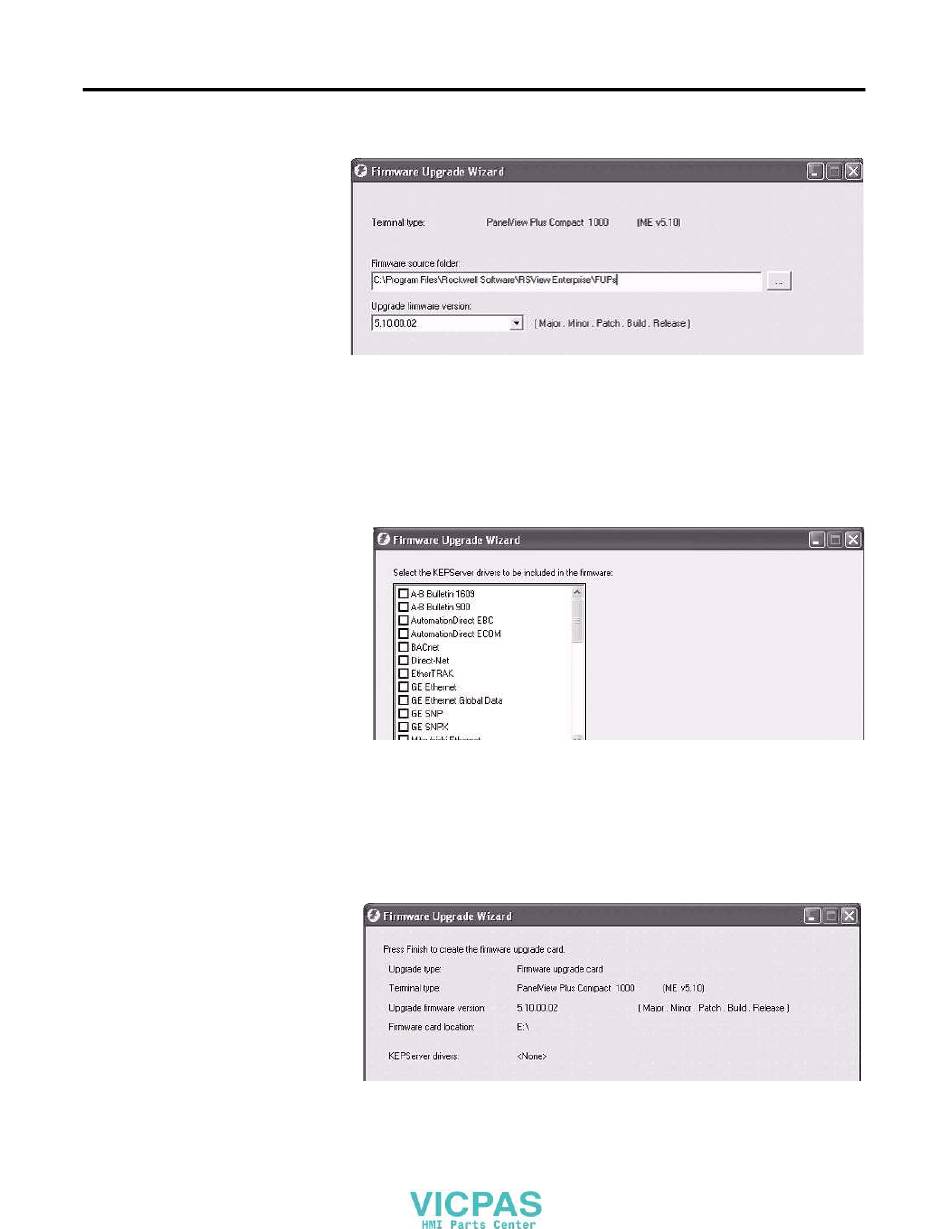

3. From the Firmware source folder list, browse to the location of
the firmware files.
The default location is shown.
4. From the Upgrade firmware version list, select the firmware
version for the upgrade, then press Next.
5. Select the appropriate KEPServer drivers, then click Next.
If no KEPServer drivers are needed, just click Next.
A dialog box shows the target terminal type, upgrade firmware
version, and KEPServer drivers that the CompactFlash card
firmware will set.
Upgrading Firmware Chapter 7
97
