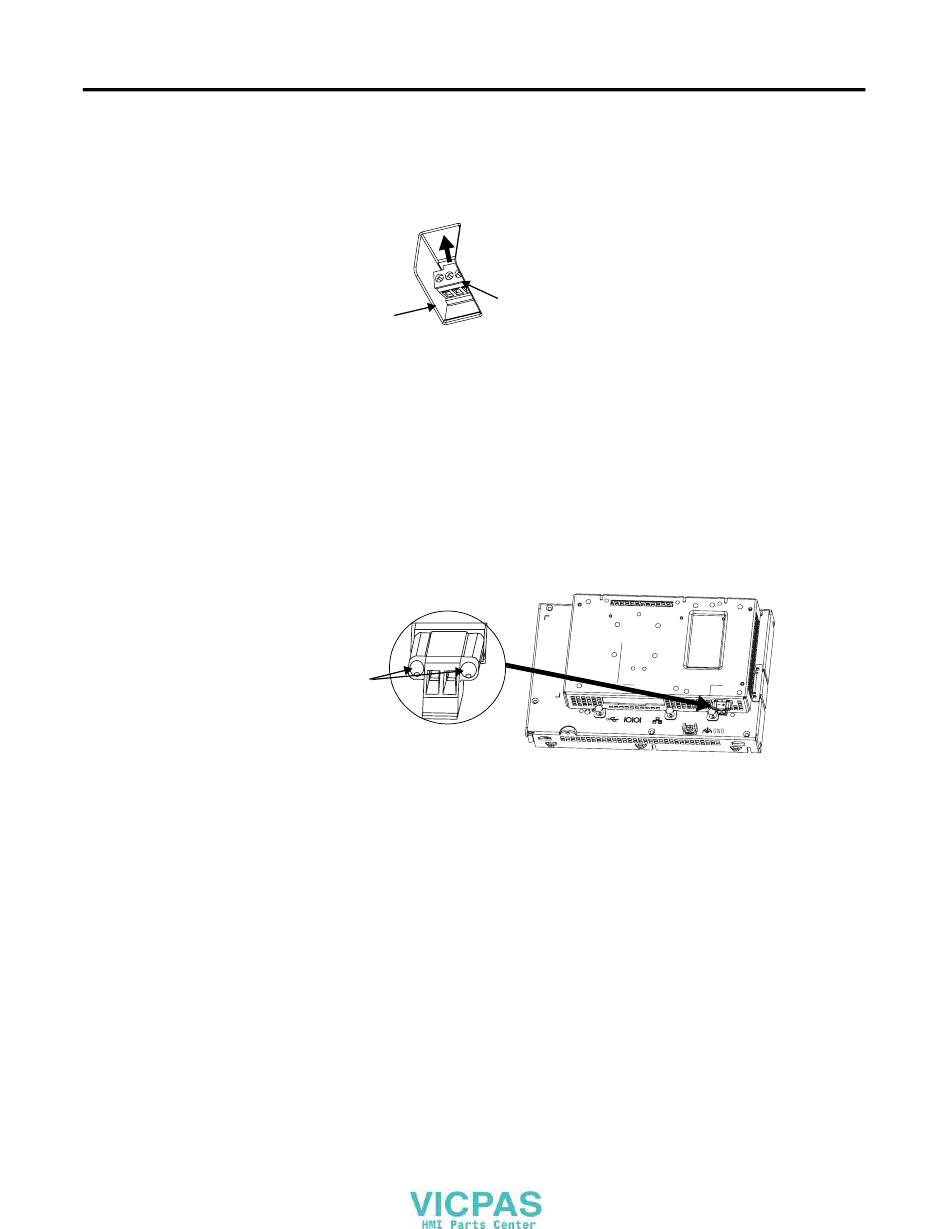

Follow these steps to replace the terminal block.
1. Press the terminal block base in first with block leaning
outward.
2. Gently push the top of the terminal block back to the vertical
position to snap in locking tab.
PanelView Plus Compact 1000 Terminals
Follow these steps to remove the terminal block.
1. Loosen the two screws that secure the terminal block.
2. Gently pull the terminal block away from the connector.
Follow these steps to install the terminal block.
1. Reattach the terminal block to the connector until seated.
2. Tighten the two screws that secure the terminal block to the
connector.
Connecting Power Chapter 3
