Font Linking

List of fonts loaded on
the terminal.
Shows all fonts loaded on the terminal except the
base font. Select the name of the font you are
linking to the base font. Select the Add Fonts button
to link the font file for the selected font to the base
font. You will return to the Linked Fonts screen.
Add Linked Font
Courier New
MS Mincho
Tahoma
Times New Roman
Publication 2711PC-UM001A-EN-P - March 2009

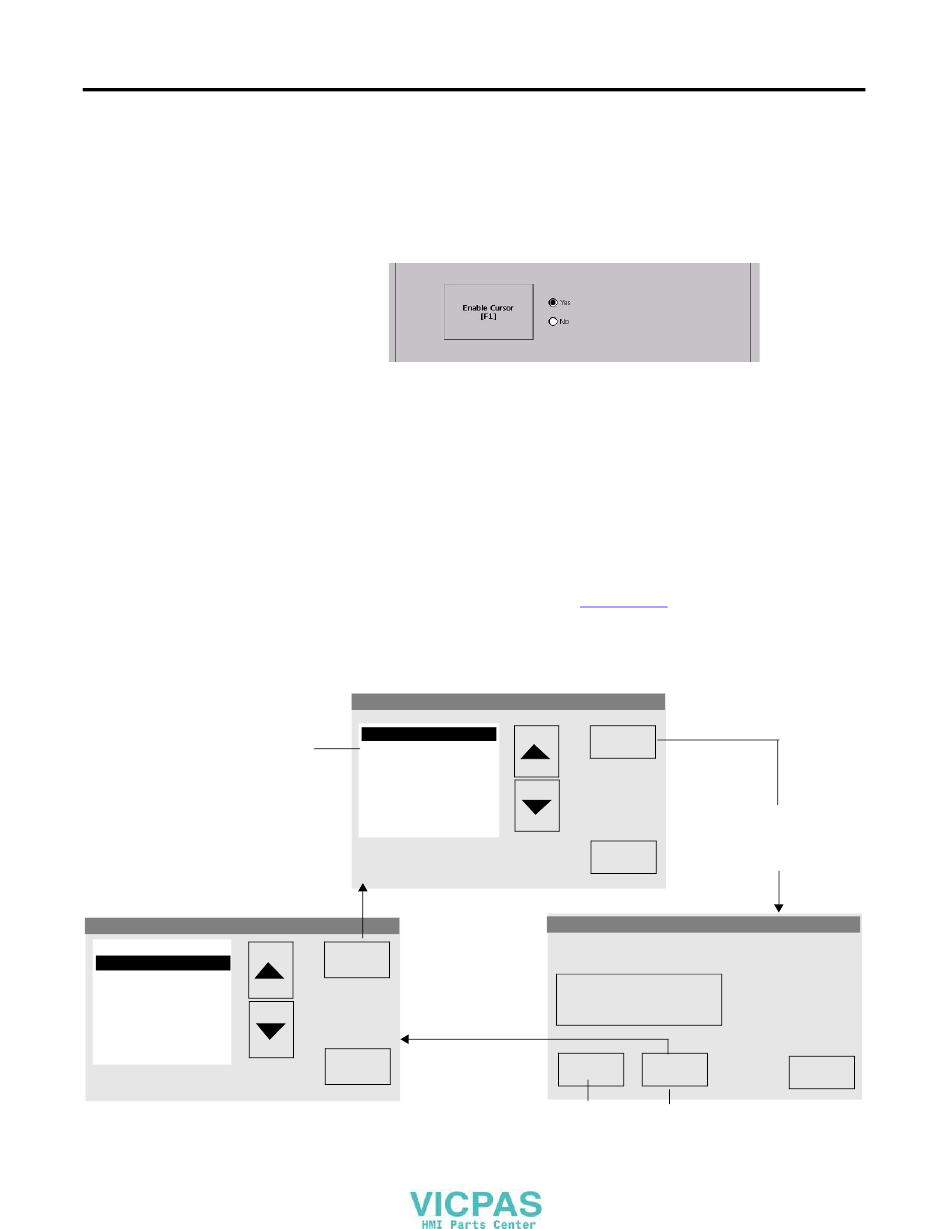

Enable or Disable the Screen Cursor
The terminal has a screen cursor that you can enable or disable.
1. Select Terminal Settings>Display>Cursor.
2. Press the Enable Cursor button to enable or disable the cursor.
3. Press OK to exit and return to Terminal Settings.
Font linking lets you run a translated application on the terminal by
linking a font file to the base font, for example, linking a Chinese font
file to the base font Arial.
For more details on pre-installed terminal fonts and additional fonts
available for downloading, see
To link a font file to the base font on the terminal, select Terminal
Settings>Font Linking.
Select Base Font
Arial
Courier New
Tahoma
Times New Roman
Add Fonts
[F1]
Close
[F8]
Configuring the Terminal
Appendix C.
Show Links
[F1]
Shows the location and name of the
font that is linked to the base font
used by the terminal. If a file is not
Close
linked, box will be empty.
[F8]
Linked Font
Base font = Arial
Link:
MS Mincho
External storage 1\MSMINCHO.TTC
Edit Link
Delete Link
[F2]
[F1]
Edits the link by letting you add the linked
Deletes linked
file to a font loaded on the terminal.
font file (if any).
Chapter 4
Close
[F8]
53
