Replacing the Backlight

Publication 2711PC-UM001A-EN-P - March 2009
This section shows how to replace the backlight in the 1000 terminal.
The replacement backlight is catalog number 2711P-RL10C2.
The backlight contains mercury. At the end of its life, the
IMPORTANT
backlight should be collected separately from unsorted
municipal waste.

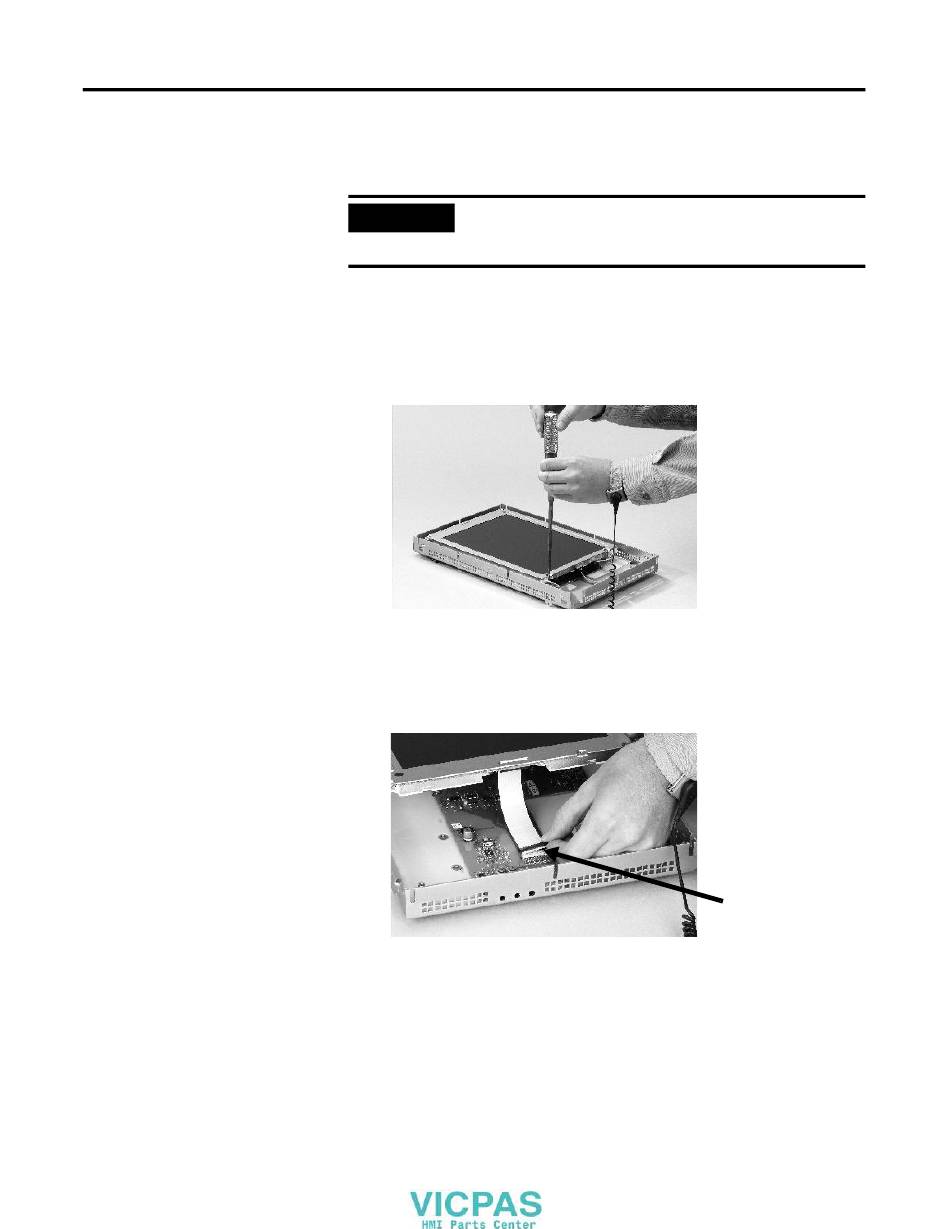

Follow these steps to replace the backlight.
1. Disconnect power from the terminal.
2. Remove the display module bezel.
3. Remove the four screws that secure the LCD display.
4. Lift the LCD display and detach the display connector from the
circuit board.
The circuit board layout may vary for each terminal model.
The location of the connector varies by model.
5. Detach the backlight connector from the circuit board.
Installing and Replacing Components
Display
Connector
Chapter 5
79
