Chapter 6 Terminal Connections
92

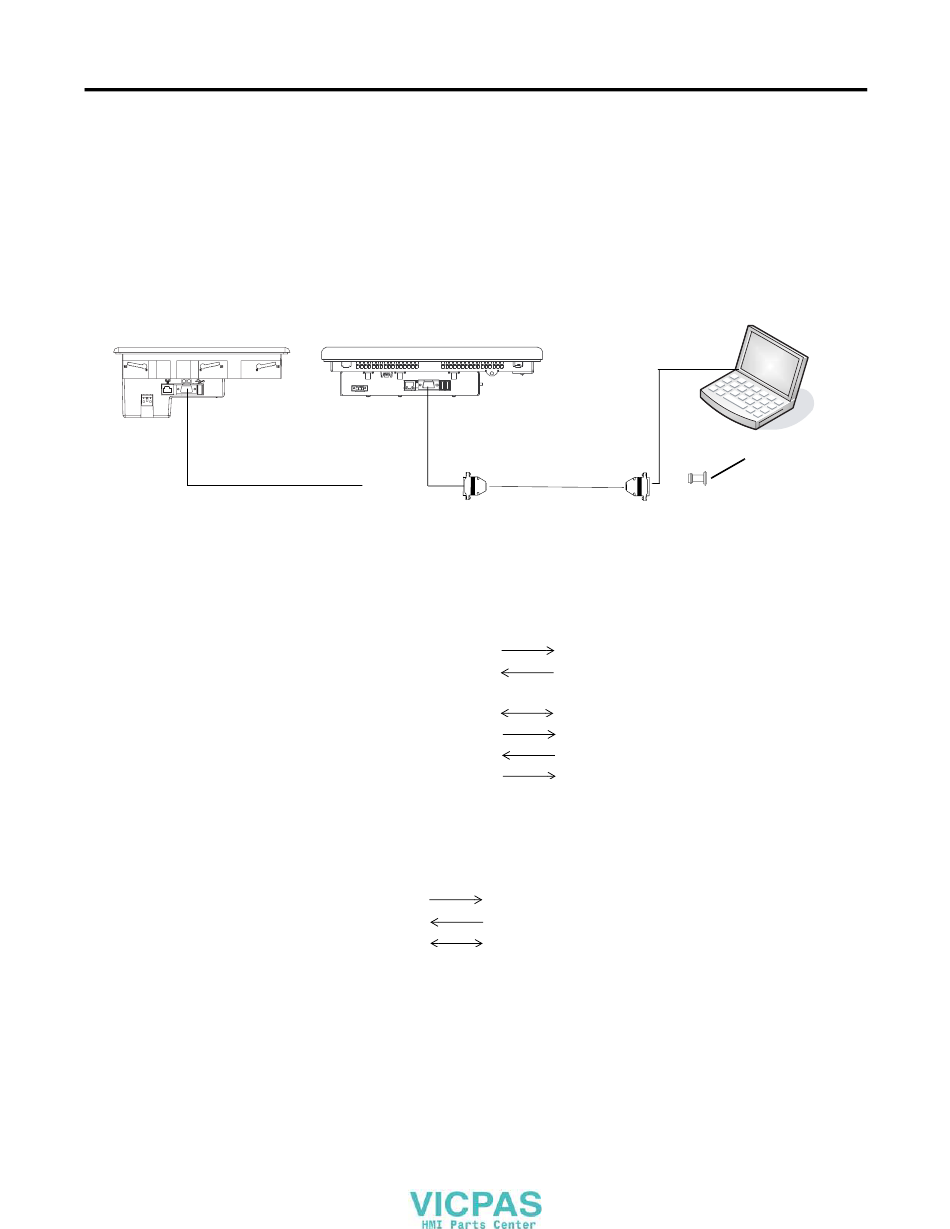

Computer Connections
The RS-232 serial port on the base-configured unit of the terminals
supports:
• application uploads/downloads using a direct connection.
• printing.
PanelView Plus Compact Terminals
Available Cables
Cat. No. 2711-NC13, 5 m (16.4 ft)
Cat. No. 2711-NC14, 10 m (32.7 ft)
Cat. No. 2706-NC13, 3 m (10 ft)
RS-232 Port
PanelView Port (DCE)
9-pin male
1 NC
2
3
4 NC
5
6 (pulled high to +12V)
7
8
9 NC
Upload/Download Cable without Hardware Handshaking
PanelView Printer Port
(DCE)
9-pin male
2
RXD
3
TXD
5
COM
Computer Port (DTE)
with Handshaking
9-pin male
1 DCD
2 RXD (Data Receive)
RXD
3 TXD (Data Transmit)
TXD
4
5
COM
COM
6 DSR
DSR
7 RTS
RTS
8
CTS
CTS
9 NC
Computer Port
(DTE)
9-pin 25-pin
2 3
3 2
5 7
Publication 2711PC-UM001A-EN-P - March 2009
Computer
25-pin to 9-pin
Adapter (if required)
