Publication 2711PC-UM001A-EN-P - March 2009

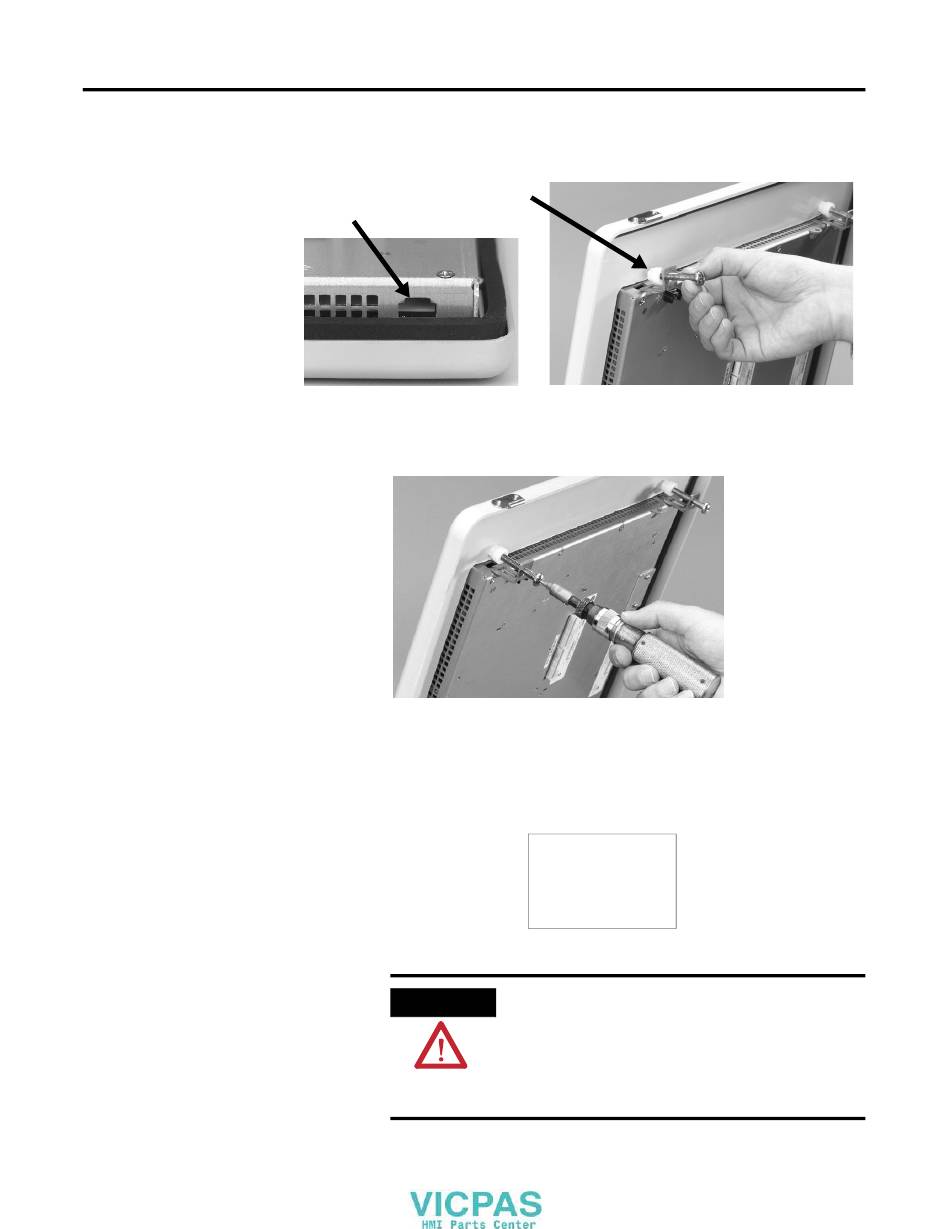

4. Slide the ends of the mounting clips into the slots on terminal.
Mounting Clip
Mounting Clip Slot
5. Tighten the mounting clip screws by hand until the gasket seal
contacts the mounting surface uniformly.
6. Tighten the mounting clips screws to a torque of 0.90...1.1 N•m
(8...10 lb•in) by using the specified sequence, making sure not
to overtighten.
ATTENTION
Installing the Terminal
1 4
Torque Sequence
3 2
Tighten the mounting clips to the specified torque to
provide a proper seal and to prevent damage to the
product. Allen-Bradley assumes no responsibility for
water or chemical damage to the product or other
equipment within the enclosure because of improper
installation.
Chapter 2
21
