Chapter 3 Connecting Power
Removing and Installing the
Power Terminal Block
24
The terminals are shipped with the power terminal block installed.
You can remove the terminal block for ease of installation, wiring, and
maintenance.
Explosion Hazard
WARNING
Substitution of components may impair suitability for hazardous
locations.
Do not disconnect equipment unless power has been switched
off and area is known to be nonhazardous.
Do not connect or disconnect components unless power has
been switched off.
All wiring must comply with N.E.C. articles 501, 502, 503,
and/or C.E.C. section 18-1J2 as appropriate.
Peripheral equipment must be suitable for the location in which
it is used.
PanelView Plus Compact 400 and 600 Terminals
Do not force terminal blocks into connectors to prevent
ATTENTION
potential damage to terminal.

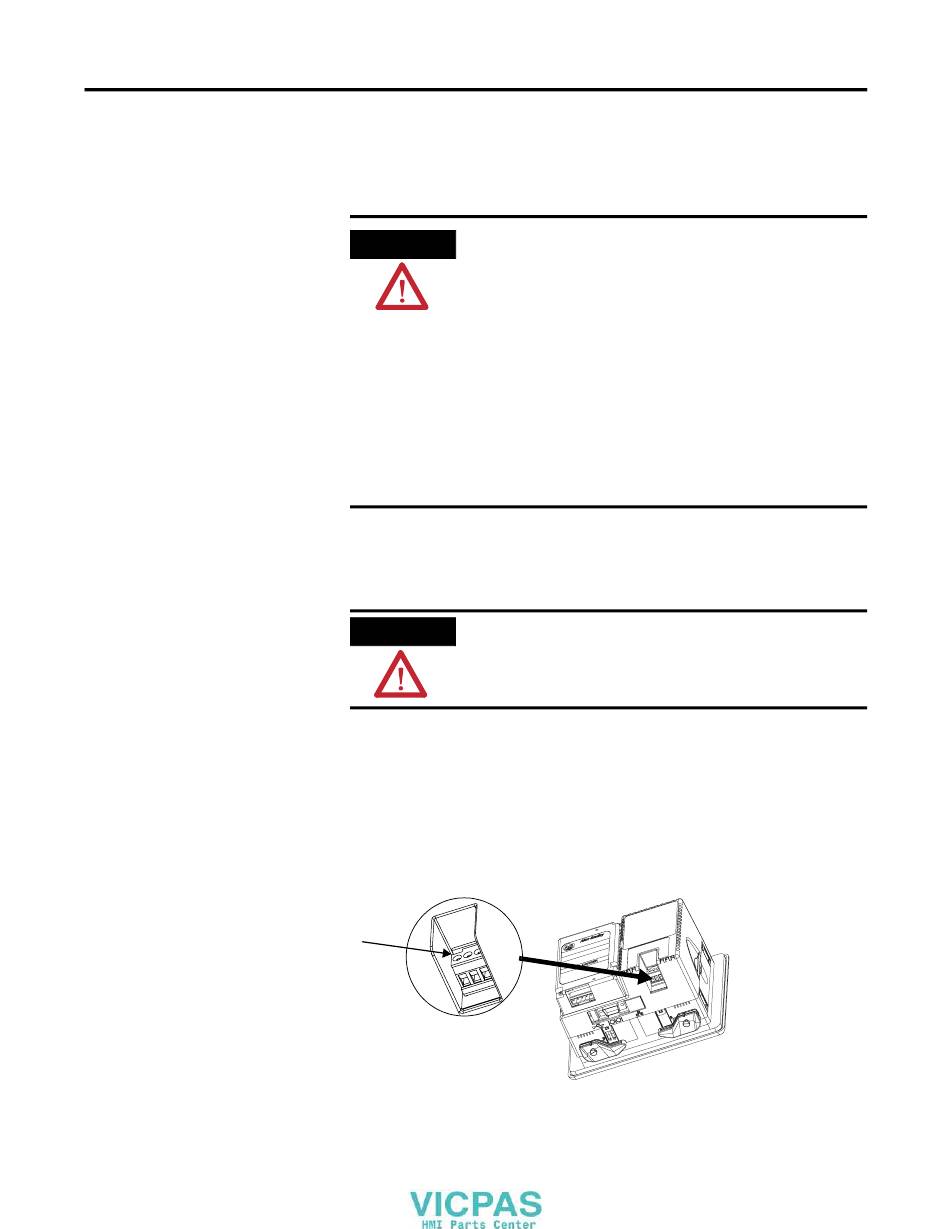

Follows these steps to remove the terminal block in the PanelView
400 and 600 terminals.
1. Insert the tip of small, flat-blade, screwdriver into the terminal
block access slot.
2. Gently pry the terminal block away from terminal to release the
locking mechanism.
Publication 2711PC-UM001A-EN-P - March 2009
