Chapter 1 Overview

Software Support

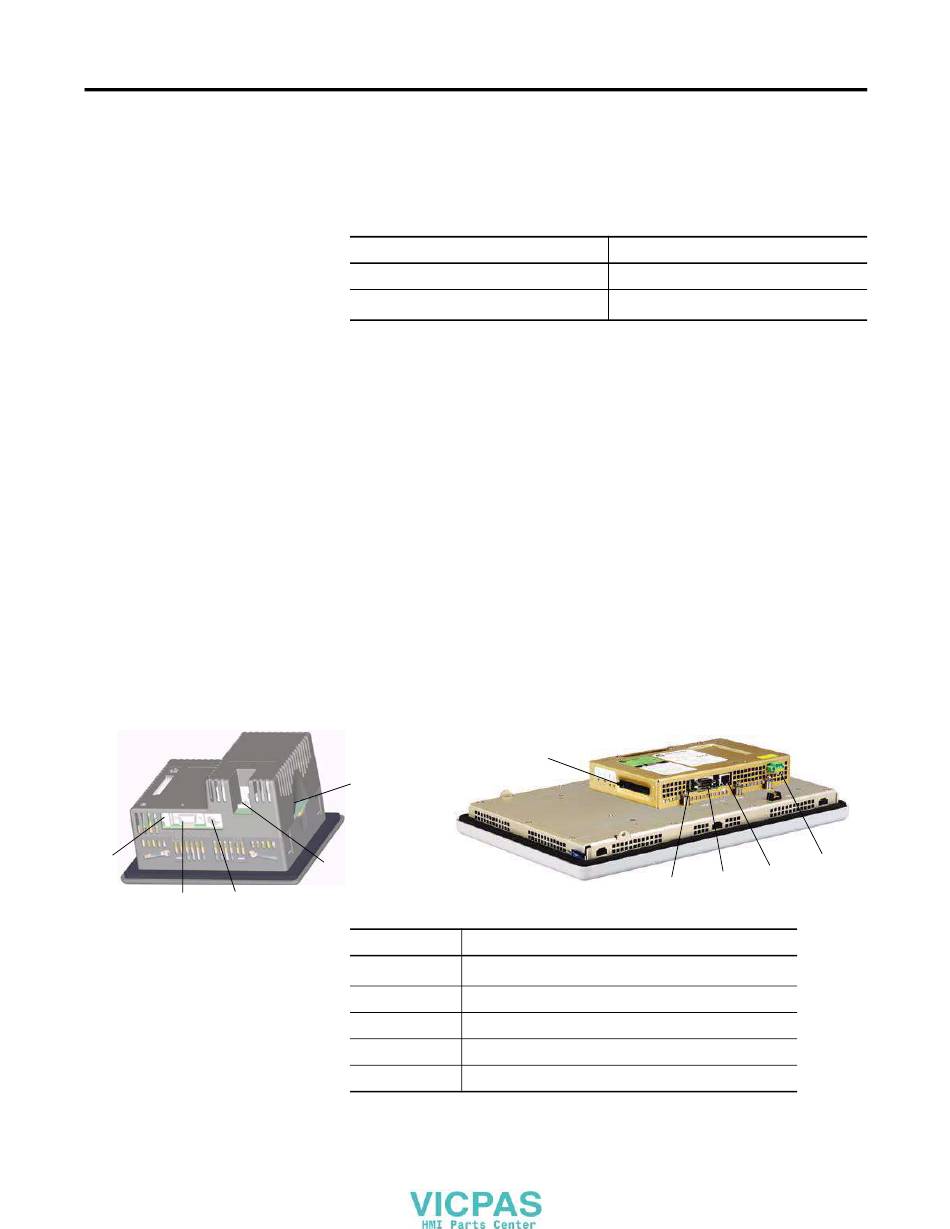

Hardware Configurations

400 and 600 Configurations
1
3
2
10
Each terminal is preloaded with FactoryTalk View Machine Edition
runtime and configuration software that does not require activation.
Applications for the compact terminals are created using FactoryTalk
View Studio software.
Software Requirements
FactoryTalk View Studio
(1)
RSLinx Enterprise
(1)
RSLinx Enterprise software is provided with FactoryTalk View Studio. During software installation, you are
prompted to install RSLinx Enterprise software.
Compact Machine Edition applications are restricted to a subset of the
functions allowed on the PanelView Plus terminals.
• Maximum of 25 displays
• Maximum of 200 alarm messages
• Maximum screen resolution of 640 x 480 (VGA)
• one connection or shortcut to a single controller using either
RSLinx Enterprise 5.20 or KEPServer Enterprise.
• Serial and Ethernet communication only.
If using RSLinx Enterprise, only serial-DF1, serial-DH485 and
Ethernet drivers are supported.
The terminal configurations are fixed and do not support
communication modules. The 1000 touch terminal has a fixed display
module and logic module that cannot be replaced.
1000 Configuration
5
4
Item Description
1
USB port
2 RS-232 serial port
3 10/100BaseT Ethernet port
4 Power input, 24V DC
5 CompactFlash Type 1 card slot
(1)
The 400 and 600 models have one USB port; the 1000 model have two USB ports.
Version
5.1 or later
5.20 or later
5
1
(1)
Publication 2711PC-UM001A-EN-P - March 2009
