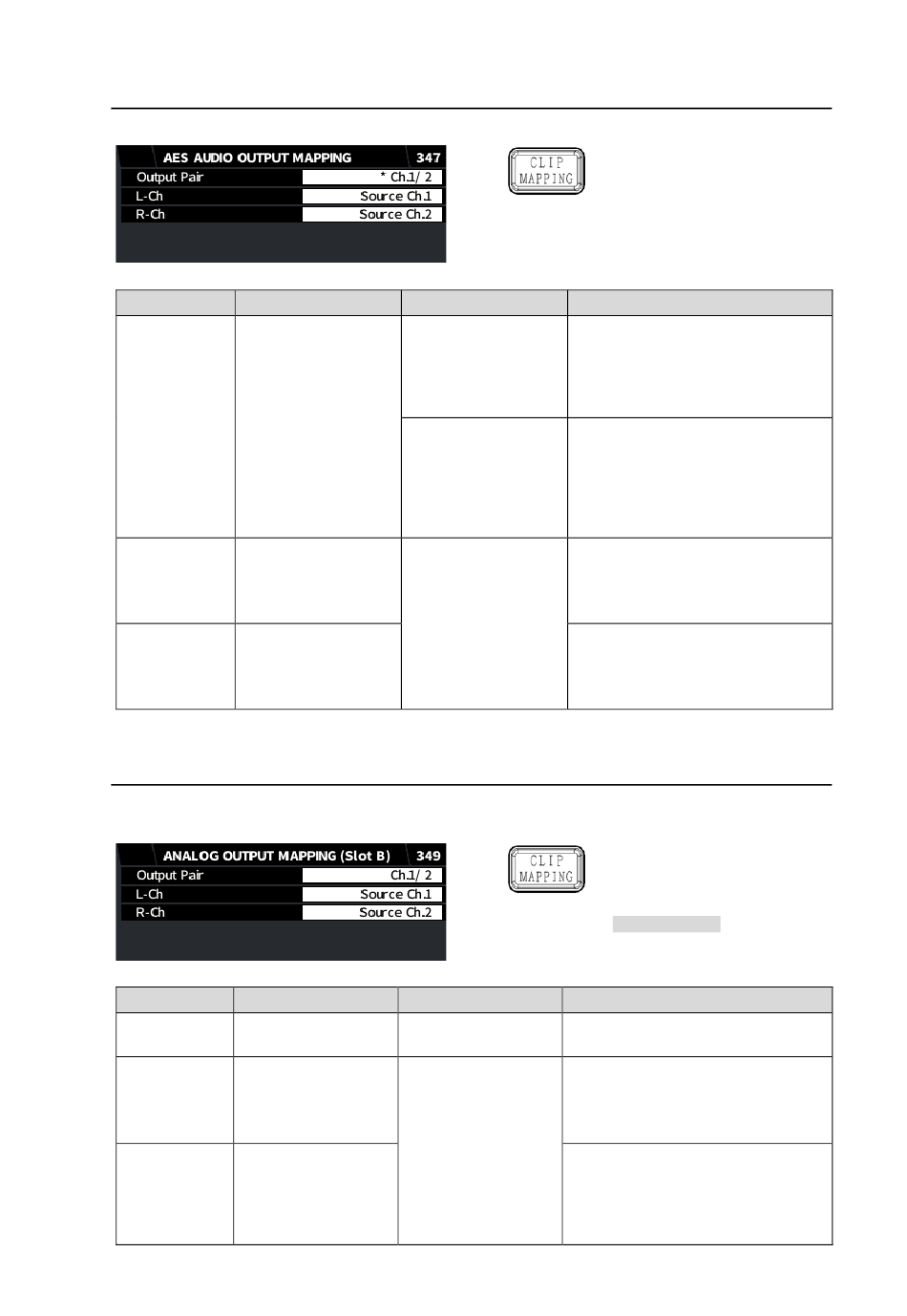

6-12. AES AUDIO OUTPUT MAPPING

Allows you to select AES output audio from the same audio sources as those for SDI output.
Item
Output Pair
Ch.1: Source Ch.1
Ch.3: Source Ch.3
L-Ch
Ch.5: Source Ch.5
Ch.7: Source Ch.7
Ch.2: Source Ch.2
Ch.4: Source Ch.4
R-Ch
Ch.6: Source Ch.6
Ch.8: Source Ch.8

6-13. ANALOG AUDIO OUTPUT MAPPING

Allows you to select analog output audio from the same audio sources as those for SDI output.
Item
Output Pair
Ch1: Source Ch.1
L-Ch
Ch3: Source Ch.3
Ch2: Source Ch.2
R-Ch
Ch4: Source Ch.4
Default Setting
Ch.1/2-7/8
-
(OP) Ch.1/ 2-7/8
Source Ch.1-32
500Hz Tone
1kHz Tone
Silence
Downmix 1_L
Downmix 1_R
Downmix 2_L
Downmix 2_R
Mono Sum 1-16
Default Setting
Ch.1/2
-
Ch.3/4
Source Ch.1-32
500Hz Tone
1kHz Tone
Silence
Downmix 1_L
Downmix 1_R
Downmix 2_L
Downmix 2_R
Mono Sum 1-16
98
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1 / EMB1)
Description
Selects an output channel pair.
If an asterisk (*) is displayed in
front of channels, they are used
as input and cannot be used for
output.
Selects an output channel pair.
(FA-96AES-UBL required)
If an asterisk (*) is displayed in
front of channels, they are used
as input and cannot be used for
output.
Selects the L channel source.
Selects the R channel source.
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1 / EMB1)
Required FA-96ANA-AUD
option
Description
Selects an output channel pair.
Selects the L channel source.
Selects the R channel source.
