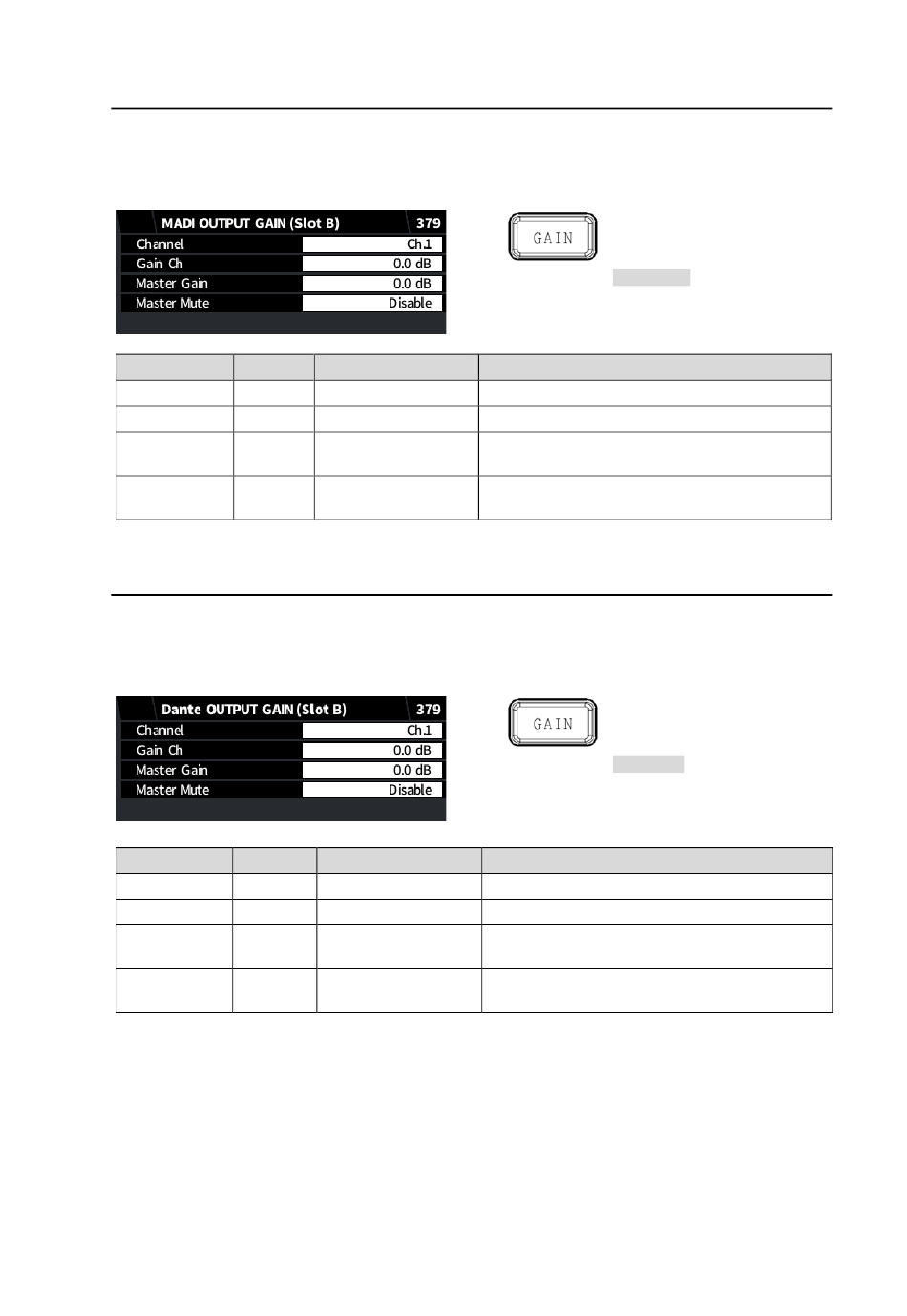

6-22. MADI OUTPUT GAIN

Allows you to adjust audio channel gain for MADI output (FA-96MADI required).
Allowable gain adjustment ranges from -20 dB to 20 dB with Master Gain and individual channel
Gain. Gain values exceeding these limits are clipped and set to the respective limit value.
Item
Default
Channel
-
Gain Ch
0.0dB
Master Gain
0.0dB
Master Mute
Disable

6-23. Dante OUTPUT GAIN

Allows you to adjust Dante audio output gain.
Allowable gain adjustment ranges from -20 dB to 20 dB with Master Gain and individual channel
Gain. Gain values exceeding these limits are clipped and set to the respective limit value.
Item
Default
Channel
-
Gain Ch
0.0dB
Master Gain
0.0dB
Master Mute
Disable
Setting
Ch.1-32
Selects a MADI audio channel.
-20.0dB to +20.0dB
Sets the gain for the selected audio channel.
Sets the gain offset for all MADI audio
-20.0dB to +20.0dB
channels (Ch. 1-32).
Disable
Enable: Mutes (sets to silent) all 32 audio
Enable
output channels.
Setting
Ch.1-32
Selects an analog audio channel.
-20.0dB to +20.0dB
Sets the gain for the selected audio channel.
Sets the gain offset for all Dante audio
-20.0dB to +20.0dB
channels (Ch. 1-32).
Disable
Enable: Mutes (sets to silent) all Dante audio
Enable
output channels (Ch. 1-32).
103
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1 / EMB1)
Required
FA-96MADI
option
Description
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1 / EMB1)
Required
FA-96DNT
option
Description
