12-2-11. LTC OUT Select (FA-96DIN4-CBL)

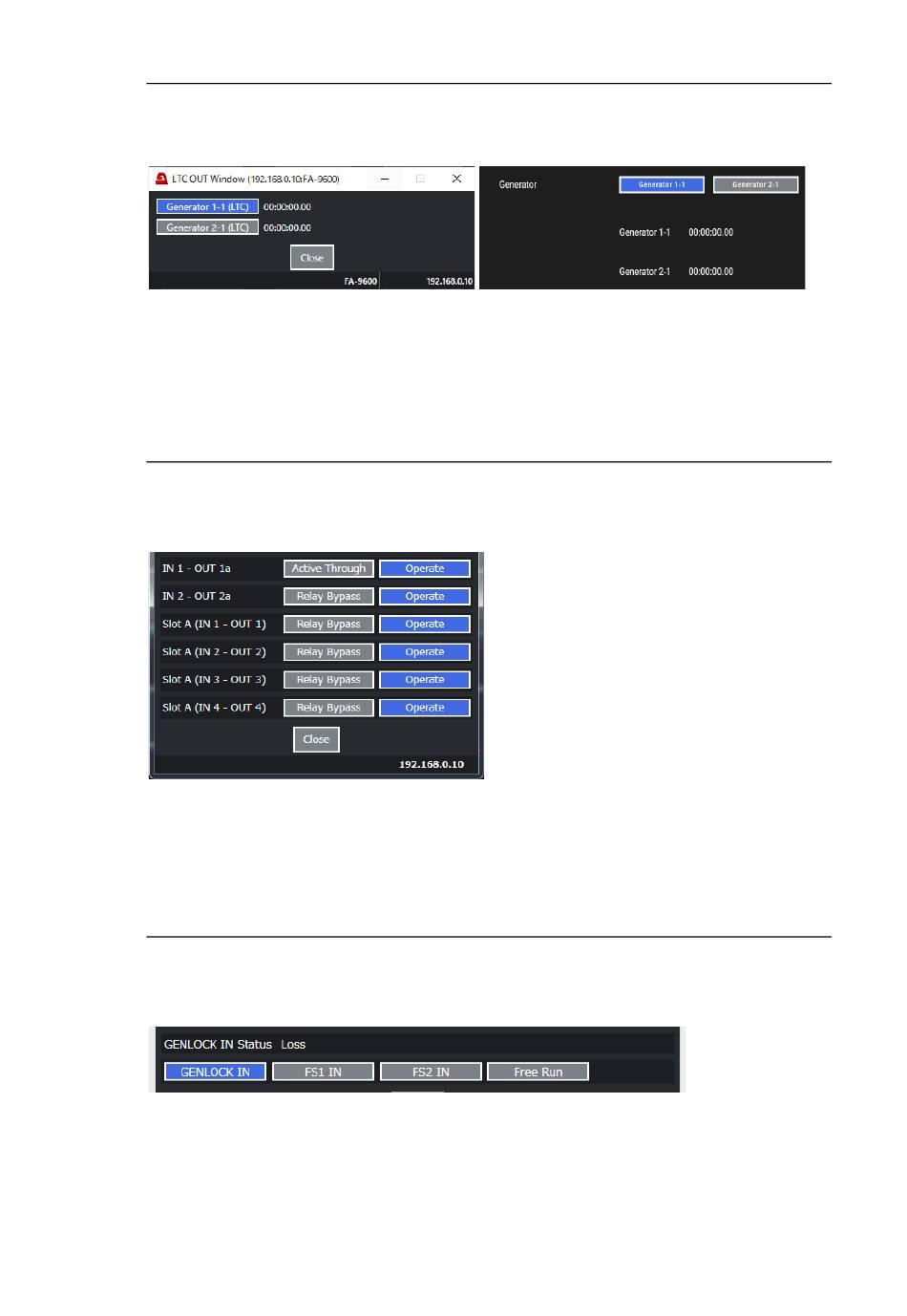

Click LTC OUT Select in the Video Block to display the menu as shown below.
[Windows GUI] [Web GUI]
The LTC OUT on FA-96DIN4-CBL outputs an internally generated timecode.
This menu selects which timecode generator to be used.
If LTC OUT is unavailable due to format conversion, a message, "Cannot use with Generator",
is displayed on the menu.

12-2-12. Bypass

Click Bypass in the Video Block to display the menu as shown below.
[Windows GUI]
[Web GUI]
Selecting Bypass (or Active Through for IN 1 – OUT 1a) passes input through to output
without processing.
Slot A (IN 1) to Slot A (IN 4) require FA-96EX3G44-R.

12-2-13. Reference Select

Click Reference Select in the Video Block to display the menu as shown below.
[Windows GUI]
[Web GUI]
Allows you to select the reference.
GENLOCK IN: External reference signal input to GENLOCK IN.
FS1 IN, FS2 IN: FS input signal selected under Input Select
Free Run: System clock
