FOR-A FA-9600 Operation Manual page 152

12-2-5. Color Processor 1, 2
Click Color Processor 1 or Color Processor 2 in the Video Block menu.
<Simultaneous 4K/HD mode>
<Dual HD mode>

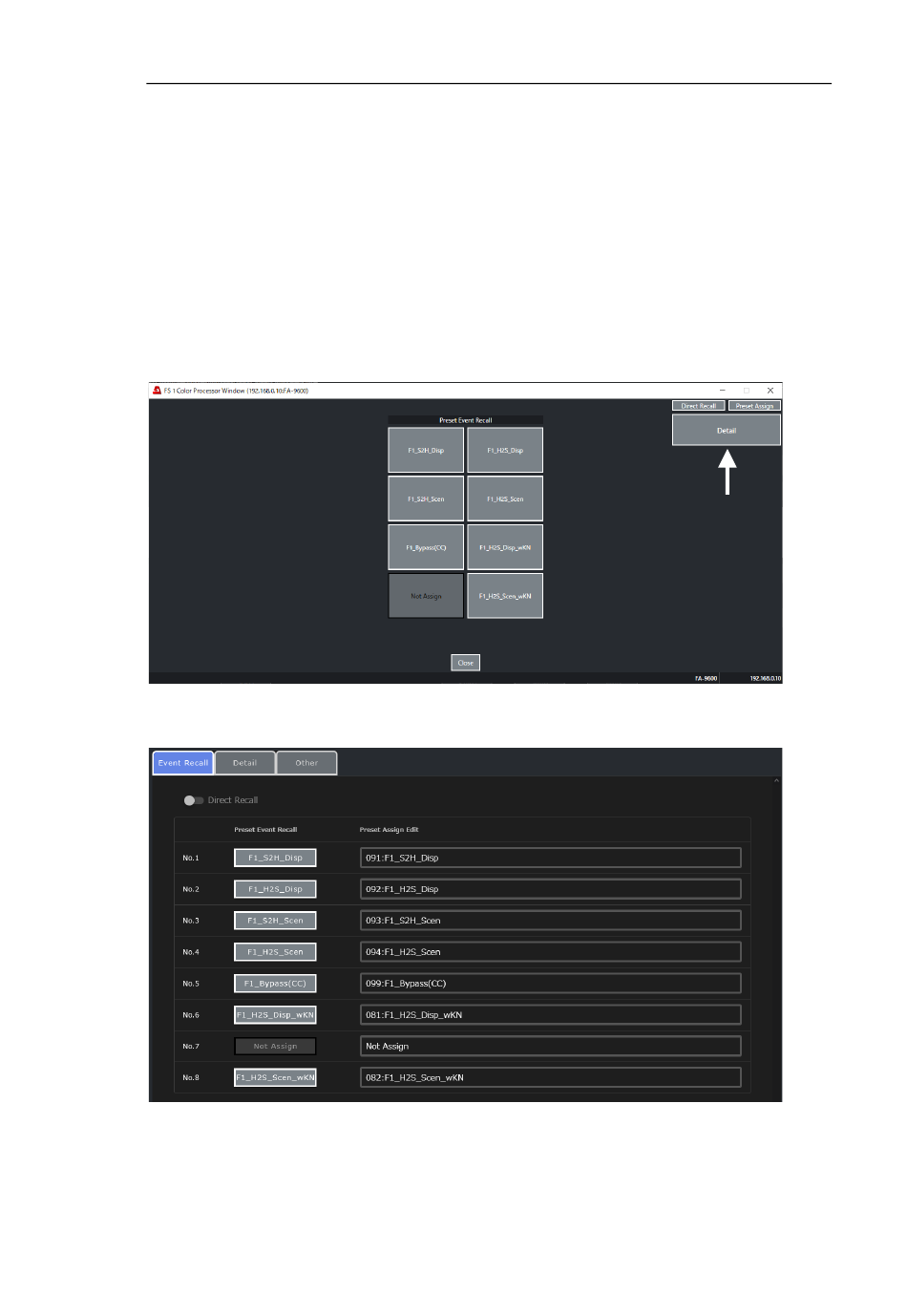

The Preset Event Recall screen is displayed. Preset Event buttons are provided and allow
you to instantly load complex color space and dynamic range settings simply by pressing these
buttons. See Sec. 4-1. "Color Processer: SDR<->HLG (with Preset Events)" for the details.
Press Detail in the Preset Event Recall screen to display the detailed menu page. (This page
directly appear in some cases without showing Preset Event Recall. In such cases, to display
the Preset Event Recall screen, press Preset in the following menu page.)
[Windows GUI]
[Web GUI] (Scrolling up and down to go through the page.)
A color correction flow will be displayed in the top. Click a block in the flow diagram to display
menu parameters. The selected block is underlined in yellow. See Sec. 12-2-5-1 and later
sections for details on menu parameters.
152
