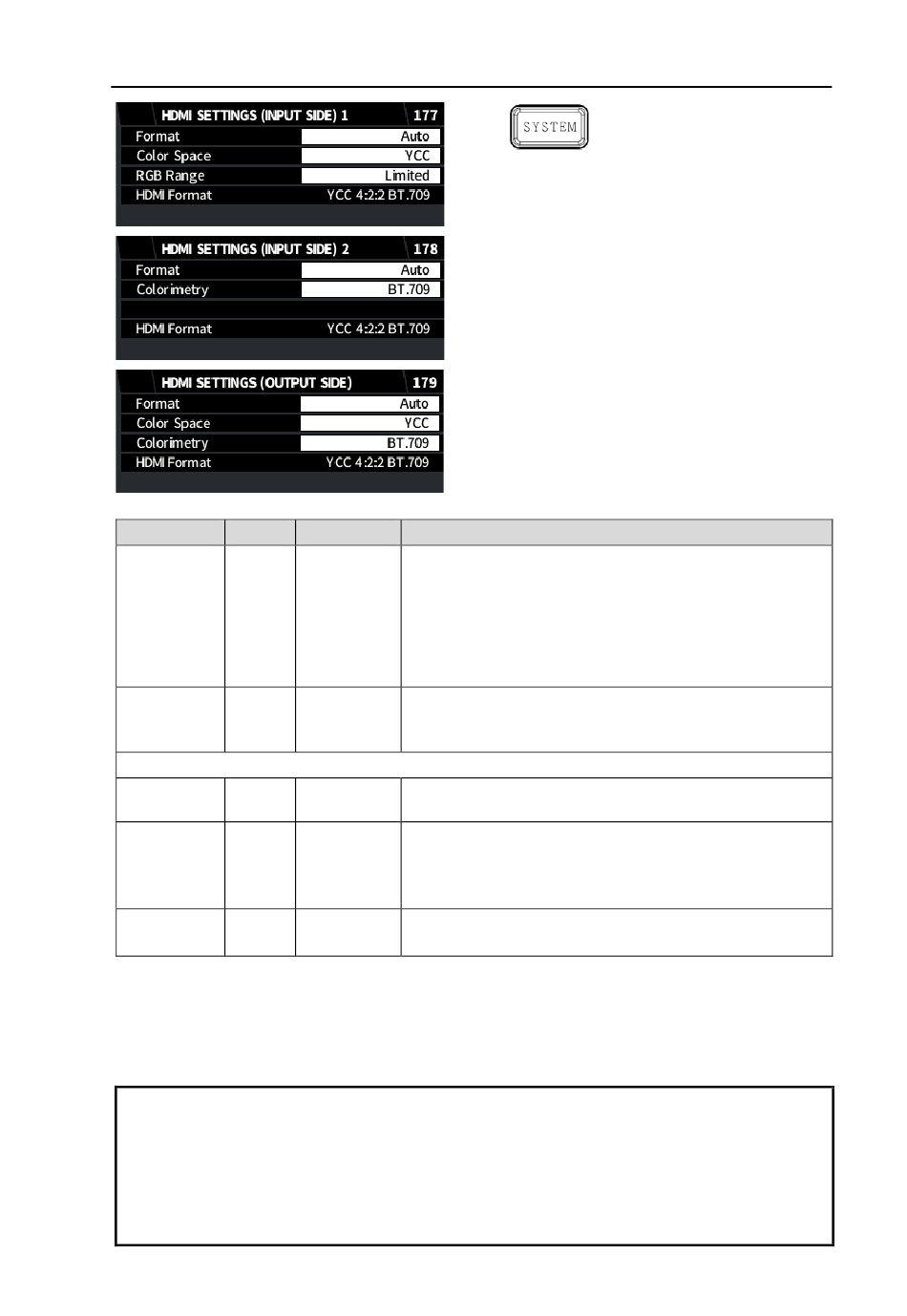

5-42. HDMI SETTINGS

Item Default
Format Auto
HDMI
-
Format
If Format is set to Manual, set the following items.
Color Space YCC
RGB Range Limited
Colorimetry BT.709
HDMI output video can be selected in the OUTPUT SELECT menu. (See Sec.5-19.)
HDMI output audio channels can be selected in the HDMI AUDIO OUTPUT SELECT menu. (See
Sec. 6-11.)
IMPORTANT
In Simultaneous 4K/HD or 3D-LUT mode with FA-964K, FA-9600 prioritizes 4K video than HD
video through EDID information if an HDMI device (such as a PC) that provides video signals to
FA-9600 supports 4K. To use video resolution other than 4K in such cases, specify the desired
video resolution in the HDMI device.
If the HDMI device is a Windows PC, video resolution of HDMI images may not be changed only
by "Display resolution" setting on the Windows 10. In such cases, also change "Refresh rate", or
select from the mode list in Properties of the display adapter. Also verify that the selected signal
format under Resolution in the "Advanced display settings" is supported by FA-9600.
Setting
Selects the format setting mode for HDMI signal.
Auto: Automatic setting
For input, obtains format from input signal.
Auto
For output, obtains format from EDID data of the
Manual
connecting device (monitor, etc.).
Default output format: YCC BT.709
Manual: Manual setting
Displays the HDMI signal format.
－
Unsupported formats are displayed with an asterisk (*)
at the beginning.
YCC Selects an HDMI color mode between YCC (YCbCr)
RGB and RGB.
If RGB (8-bit for each) is set, selects the data range for
HDMI input. HDMI output always uses Limited Range.
Limited
Full Limited: Limited Range between 16-235.
Full: Full Range between 0-255.
Selects a color gamut.
BT.2020
BT.709
(SD-SDI signals are processed using BT.601.)
83
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1)
