12-3-5. Output Mapping

Click Output Mapping in the Audio Block to display the following menu.
For FS1 SDI embedded audio, click Embedded 1.
For FS2 SDI embedded audio, click Embedded 2.
For AES audio of standard and FA-96AES-UBLC option, click AES.
For FA-96AES-UBL, FA-96ANA-AUD, FA-96MADI or FA-96DNT, click Option B.
[Windows GUI]
Item
FS 1 Ch.1- 16
FS 2 Ch.1- 16
AES Ch.1- 8
Option B(AES)Ch.1-8
(FA-96AES-UBL)
Option B(Analog) Ch.1-4
(FA-96ANA-AUD)
Option B(MADI) Ch.1-32
(FA-96MADI)
Option B(Dante) Ch.1-32
(FA-96DNT)
(*1)
Channel names shown in parentheses after channel numbers indicate original audio input
names. Sec. 12-3-2. "Source Select."

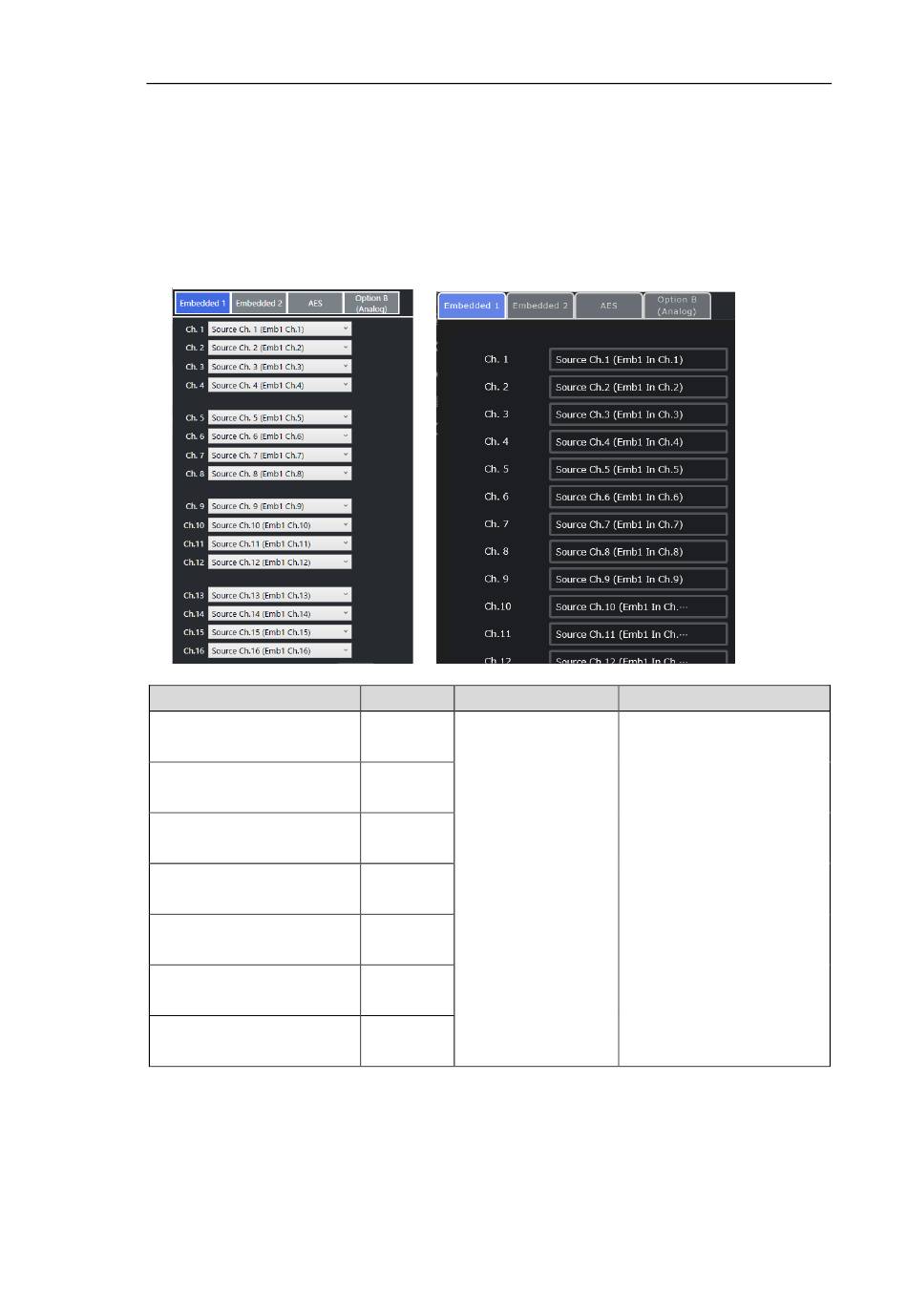

[Web GUI] (Scrolling up and down to go through the page.)
Default Setting
Source
Ch.1-16
Source
Ch.17-32
Source Ch.1-32
Source
500Hz Tone
Ch.1-8
1kHz Tone
Silence
Source
Down Mix 1_L
Ch.1-8
Down Mix 1_R
Down Mix 2_L
Source
Down Mix 2_R
Ch.1-4
Mono Sum 1-16
Source
Ch.1-32
Source
Ch.1-32
189
Description
Selects an audio source
for each channel.
(*1)
Source Ch.1-32:
32 audio sources
1kHz / 500Hz Tone:
Test signals
Silence: Silent signal
Down Mix 1L/1R, 2L/2R:
2 downmix outputs
Mono Sum 1-16:
16 Mono Sum mix outputs
