Page 1 OPERATION MANUAL FA-9600 Frame Synchronizer FA-96PS FA-964K FA-96UDC FA-96AHDR/AHDR2 FA-96AES-UBL/-UBLC FA-96ANA-AUD FA-96MADI FA-96DNT FA-96EX3G44-R FA-96EX12G06 FA-96SFPC4 FA-96GPI/DB9-CBL FA-96DIN4-CBL Edition – Rev. 3 (Software Ver. 5.00)
Page 2 Edition Revision History Edit. Rev. Date Description Section 2017/09/15 Supported 1080/59.94i, 1080/59.94p and 2160/59.94p. 2017/09/25 Supported multi-format video signals. Supported HDMI, etc. 2017/11/17 Added FA-96DIN4-CBL. Revised HDR related menus. 5-4 to 5-8 10-2-5 2017/12/22 Corrected GPI IN circuits. 3-3, 3-4 Revised Loss Mode description.
Page 3 5-46, etc. TV Logic WonderLookPro support (3D-LUT mode) 4-7, etc. Frequency deviation adjustment in free-run mode. Web GUI covered almost all of FA-9600 menus. Merged descriptions of Web and Windows GUIs 2021/06/04 Added SNMP video format information examples. Corrected Ethernet spec.
Page 4 Precautions Important Safety Warnings [Power] Operate unit only at the specified supply voltage. Caution Disconnect the power cord via the power plug only. Do not pull on the cable portion. Do not place or drop heavy or sharp-edged objects on the power cord. A damaged cord can cause fire or electrical shock hazards.
Page 5 [Circuitry Access] Do not remove covers, panels, casing, or access the circuitry with power applied to the unit. Turn the power off and disconnect the power cord prior to removal. Internal servicing / adjustment of unit should only be performed by qualified personnel. Do not touch any parts / circuitry with a high heat factor.
Page 6 Upon Receipt FA-9600 units and their accessories are fully inspected and adjusted prior to shipment. Check your received items against the packing lists below. Check to ensure no damage has occurred during shipment. If damage has occurred, or items are missing, inform your supplier immediately.
Page 7 Trademarks Microsoft, Windows and Edge are registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Intel and Intel Core are trademarks or registered trademarks of Intel Corporation. Apple, macOS and Safari are trademarks or registered trademarks of Apple Inc. HDMI is a trademark or registered trademark of HDMI Licensing LLC.
Page 8: Table Of Contents
3-5. Saving / Loading Settings (Event Operation) ................30 4. FA-9600 Setting Example........................31 4-1. Color Processer: SDR<->HLG (with Preset Events) ............... 31 4-1-1. Preset Event Stored in FA-9600 ..................33 4-1-2. Preset Events in CD-ROM (FA-96AHDR2 required) ............34 4-2. Color Processer: HLG<->PQ ....................35 4-3.
Page 9 5-12. YCbCr CLIP ........................... 50 5-13. INPUT SELECT (Synchronizer) ..................... 51 5-14. INPUT SELECT (Converter 1) ....................52 5-15. INPUT SELECT (Color Processor) ..................53 5-16. INPUT LINKAGE PROCESS (VIDEO) .................. 53 5-17. INPUT LINKAGE PROCESS (AUDIO) .................. 54 5-18. DYNAMIC RANGE GAIN CONTROL ..................54 5-19.
Page 10 6-6. SOURCE AUDIO SELECT ...................... 93 6-7. SAMPLING RATE CONVERTER (SRC) ................. 94 6-8. MONO SUM SETTINGS (1-16) ....................94 6-9. AUDIO DOWNMIX 1 and 2 ...................... 95 6-10. EMB. AUDIO OUTPUT MAPPING ..................97 6-11. HDMI AUDIO OUTPUT SELECT ................... 97 6-12.
Page 11 10-2. Starting Processor Control GUI Launcher ................127 10-3. Registering FA-9600 Units ....................128 10-4. Changing Unit Information ....................128 10-5. Deleting FA-9600 from the List .................... 129 11. Starting Windows GUI / Web GUI ....................130 11-1. Difference between Windows GUI and Web GUI ..............130 11-2.
Page 12 12-2-12. Bypass ........................180 12-2-13. Reference Select ......................180 12-2-14. Ancillary Status ......................181 12-2-15. Video Status........................ 181 12-3. Audio Settings ........................182 12-3-1. Audio IN (FS 1 / FS 2 / AES / Option) ................183 12-3-1-1. Embedded Audio ....................183 12-3-1-2.
Page 13 13-4. Event Tally ........................... 225 13-4-1. Event Tally Setup (Web GUI) ..................225 13-4-2. Tally Format ........................226 13-5. FA-9600 Event Editor ......................227 14. SNMP Monitoring .......................... 230 14-1. SDI Video Status Information Examples ................233 14-2. HDMI Video Status Information Examples ................234 14-3.
Page 14: Prior To Starting
The FA-9600 can be expanded by adding optional cards that make it an ideal standalone solution at transmission centers, in mobile production trucks, production studios, news stations, and other nonlinear editing and playout production environments.

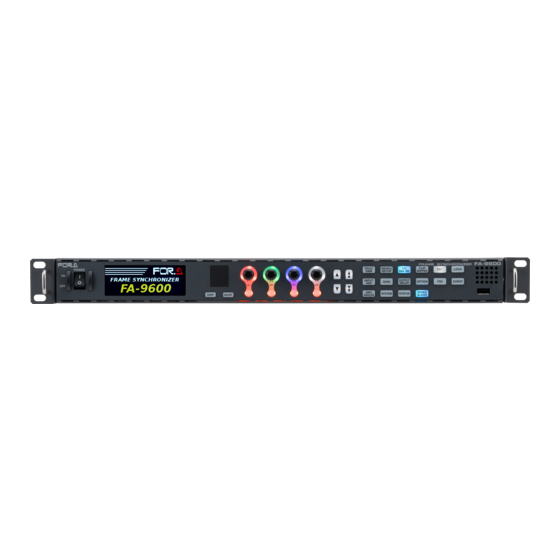

Page 15: Three Mu Main Mode
Windows GUI and Web GUI, until it is restarted. In such cases, power off the FA-9600 and verify that air vents are not obstructed and whether the environment is causing the overheating. Wait for the device temperature to go down, then turn on...
Page 16: Connection Example (Video Input / Output)
1-5. Connection Example (Video Input / Output) 1-5-1. 4K In / HD Out + HD In / HD Out Set MU Operation Mode to Simultaneous 4K/HD. (See 7-10. “MU OPERATION.”) Input a 4K video into FS1, change to HD in Converter1 (Proc. 1) and distribute to two outputs. Input an HD video into FS2, send to Converter2 (Proc.
Page 17: Panel Descriptions
Install your FA-9600 unit in places where the LCD panel display can be correctly seen at the right angle, due to viewing angle problems caused by LCD systems. Installing the unit into a rack in a too- high position and viewing the screen from below may change contrast ratio and color values and distort menus, depending on the viewing angle.
Page 18: Rear Panel
IN/OUT Input or output selectable per 2-port pair. (BNC) 1/2 to 7/8 Ethernet port supporting 100BASE-TX (RJ-45) To control FA-9600 through Windows GUI, Web GUI or remote control unit, use a network switch to expand LAN ports. SLOT-A Option card installation slot for video expansion.
Page 19: Option Slots
2-3. Option Slots The FA-9600 can be upgraded by installing optional modules into Slots A to C. Install option cards into the correct slots since available slots are defined depending on the option type cards as shown below. FA-9600 option list...
Page 20: Fa-96Sfpc4 (4-Cage Card For Sfp Modules)
NOTE SFP/SFP+ modules are not supplied. Please prepare modules for yourself and consult your FOR-A supplier for more details. The installed module information is displayed on the Status page in the Windows GUI or Web GUI. (See Sec. 12-9. “Status.”) The following Embrionix SFP modules have been tested and approved and are ready for use.
Page 21: Fa-96Ana-Aud (Balanced Analog Audio 4-In 4-Out Card)
2-3-5. FA-96ANA-AUD (Balanced Analog Audio 4-In 4-Out Card) Analog audio expansion card that can add 4 balanced inputs and outputs for each. Respectively connect hot and cold lines to pins with plus (+) and minus (-) symbols. (See the table below.) Install a card into Slot B.
Page 22: Fa-96Dnt (Dante Audio Card)
PRIMARY SECONDARY IMPORTANT Using FA-9600 as a Dante device requires a computer in which Dante Controller software is installed. “Dante Controller” and User’s Manual can be downloaded from the Audinate website: https://www.audinate.com/, in which helpful documents about Dante network setup are provided. Refer to the manual, Audinate site information and documents to configure Dante network and audio routing.
Page 23: Fa-96Gpi (10 Inputs And 10 Outputs)
◆ GPI Output Circuit FA-9600 +5.0V FUSE PIN 1 10 kΩ S2-1-7 +5-24V Max 50 mA External power PIN 2-8 PIN 9 Jumper Setting JP1: Switches between internal and external power. 1-2 shorted: DC IN (External power input) 2-3 shorted: DC OUT (Internal power output) Dipswitch Settings S2: 7 dipswitch pins turn output on/off.
Page 24 DC IN or OUT (+5.0 V) set by the jumper pin: JP1 (See the next page.) Factory default: DC OUT Total max load current is 500 mA ◆ GPI Input Circuit FA-9600 GPI input pulse width: 100 ms or more +5.0 V FUSE 13 PIN 10 kΩ...
Page 25: Fa-96Din4-Cbl (Ltc I/O Expansion Cable)
Jumper setting JP1: Switches between internal and external power. 1-2 shorted: DC IN (External power input) 2-3 shorted: DC OUT (Internal power output) Dipswitch settings SW1(1-4),SW2(1-4), SW3(1-2): 10 dipswitch pins turn output on/off. Off: Push-pull output (factory default setting) On: Open-drain output Dipswitch Pin Assignments Dipswitch pin Controlled output...
Page 26: Operation
3. Operation 3-1. Front Panel Operation ◆ Lock Button All front panel operations are disabled when the LOCK button is lit. To lock the front panel, press the LOCK button. The button light will turn on. To unlock the front panel, hold down the LOCK button. The button will turn off. ◆...
Page 27: Memory Access Icon
An access icon as shown below will appear on the bottom-right corner of the menu screen while the built-in memory is being accessed, such as during power-on or event operation. Do not power off FA-9600 units while the icon is displayed. Otherwise, memory data may be lost or broken.
Page 28: Fa-9600 Remote Control
3-4. FA-9600 Remote Control Various remote control devices and tools are provided for FA-9600 units. The following diagram shows a remote connection example. FA-AUX30 GPI1 GPI2 GPI3 3 cables supplied with FA-AUX30 FA-10RU AC100-240V 50/60Hz IN GPI1 GPI2 GPI3 TO MU (10/100/1000BASE-T) 192.168.0.101...
Page 29 CBL options. (*1) Separate document (*2) Up to 5 connections at a time per FA-9600 are possible for Windows GUI, FA-10RU and FA- 10DCCRU. (*3) Up to 2 connections per FA-9600 are available for LAN commands at a time. (*4) Up to 5 connections per FA-9600 are available for Ember+ commands at a time.
Page 30: Network Setting Quick Reference
(*2) 3-5. Saving / Loading Settings (Event Operation) FA-9600 can save Video and Audio menu settings as events. Complex conversion settings can be easily set by only loading events. Desired events can be loaded according to input signal format. Event data can be backed up and restored as csv files using web browsers (Web GUI).
Page 31: Fa-9600 Setting Example
[Web GUI] (Scrolling up and down to go through the page.) (1) Preset Event Buttons (8 buttons) Clicking a button loads the event assigned to the button. See Sec. 4-1-1. “Preset Event Stored in FA-9600” for details on settings stored in events.
Page 32 (2) Direct Recall Button Allows you to select whether to display the confirmation dialog box when loading events using Preset Event buttons. Pressing the Direct Recall button turns the button to blue and the confirmation dialog box will never be displayed when recalling events. (3) Preset Assign button (Windows GUI) Context menu (Web GUI) Allows you to remap Preset Event button assignments.
Page 33: Preset Event Stored In Fa-9600
4-1-1. Preset Event Stored in FA-9600 Event No: 91/95 Event name: F1/F2_S2H_Disp Conversion: Display-referred conversion from SDR to HLG (Example in ITU-R BT.2390) Application: Converts SDR contents to HDR (HLG) for HDR broadcasting. Event No: 92/96 Event name: F1/F2_H2S_Disp Conversion: Display-referred conversion from HLG to SDR referring to Display.
Page 34: Preset Events In Cd-Rom (Fa-96Ahdr2 Required)
In Conversions 1 and 3, SDR 100% White is converted to HLG 75% White In Conversions 2 and 4, HLG 75% White is converted to SDR 100% White. Knee settings for Conversions 5 and 6: Output Clip: 109.0%, Knee Slope: 0.1, Knee Point: 96.0% Event 91/95 Block Diagram Display Referred SDR to HLG SDR /...
Page 35: Color Processer: Hlg<->Pq
12. Event No: Event 9/10 in the supplied CD-ROM Event name: F1/F2_SDR->HLG(Scene OAdj) Conversion: Scene referred conversions from SDR to HLG adding an OOTF correction. (Example described in ITU-R BT.2390) Application: Using SDR camera source on HLG TV programs with OOTF correction. 13.
Page 36: Converter: Adjusting Output Timing
INPUT SELECT Menu OUTPUT SELECT OUTPUT SELECT (Slot A) (Synchronizer) SDI output Source UHD Input Item OUT1a/1b OUT2a/2b OUT 1 OUT 2 OUT 3 OUT 4 Select Link Example Single Link SL(Proc.1) 12G Single Link Example DL L1/L2 Single Link 6G Dual Link (Proc.
Page 37: Converter: Outputting Signals With Minimum Delay
4-5. Converter: Outputting Signals with Minimum Delay See Sec. 5-21. “ADJUST TIMING (FA-96UDC).” See Sec. 5-37. “SYNCHRONIZER.” To output images with minimum delay when converting from HD to 4K, follow the instructions below. Assume that images are output as set under Example 1 (from OUT1a/1b using 12G Single Link) in the previous section.
Page 38: Controlling 3D-Lut Via Wonderlookpro
FA-9600 3D-LUT cannot be controlled properly, if WonderLookPro Control is disabled on the FA-9600. FA-9600 communicates with WonderLookPro via LAN using FA-9600 dedicated commands over HTTP (TCP/IP) and FA-9600 receive port is set to 60000 as factory default. Refer to “FA-9600 Command manual” for more details.
Page 39: Video Setting Menus
5. Video Setting Menus The MU Main mode (Simultaneous 4K/HD, Dual HD or 3D-LUT) determines which menus can be used on which FS. The menu access button, available MU Main modes and required option(s) are indicated on the right side of menu. See Sec.
Page 40: Split Mode Select
5-2. SPLIT MODE SELECT Simultaneous 4K/HD Dual HD 3D-LUT (FS1) Item Default Setting Description Selects the output image display method. Operate: Displays the image after correction. Operate V-Split: Splits the screen vertically and displays V-Split images before and after correction. Mode Operate H-Split...
Page 41: Area Marker (Fa-96Ahdr2)
5-3. AREA MARKER (FA-96AHDR2) Simultaneous 4K/HD Dual HD 3D-LUT (FS1) Required FA-96AHDR or Option FA-96AHDR2 Item Default Setting Description Selects the marker mode. Disable: Plots no makers. Disable Luminance: Marks pixels above the high Marker Disable Luminance threshold when enabling RGB Clip. Gamut Gamut: Marks pixels whose RGB values exceed the range between 0 and 1.0.
Page 42: Ootf For Hlg
U01: SDR 2.2 BT.1886 Selects a gamma curve for input. Gamma U02: SDR 2.4 BT.1886 setting data as shown at left are respectively U03: HLG BT.2100 stored in files named U01 to U10. U04: HLG (RGB Gamma data names and content can be SG1.2) changed by editing files in the Web GUI.
Page 43 ◆ OOTF for HLG (INPUT SIDE) Setting Item Default Description (Steps) Selecting Enable applies correction when converting signals from HLG to another gamma curve referring to monitor Disable brightness range. OOTF Disable Enable Selects the gamma and luminance peaks below. See Sec.
Page 44: Optional Function (Fa-96Ahdr2)
5-6. Optional Function (FA-96AHDR2) This menu is enabled if Dynamic Range Conv. is set to Operate. (See Sec. 5-4 "INPUT / OUTPUT GAMMA / COLOR."). OOTF is applied on RGB signals as a system gamma. Selects an operation mode under OOTF RGB and OOTF or Inverse OOTF under Operation. Simultaneous 4K/HD Dual HD 3D-LUT (FS1)
Page 45: In/Out Gamma/Color
U08 Linear are stored in the supplied CD-ROM as U09 Linear files. These file names and content can U10 Linear be changed in the FA-9600 Web GUI. (*1) HLGLive >> 709 (See Sec. 12-6. “Data Page (Web GUI).”) (*1) 709 >> HLGLive (*1) SL3Live >>...
Page 46 Converts from HLG to SDR. FOR-A (2) FOR-A original color gamut mapping Converts from HLG to SDR. FOR-A (3) FOR-A original color gamut mapping using a lower gain than FOR-A (2). Linear No conversions on input/output Converts from HLG-Live to SDR. (Sony’s proprietary) (*1) HLGLive >>...
Page 47: Color Correction (Balance Pre)
5-8. COLOR CORRECTION (Balance Pre) If Color Correction Mode is set to Balance (RGB) (Linear Color Correction before color space conversion): Simultaneous 4K/HD Dual HD 3D-LUT (FS1) Item Default Setting Description White Level Sets the white level by separately adjusting 100.0% 0.0 - 200.0% (RGB)
Page 48: Color Correction (Balance Post)
5-9. COLOR CORRECTION (Balance Post) If Color Correction Mode is set to Balance (RGB) (Linear Color Correction after color space conversion): Simultaneous 4K/HD Dual HD 3D-LUT (FS1) Item Default Setting Description White Level Sets the white level by separately adjusting 100.0% 0.0 - 200.0% (RGB)
Page 49: Color Correction (Differential)
5-10. COLOR CORRECTION (Differential) If Color Correction Mode is set to Differential: Simultaneous 4K/HD Dual HD 3D-LUT (FS1) Item Default Setting Description White Level (R-Y) Sets the white level by separately adjusting R-Y, 100.0% 0.0 - 200.0% (G-Y) G-Y and B-Y components. (B-Y) Black Level (R-Y)
Page 50: Ycbcr Clip
KNEE (RGB CLIP) White 1-2 Item Default Setting Description Disable Clip Disable Setting Enable enables Knee function. Enable If set to Enable, following parameters are available. Selects RGB or Y for knee correction mode. RGB Knee Selecting Y Knee preserves colors more Clip Mode Knee vividly in the knee correction (high...
Page 51: Input Select (Synchronizer)
964K Color SDI Output Mute normal video. SDI Output Mute: Outputs no video signal so that the FA-9600 downstream device can detect video loss. See the table below for 4K multi-link input. Loss Mode Back Color (Link): Outputs a monochrome (set under Back Color below) Back Color(Link) video.
Page 52: Input Select (Converter 1)
Replaces lost parts with monochrome to restore the whole input Back Color (Sep) image. The image is displayed with lower luminance. (*1) Auto Freeze Freezes the last normal image displayed on the screen. SDI Output Mute(Link) Freezes the last normal image displayed on the screen until the (*1) video output is stopped.
Page 53: Input Select (Color Processor)
5-15. INPUT SELECT (Color Processor) Simultaneous 4K/HD Dual HD 3D-LUT (FS1) Item Default Setting Description Synchronizer 1 Synchronizer1 (FS1) Source Converter 1 Selects a source signal for FS1 or Select FS2 Color Processor. Synchronizer 2 Synchronizer2 (FS2) Converter 2 Source Displays the signal format selected Format under Source Select.
Page 54: Input Linkage Process (Audio)
5-17. INPUT LINKAGE PROCESS (AUDIO) An event (menu settings) can be automatically loaded by linking to ARIB Audio mode (data in the control signal defined by ARIB STD-B39). input signal format. To check the input Audio Mode information, see Sec. 7-16. “INPUT ARIB B39 AUDIO MODE.” Note that signal processing from data analysis to even loading may take a certain time, more than a frame in some cases.
Page 55: Output Select
5-19. OUTPUT SELECT Simultaneous 4K/HD Dual HD 3D-LUT (FS1 / Proc1) <Simultaneous 4K/HD mode> <3D-LUT mode> Item Default Setting Description SL (Proc.1) Assigns video signals (Color Processor SL (Proc.2) output) to output ports. OUT 1a/1b SL (Proc.1) DL L1/L2(Proc.1) QL L1/L2(Proc.1) SL: Single Link signal SL (Proc.1) DL: Dual Link signal...
Page 56 ◆ FA-96EX12G06 Option Simultaneous 4K/HD Dual HD 3D-LUT (FS1 / Proc1) Required FA-96EX12G06 Option < Simultaneous 4K/HD mode> Item Default Setting Description SL (Proc.1) SL (Proc.2) Assigns a video signal to OUT 1a/1b/2 SL (Proc.1) (*2) DL L1/L1/L1 (Proc.1) each output port. (*2) QL L1/L1/L2 (Proc.1) SL (Proc.1)
Page 57: Uhd) Sdi Interface
<Dual HD mode> Item Default Setting Description Assigns a video signal to Proc.1 OUT 1/2 Proc.1 each output port. Proc.2 Proc.1/Proc.2 Assigns a video signal to OUT 3/4 Proc.1 Proc.2/Proc.1 each output port. UHD Link Single Link SDI link format (Fixed) <3D-LUT mode>...
Page 58 ◆ If FA-96SFPC4 installed Output ports FA-96SFPC4 output ports 4K SDI interface SL 12G-SDI 47.95 Hz 6G-SDI or more 3G-SDI 6G-SDI 30Hz 3G-SDI or less HD-SDI SL: Single Link DL: Dual Link QL: Quad Link L1: QL / DL Link 1 L2: QL / DL Link 2 L3: QL Link 3 L4: QL Link 3...
Page 59: Converter Format (Fa-96Udc)
5-20. CONVERTER FORMAT (FA-96UDC) This menu requires FA-96UDC to be installed. See “Appendix 1: Video Format Conversions” for more details. Simultaneous 4K/HD (FS1) Dual HD 3D-LUT (FS1) Required FA-96UDC Option Item Default Setting Description Specifies the converter output format. Follow Input Follow Input: Converter input signal Converter Follow Input...
Page 60: Adjust Timing (Fa-96Udc)
5-21. ADJUST TIMING (FA-96UDC) Simultaneous 4K/HD Dual HD 3D-LUT (FS1) Required FA-96UDC Option ◆ ADJUST TIMING Item Default Setting Description Selects the Conversion 1 or 2 output timing (delay amount). Frame Frame: Outputs at the same timing (delayed in frames) as that of the FS.
Page 61 ◆ Delay variation depending on menu settings and processes Synchronizer output timing Timing(H, V) Converter output timing Delay Mode: Frame Timing(H, V) Converter output timing Delay Mode: Minimum Timing (min.H, min.V) Converter output timing Delay Mode: Adjustable Timing(0, 0) Timing setting range when Adjustable is set Blue: Adjustable range for frame delay, min.
Page 62: Resize 1, 2, 3 (Fa-96Udc)
5-22. RESIZE 1, 2, 3 (FA-96UDC) Simultaneous 4K/HD (FS1) Dual HD 3D-LUT (FS1) Required FA-96UDC Option ◆ RESIZE 1 Item Default Setting Description Disable Enables/disables scaling or positioning up to Scaling Disable Enable 2K size for Size, Position and Crop settings. 4:3 L 16:9 T 4:3 L 14:9 T 4:3 L>16:9...
Page 63 NOTE If input and output signals are the same format, or converting signals between 1080 and 4K, only simple resolution conversion is performed, but scaling are not performed because higher priority is given to minimizing process delay. In such cases, you still need to perform scaling or positioning, enable this menu.
Page 64: I/P Converter Setting (Fa-96Udc)
5-23. I/P CONVERTER SETTING (FA-96UDC) Simultaneous 4K/HD Dual HD 3D-LUT (FS1) Required FA-96UDC Option Item Default Setting Description Adaptive: Detects whether there is motion or no motion in the scene, and generates an optimal progressive image. Field: Generates a progressive image from one field of an interlaced image.
Page 65: Antialias H/V (Fa-96Udc)
5-24-1. ANTIALIAS H/V (FA-96UDC) Simultaneous 4K/HD (FS1) Dual HD 3D-LUT (FS1) Required FA-96UDC Option Setting Item Default Description (Steps) If set to Auto, a recommended Frequency value is automatically set according to the Auto input and output image size ratio. Mode Auto Manual...
Page 66: Enhance H/V (Fa-96Udc)
5-24-2. ENHANCE H/V (FA-96UDC) The menu sets the horizontal and vertical enhancements. Although enhancers are not effective on 4K images, they can be applied to HD input images before 4K up-conversion and to HD output images after down-conversion from 4K. The enhancement filter allows you to sharpen blurry input images and restore blurred edges caused by anti-aliasing filtering that attenuates high-frequency information while down- converting.
Page 67: Uhd Upconversion (Fs1) (Fa-96Udc/964K)
5-25. UHD UPCONVERSION (FS1) (FA-96UDC/964K) This menu requires FA-96UDC and FA-964K optional software, and is disabled if Converter is set to Follow Input in the FORMAT CONVERTER menu. Simultaneous 4K/HD (FS1) Dual HD 3D-LUT (FS1) Required FA-96UDC Option FA-964K Item Default Setting Description...
Page 68: Video Payload Id 1, 2
5-27. VIDEO PAYLOAD ID 1, 2 Simultaneous 4K/HD Dual HD 3D-LUT (FS1) Item Default Setting Description Selects payload identifier insertion mode. Note that payload identifiers are always inserted if output video signals are 4K or HD, regardless of HANC and VANC settings and Payload ID codes in input video.
Page 69 - Quad Link 1.5G 2160-Lines: SMPTE ST292-1:2018 - Dual Link 3G Level-B 2160-Lines SQD: SMPTE ST425-1:2017 - Dual Link 3G Level-B 2160-Lines 2SI: SMPTE ST425-3:2019 - 6G 2160-Lines: SMPTE ST2081-10:2018 - Quad Link 3G Level-A 2160-Lines SQD: SMPTE ST425-1: 2017 - Quad Link 3G Level-B 2160-Lines SQD: SMPTE ST425-1: 2017 - Quad Link 3G Level-A 2160-Lines 2SI: SMPTE ST425-5: 2019 - Quad Link 3G Level-B 2160-Lines 2SI: SMPTE ST425-5: 2019...
Page 70: Video Payload Id Linkage
5-28. VIDEO PAYLOAD ID LINKAGE An event (a set of menu settings) can be automatically loaded linked with payload identifiers. NOTE Note that signal processing from data analysis to even loading may take a certain time, more than a frame in some cases. To check each information, see Sec.
Page 71: Timecode Generator Ltc 1, 2, 3
5-30. TIMECODE GENERATOR LTC 1, 2, 3 This menu allows you to generate LTC timecodes. To embed timecode onto FS output, set H ANC to Overwrite (Sec. 5-26. “ANCILLARY MULTIPLEX”) and ATC(LTC) to Enable (Sec. 5-29. “TIME CODE MULTIPLEX”). Simultaneous 4K/HD Dual HD 3D-LUT (FS1) Item...
Page 72: Timecode Source
5-30-1. Timecode Source Available timecode sources are restricted depending on frame rates of input and output video signals. If an invalid source is selected, an error message appears at the bottom of the menu and an asterisk (*) is added to the invalid source. The following tables show which timecode source is available for which frame rates of input and output signals.
Page 73: Ltc Out Select (Fa-96Din4-Cbl)
5-32. LTC OUT SELECT (FA-96DIN4-CBL) This menu requires FA-96DIN4-CBL option. Simultaneous 4K/HD Dual HD 3D-LUT (FS1) Required FA-96DIN4-CBL Option Item Default Setting Description The LTC OUT on FA-96DIN4-CBL outputs an internally generated FS1 Generator LTC timecode. Source FS1 Generator LTC FS2 Generator LTC This menu selects which timecode generator to be used.
Page 74: Anc Data Insertion
5-34. ANC DATA INSERTION This menu allows you to determine whether to pass through the following three VANC data packets inserted in SDI input. ARIB STD-B37 (Closed Caption Data) ARIB STD-B39 (Inter-Stationary Control Data) User Packet (Selected in Sec. 5-33. “ANC USER PACKET”) (Planned for future support) Other VANC data packets cannot be managed independently, To enable this menu, set V ANC to Rewrite.
Page 75 P to I(PsF) conversion 60/59.94/50p 60/59.94/50i(30/29.97/25PsF) (more than 30 frames) Frame 1 Packet A Field 1 Packet A Inserts frame packets to fields. Frame 2 Packet B Field 2 Packet B P to P conversion 30/29.97/28/24/23.98p 60/59.94/50/48/47.95p (Framerate doubled) Frame 1 Packet A Frame 1 Packet A...
Page 76: Anc User Packet Insertion (Planned For Future Support)
5-35. ANC USER PACKET INSERTION (Planned for future support) This menu is planned for future support. Simultaneous 4K/HD Dual HD 3D-LUT (FS1) Item Default Setting Description 525/59.94i 625/50i 720p Selects the TV standard of the signal into 1080i, PsF/2160PsF Standard which the user packet is inserted.
Page 77: Synchronizer Format
5-36. SYNCHRONIZER FORMAT See Sec. “15-1. “Specifications” for the supported signal formats. Simultaneous 4K/HD Dual HD 3D-LUT (FS1) Item Default Setting Description Selects the FS output format. Format Auto Detect Auto Detect Auto Detect: FS input signal format. Setting Manual Manual: Signal format specified below Specifies the vertical image resolution.
Page 78: Synchronizer
5-37. SYNCHRONIZER Simultaneous 4K/HD Dual HD 3D-LUT (FS1) Item Default Setting Description Selects the reference signal (for both FS1 and FS2). GENLOCK IN: GENLOCK input signal GENLOCK IN FS 1/2: Input signal selected for Synchronizer 1 or Genlock GENLOCK Synchronizer 2. Source Free Run: Internal reference signal.
Page 79: Video Freeze
Item Default Setting Description -2750 to 2750 (1080/Level B) -1375 to 1375 (1080) Timing * 0 Clock Sets the horizontal offset. (Horizontal) -2063 to 2063 (720) -864 to 864 (SD) -563 to 563 (1080) Timing * -375 to 375 (720) 0 Line Sets the vertical offset.
Page 80: Frame Delay
Turning the F4 control knob switches between F1 and F2. 5-39-1. FRAME DELAY Difference between Old and New Versions The FRAME DELAY function significantly changes in FA-9600 Version 3.3. FA-9600 version FRAME DELAY The function is included in the FA-96UDC option and...
Page 81 The FRAME DELAY values stored in the following events are ignored in new versions. Event data stored in FA-9600 old versions (until V3.2x) Event data created by the Event Editor or using event data list written in manuals of old FA-9600 versions.
Page 82: Sdi Bypass
5-40. SDI BYPASS Simultaneous 4K/HD Dual HD 3D-LUT (FS1) Required FA-96EX3G44-R option Item Default Setting Description Enables/disables SDI 1 active bypass Operate IN 1 – OUT 1a Operate routing. Note that active bypass is ineffective Active Through when unit power is off. Operate IN 2 –...
Page 83: Hdmi Settings
In Simultaneous 4K/HD or 3D-LUT mode with FA-964K, FA-9600 prioritizes 4K video than HD video through EDID information if an HDMI device (such as a PC) that provides video signals to FA-9600 supports 4K. To use video resolution other than 4K in such cases, specify the desired video resolution in the HDMI device.
Page 84: Hdmi Hdr Metadata
5-43. HDMI HDR METADATA Simultaneous 4K/HD Dual HD 3D-LUT (FS1) Item Default Setting Description Selects the HDR metadata to be inserted into HDMI OUT. Pass: HDMI IN inserted data (Enabled only when INPUT SELECT is set to HDMI IN (see Sec. 5-13) Pass and in other cases, same data as Overwrite setting.) Output...
Page 85: Video Input Status
5-44. VIDEO INPUT STATUS Simultaneous 4K/HD Dual HD 3D-LUT (FS1) Required FA-96EX3G44-R Option FA-96SFPC4 Item Description Displays each input signal format. Loss: No input signal Bypass: Input signal is directly pass through to output (process bypassed). IN 1 Unknown: Input signal is not supported. IN 2 HDMI IN -6G/12G-SDI signals input to IN2 are regarded as “loss.”...
Page 86: Processed Signal Status
5-45. PROCESSED SIGNAL STATUS Simultaneous 4K/HD Dual HD 3D-LUT (FS1) Item Description Displays the FS1 output signal format. FS1 OUT FS2 OUT Displays the FS1 output signal format. Displays the CONV1 (converter) output signal format. CONV.1 OUT Displays the CONV2 (converter) output signal format. CONV.2 OUT (FA-96UDC required) 5-46.
Page 87: Video Output Status
5-47. VIDEO OUTPUT STATUS Simultaneous 4K/HD Dual HD 3D-LUT (FS1) Required FA-96EX3G44-R Option FA-96EX12G06 FA-96SFPC4 Item Description Displays the output signal format. OUT 1a -The following information is also displayed for HDMI outputs. Color Space: YCC (YCbCr), RGB OUT 2b RGB Range: L (Limited) HDMI OUT Colorimetry: 2020 (BT.2020), 709 (BT.709), 601 (BT.601)
Page 88: Payload Id (Fa-96Ex3G44-R / Fa-96Sfpc4)
5-48. Payload ID (FA-96EX3G44-R / FA-96SFPC4) The Payload ID (Slot A) page is displayed when FA-96EX3G44-R or FA-96SFPC4 is installed. Simultaneous 4K/HD Dual HD 3D-LUT (FS1) Required FA-96EX3G44-R Option FA-96SFPC4 SDI signal 3G Level A 3G Level B Display Payload ID Payload ID Payload ID PID 1 data...
Page 89: Output Payload Id
5-49. OUTPUT PAYLOAD ID Simultaneous 4K/HD Dual HD 3D-LUT (FS1) Required FA-96EX3G44-R Option FA-96EX12G06 FA-96SFPC4 Item Description OUT 1a Displays payload ID codes in outputs. OUT 2b OUT 1 Displays payload ID codes in outputs. (FA-96EX3G44-R, Slot A) OUT 4 OUT 1a/1b Displays payload ID codes in outputs.
Page 90: Input Arib B39 Video Mode
Normal: SFP module functions normally. Tx1/2 Warning: A problem has occurred on the SFP module. Tx3/4 Error: An error has occurred on the SFP module. Open the FA-9600 Windows GUI / Web GUI to verify details. (See Sec. 12-9. “Status.”)
Page 91: Audio Setting Menus
6. Audio Setting Menus 6-1. AUDIO DEMUX Simultaneous 4K/HD Dual HD 3D-LUT (FS1 / EMB1) Item Default Setting Description Selects whether to perform auto phase adjustment among each SDI input audio group. Enable Group Disable (*1) Alignment Enable: Performs auto adjustment. Disable Disable: Performs no auto adjustment (Normal setting).
Page 92: Audio Mux Enable (Group1-4)
6-3. AUDIO MUX ENABLE (GROUP1-4) Simultaneous 4K/HD Dual HD 3D-LUT (FS1 / EMB1) Item Default Setting Description Enable Enables/disables SDI audio embedding for Group 1-4 Enable Disable each audio group. 6-4. AUDIO MUX MODE (ARIB STD-B39) To insert AUDIO MODE data onto SDI output, set ARIB STD-39 to Overwrite. (See Sec. 5-34. “ANC DATA INSERTION.”...
Page 93: Emb. Audio Input Polarity
Setting to Invert inverts the audio polarity. HDMI embedded audio channels always have normal polarity. 6-6. SOURCE AUDIO SELECT This menu allows you to select 32 audio source channels processed on the FA-9600. Simultaneous 4K/HD Dual HD 3D-LUT (FS1 / EMB1)
Page 94: Sampling Rate Converter (Src)
Pass audio channels through the SRC if they are used for HDMI, analog, MADI and Dante output. 6-8. MONO SUM SETTINGS (1-16) FA-9600 units are equipped with 16 MONO SUM circuits whose sources can be selected from FA-9600 audio source channels 1-32. MONO SUM output audio can be used for SDI embedded audio (EMB.
Page 95: Audio Downmix 1 And 2
6-9. AUDIO DOWNMIX 1 and 2 FA-9600 units are equipped with 2 Audio Downmix modules, which can accept FA-9600 audio source channels 1-32, and Silence as Downmix sources. Downmix output audio can be used for SDI embedded audio (EMB. AUDIO OUTPUT MAPPING menu, 345) and AES output audio (AES AUDIO OUTPUT MAPPING, 347).
Page 96 ◆ Down Mix Block Diagram <Surround Mix (Lt/Rt)> Ls/Rs surround channels are summed to produce a mono surround channel and mixed to right and left channels by the 180 degree phase difference. (LFE channel is discarded.) Gain Adjust Gain Adjust Gain Adjust 1: CENTER MIX level setting Gain Adjust...
Page 97: Emb. Audio Output Mapping
6-10. EMB. AUDIO OUTPUT MAPPING Allows you to assign the following audio signals to SDI output and AES output audio channels. Audio source signal Description Reference menu Menu no. Source Ch.1-32 Audio source channels 1-32 SOURCE AUDIO SELECT 316-317 Downmix 1L/1R Downmix 1 output AUDIO DOWN MIX1 331-332...
Page 98: Aes Audio Output Mapping
6-12. AES AUDIO OUTPUT MAPPING Allows you to select AES output audio from the same audio sources as those for SDI output. Simultaneous 4K/HD Dual HD 3D-LUT (FS1 / EMB1) Item Default Setting Description Selects an output channel pair. If an asterisk (*) is displayed in Ch.1/2-7/8 front of channels, they are used as input and cannot be used for...
Page 99: Madi Output Mapping
6-14. MADI OUTPUT MAPPING Allows you to select MADI output signal from the same audio sources as those for SDI output. Simultaneous 4K/HD Dual HD 3D-LUT (FS1 / EMB1) Required FA-96MADI option Item Default Setting Description Output Pair Ch.1/2-31/32 Selects an output channel pair. Source Ch.1-32 Source Ch.1-31 500Hz Tone...
Page 100: Madi Output Settings
6-16. MADI OUTPUT SETTINGS Allows you to set up MADI signal output. Simultaneous 4K/HD Dual HD 3D-LUT (FS1 / EMB1) Required FA-96MADI option Item Default Setting Description Selects an MADI signal output mode. 56ch Mode: 56-channel mode 56ch Mode 64ch Mode: 64-channel mode 64ch Mode Mode 64ch Mode...
Page 101: Aes Terminal In/Out Set
6-18. AES TERMINAL IN/OUT SET Allows you to select Input or Output for AES terminals. Simultaneous 4K/HD Dual HD 3D-LUT (FS1 / EMB1) Item Default Setting Description Selects Input or Output for DIGITAL AUDIO IN/OUT1/2 and 3/4 ports. Ch.1/2,3/4 Fixed to Input if FA-96AES-UBLC installed. Selects Input or Output for DIGITAL AUDIO IN/OUT5/6 and 7/8 ports.
Page 102: Analog Input/Output Gain
Simultaneous 4K/HD Dual HD 3D-LUT (FS1 / EMB1) Item Default Setting Description EMB: Ch.1-16 Selects a channel from each audio output. Channel AES: Ch1-8. (OP(AES) represents the FA-96AES-UBL OP(AES): Ch.1-8 card.) Gain Ch 0.0dB -20.0dB to +20.0dB Sets the gain for the selected audio channel. Sets the all channels’...
Page 103: Madi Output Gain
6-22. MADI OUTPUT GAIN Allows you to adjust audio channel gain for MADI output (FA-96MADI required). Allowable gain adjustment ranges from -20 dB to 20 dB with Master Gain and individual channel Gain. Gain values exceeding these limits are clipped and set to the respective limit value. Simultaneous 4K/HD Dual HD 3D-LUT (FS1 / EMB1)
Page 104: Audio Input Delay
6-24. AUDIO INPUT DELAY Allows you to add delay to 32 audio sources on the FA-9600. (See SOURCE AUDIO SELECT menu, 316-317). Allowable delay amount ranges from 1 msec to 1000 msec with Master Delay and individual channel Delay. Delay values exceeding these limits are clipped and set to the respective limit value.
Page 105: Dolby E Alignment
Audio alignment settings are disabled and reset under the following conditions. - When the Dolby E is changed to another audio. Adjust (Push Unity) - When an event is loaded - When the FA-9600 is reset to default - When the FA-9600 is powered off.
Page 106: Additional Audio Delay
6-27. ADDITIONAL AUDIO DELAY The delay time caused by Video Converter process can be automatically added to audio output channels to fill the time gap between video and audio. The delay time amount is displayed under Total Delay in the FRAME DELAY menu. (See Sec. 5-39. FRAME DELAY”) When any converter is not used, no delay time is added to audio regardless of this setting.
Page 107: Analog Input/Output Level
6-28. ANALOG INPUT/OUTPUT LEVEL Simultaneous 4K/HD Dual HD 3D-LUT (FS1 / EMB1) Required FA-96ANA-AUD option Item Default Setting Description -10 dBu 0 dBu Sets the signal level for each analog audio Ch.1-4 +4 dBu +4 dBu input/output channel. +8 dBu 6-29.
Page 108 - ANALOG INPUT GAIN (Sec. 6-21) - AUDIO REFERENCE LEVEL (Sec. 7-2) Sets the input impedance of the Load downstream device that receives the analog Hi-Z Impedance Hi-Z audio signals from FA-9600. FA-9600 600 Ohm Matching adjusts the audio level according to this setting.
Page 109: System Setting Menus
7. System Setting Menus The following menu allows you to overall FA-9600 settings and applied to both FS1 and FS2. 7-1. GPI UTILITY / INPUT / OUTPUT FA-96GPI or FA-96DB9-CBL option is required for GPI input / output functions. The FA-96GPI option card provides GPI 10 inputs and 10 outputs and should be installed into Slot B or C.
Page 110 GPI SETTINGS (if the FA-96DB9-CBL installed on Slot E) Required FA-96DB9-CBL (Slot E) Option GPI Settings  Select input or output. (FA-96DB9-CBL, Slot E only)  Select a port under Port and function under Level 1 and Level 2. Available Level 2 settings will change according to Level 1 selection.
Page 111: Audio System 1, 2
Indicates that AES audio is coming in Option B Audio In Indicates that AES audio is coming into Option B. Default Outputs a tally signal when the current FA-9600 settings Event Tally No.001-100 coincide with those stored in the selected event.
Page 112: Audio Mute / Test Signal
◆ AUDIO SYSTEM 2 Sets the duration to determine digital audio input Silence signals are silent. 1 – 10 sec Detection 2 sec Digital audio input signals are judged as silent Time after the silent state lasts the set duration. -72 dBFS Silence -66 dBFS...
Page 113: Dante System
Genlock Source: Transmits Dante audio Type Clock Genlock Source synched with the SDI output. To use this setting, set Clock Settings for FA-9600 to Enable Sync to External in the Dante Controller. Item Display Description Displays the FA-9600 status as a Dante device.
Page 114: Front Panel Settings
This section explains how to adjust the frequency deviation of the built-in oscillator in free- running mode. Different from signal generators, the FA-9600 built-in signal oscillator is not temperature compensated. Therefore, the frequency deviation changes due to ambient temperature changes.
Page 115 <Connection> Connect the FA-9600 to the waveform monitor as shown below. Input a reference to the waveform monitor and function the monitor in external reference mode. AC100-240V 50/60Hz IN OUT1a OUT1b OUT2a OUT2b 3G/HD/SD-SDI 12G/6G/3G/HD/SD-SDI HDMI GENLOCK IN DIGITAL AUDIO IN/OUT...
Page 116: Network Information 1-2
Allows you to set FA-9600 network settings. If network settings are changed, a system reboot message, “System value changed. Please restart!!”, appears. Reboot the FA-9600 after the message is displayed. Note that it takes a certain amount of time until the message is displayed.
Page 117: Mu Operation
Sets the MU Main mode (FA-9600 operation mode). If the MODE setting is changed, a system reboot message, “System value changed. Please restart!!”, appears. Reboot the FA-9600 after verifying the message. Note that it takes a certain amount of time until the message is displayed.
Page 118: Aes / Analog Audio Input Status
7-12. AES / ANALOG AUDIO INPUT STATUS Required FA-96AES-UBL option Required FA-96ANA-AUD option Item Display Description Loss Displays each channel status Ch.1/2 PCM (32kHz), PCM (44.1kHz), PCM (48kHz) of AES audio inputs. Ch.3/4 Silence (32kHz), Silence (44.1kHz), Silence (48kHz) Output Settings is Ch.5/6 Dolby E, displayed if AES ports are...
Page 119: Dante Status / Dante Audio Input Status
7-14. Dante STATUS / Dante AUDIO INPUT STATUS Required option FA-96DNT Item Display Description Displays the FA-9600 status as a Dante device. Normal operation Clock asynchronous indicates the device operates Clock asynchronous Device normally, but is not synced with the Dante network clock.
Page 120: Input Arib B39 Audio Mode
7-16. INPUT ARIB B39 AUDIO MODE Displays the ARIB B39 Audio Mode in ancillary area of SDI input. 7-17. EMB. AUDIO OUT STATUS Item Display Description Ch.1/2 Ch.3/4 PCM, PCM (Async) Ch.5/6 Mute, Mute (Async) Ch.7/8 Displays each embedded audio channel Dolby E, Dolby E (Async) status of the FS1 or FS2 SDI output.
Page 121: Aes / Analog Audio Out Status
7-19. AES / ANALOG AUDIO OUT STATUS * If FA-96AES-UBLC is installed, “(UBLC)” is displayed in the menu title, since UBLC has become the standard output of AES audio. Required FA-96AES-UBL option Required FA-96ANA-AUD option Item Display Description PCM, PCM (Async) Displays each channel status of AES Ch.1/2 Mute, Mute (Async)
Page 122: Dante Output Status
7-21. Dante OUTPUT STATUS Required FA-96DNT option Item Display Description Displays the output channel status of Ch.1/2 to Ch.31/32 Mute Dante audio. 7-22. FAN / DC POWER / TEMP. STATUS Displays states of FAN 1 to 3, Power 1 and 2 (FA-96PS) and FPGA1-2 temperature. 7-23.
Page 123: Main Unit Info
7-24. MAIN UNIT INFO. Displays the FA-9600 serial product number and unit name. 7-25. Option Information Displays the option slot status.
Page 124: Event Memory
8. Event Memory Each FA-9600 unit can save and load 10 sets of event memory data. ◆ LOAD EVENT MEMORY Selects an event number for loading from Event1-100 and Default and press F3 UNITY to load the event. Before loading events, the “Event Load executed!!” message appears in the bottom of the menu.
Page 125: Items Not Stored In Event Memory
◆ Notes on Event Memory  Do not power off the FA-9600 unit while saving data to event memory. Otherwise, event data is not stored correctly.  Wait at least 5 seconds and power off the FA-9600 unit before changing settings, since the unit regularly auto-saves setting data.
Page 126: Installing Windows Gui Software
9. Installing Windows GUI Software 9-1. System Requirements To use the Windows GUI, your computer must meet the following requirements. Windows 10 Pro (32/64bit) (macOS is not supported.) Intel Core i5-6300U CPU@2.40 GHz or higher 2 GB or more Display Resolution: 1280×1024 pixels or better recommended Full color (24-bit) or more Network port...
Page 127: Processor Control Gui Launcher
GUI control unit within them. Install the Processor Control GUI Launcher into your computer and register FA-9600 units. The GUI Launcher can run in the same system as FA-9600 Windows GUI. (See Sec. 9-1. “System Requirements.”) 10-1. Installing the GUI Launcher (1) Open the Processor Control GUI Launcher folder in the supplied CD-ROM and double-click the Setup file to start the setup wizard.
Page 128: Registering Fa-9600 Units
(1) Click Add Unit to open the ADD Unit window. (2) Enter the IP address and Unit Name (arbitrary name for identification) and click OK. (3) The FA-9600 unit is registered, displayed in the Launcher screen list, and automatically connected to the unit.
Page 129: Deleting Fa-9600 From The List
10-5. Deleting FA-9600 from the List (1) To delete an FA-9600 unit from the list, click Disconnect to disconnect all unit connection. (2) Right-click on the FA-9600 to display the context menu. (3) Click Remove to remove the unit entry.
Page 130: Starting Windows Gui / Web Gui
LUT/Gamut data import to FA-9600 Available Network settings Party available Available SNMP settings Available 11-2. Starting Windows GUI Launch the Windows GUI using the Processor Control GUI Launcher. Double-click a connected FA-9600 unit in the registration list to launch the Windows GUI.
Page 131: Starting The Web Gui
11-3-1. Using the Processor Control GUI Launcher (1) Select the FA-9600 in the registration list and right-click on it to display the context menu. (2) Select Start Web GUI in the menu to open the web browser and connect to the FA-9600.
Page 132: Using A Web Browser
(1) Verify that the FA-9600 and the control computer is connected via LAN. (2) Launch your web browser in the computer. (3) Enter the FA-9600 IP address in the address bar of the web browser. (FA-9600 default IP address is 192.168.0.10.) 11-3-3.
Page 133: Alarm Indicators And Messages
The status bar in the bottom of the screen provides alarm indicators and message field. Alarm indicators Message field <Alarm indicators> Indicates the FA-9600 fan status.: Green: Normal, Red: Error Power Indicates the FA-9600 power status: Green: Normal, Red: Error. Temp...
Page 134: Windows Gui / Web Gui Operation
12. Windows GUI / Web GUI Operation 12-1. Main Unit [Windows GUI] Click the Main Unit tab to open the Main Unit window. [Web GUI] Click the page list icon at the top-left corner of the window to display the page list. Click Main Unit in the page list to display the Main Unit screen.
Page 135: Verifying / Changing Device (Unit) And Fs Names
In such cases, first, verify that the restart message “System value changed. Please restart!!” is also shown on the MU front panel display, then, restart the FA-9600 and GUI. Note that it may take some time for the restart message to appear on the front panel.
Page 136: Video Settings
12-2. Video Settings [Windows GUI] Click the Video tab in the GUI screen to display the Video Block diagram as shown below. [Web GUI] Click Video in the page list to display the Video Block diagram.
Page 137: Input Select
12-2-1. Input Select Click Input Select in the Video Block to display the menu. Note that FS2 (FS2 Synchronizer) is not displayed in 3D-LUT mode. [Windows GUI] The Left block is for FS1 (FS1 Synchronizer) settings and the Right block is for FS2 (FS2 Synchronizer) settings.
Page 138 Color normal video. (FS1/2) SDI Output Mute SDI Output Mute: Outputs no video signal so that the FA-9600 downstream device can detect video loss. See <p 51> for 4K multi-link input loss. Back Color (Link): Outputs a monochrome Loss Mode Back Color (Link) (set under Back Color below) video.
Page 139 Loss Mode Back Color Auto Freeze video. SDI Output Mute SDI Output Mute: Outputs no signal so that the FA-9600 downstream device can detect video loss. Black, Blue, Red, Selects a monochrome used for Loss Mode Back Color Black Magenta, Green, settings.
Page 140: Synchronizer 1 And 2
12-2-2. Synchronizer 1 and 2 Click Synchronizer 1 or Synchronizer 2 in the Video Block to display the menu below. See Sec. 5-37. “SYNCHRONIZER” for details on adjusting signal timing. See Sec. 5-33. “ANC USER PACKET” for details on user packets. [Windows GUI] [Web GUI]...
Page 141 Item Default Setting Description Selects the reference mode. If the genlock and video signals are not synchronous, set to Frame. The adjustable range can be offset from the standard position (H:0, V:0) using the Timing setting. See Sec. 5-37. "SYNCHRONIZER." for Frame the details.
Page 142: Converter 1-2
12-2-3. Converter 1-2 Click Converter 1 or Converter 2 in the Video Block to display the menu as shown below. [Windows GUI] A converter flow will be displayed in the top. Click a block in the flow diagram to display the detailed settings below.
Page 143: If Format Convert Selected (Fa-96Udc)
12-2-3-1. If Format Convert Selected (FA-96UDC) [Windows GUI] [Web GUI]...
Page 144 Item Default Setting Description FS1 Converter Selects a Converter1 input Synchronizer 1 Synchronizer Source Select source. (Simultaneous 4K/HD Synchronizer 2 mode only) (Converter 1 only) Specifies the converter output format. Follow Input Follow Input: Converter input Format Convert Follow Input signal format Manual Manual: Signal format specified...
Page 145: If Delay Selected
12-2-3-2. If Delay Selected [Windows GUI] [Web GUI] Item Default Setting Description Allows you to add a delay to converter output in 0.5 frames. <3G-Level B, 1080i and SD outputs> Per 0.5 frames for progressive input or aspect (*1) Delay 0.0 to 8.0 conversion and per one frames for other cases.
Page 146: If Resize Selected (Converter 1 Only In Simul 4K/Hd Or 3D-Lut)
12-2-3-3. If Resize Selected (Converter 1 only in Simul 4K/HD or 3D-LUT) [Windows GUI] [Web GUI] (Scrolling up and down to go through the page.) ◆ Scaling Item Default Setting Description Disable Enables/disables scaling or positioning up to 2K size for Scaling Disable Size, Position and Crop.
Page 147 The following settings are available if Scaling is set to Enable. ◆ Size/Position / Crop Item Default Setting Description Selects the horizontal image size ratio Horizontal Size 100.0% 50.0 to 150.0% after conversion. Selects the vertical image size ratio after Vertical Size 100.0% 50.0 to 150.0%...
Page 148: If Detail 1 Selected (Converter 1 Only In Simul 4K/Hd Or 3D-Lut)
12-2-3-4. If Detail 1 Selected (Converter 1 only in Simul 4K/HD or 3D-LUT) [Windows GUI] [Web GUI] (Scrolling up and down to go through the page.) ◆ HD/SD Details If using 2K signals (converting 2K to 2K), this parameter can enable / disable Anti Alias, Enhancer and Noise Reducer (see the next chapter) together.
Page 149 ◆ Horizontal / Vertical Anti Alias Item Default Setting Description If set to Auto, a recommended Frequency value is automatically set according to the Auto H/V Anti Alias Auto input and output image size ratio. If set to Manual Manual, the Frequency value can be adjusted manually.
Page 150: If Detail 2 Selected (Converter 1 Only In Simul 4K/Hd Or 3D-Lut)
12-2-3-5. If Detail 2 Selected (Converter 1 only in Simul 4K/HD or 3D-LUT) [Windows GUI] [Web GUI] ◆ Directional Interpolation (for Up-Converting to UHD 4K) FA-964K option required Dual HD mode unsupported Item Default Setting Description Disable Enables/disables Edge Detect Level setting. Enable/ Enable Disable...
Page 151: Color Processor Source Select
12-2-4. Color Processor Source Select Click Color Processor Source Select in the Video Block to display the menu as shown below. FS2 is not supported in 3D-LUT mode. Converter1 and Converter2 buttons and status are displayed with FA-96UDC option. [Windows GUI] [Web GUI] Item Default...
Page 152 12-2-5. Color Processor 1, 2 Click Color Processor 1 or Color Processor 2 in the Video Block menu. <Simultaneous 4K/HD mode> <Dual HD mode> The Preset Event Recall screen is displayed. Preset Event buttons are provided and allow you to instantly load complex color space and dynamic range settings simply by pressing these buttons.
Page 153 [Windows GUI] [Web GUI] (Scrolling up and down to go through the page.)
Page 154 <3D-LUT mode> The Color Processor menu appears differently in 3D-LUT mode. [Windows GUI] [Web GUI] (Scrolling up and down to go through the page.) Pre-process Amplifier/Post-process Amplifier See Sec. 12-2-5-2. “Pre-process Amplifier/Post-process Amplifier” for menu details. Dynamic Range / Color Space Conversion Item Default Setting...
Page 155: Input / Output Gamma / Color (Dynamic Range Conversion)
12-2-5-1. Input / Output Gamma / Color (Dynamic Range Conversion) Click Color Processor 1 or Color Processor 2 in the Video Block and select Input Gamma / Color or Output Gamma / Color to display the menu as shown below. ◆...
Page 156 ◆ Input (Gamma / Color) Item Default Setting Description Selects a gamma curve for input. Gamma setting data as shown at left User 01: SDR 2.2 BT.1886 are respectively stored in files named User 02: SDR 2.4 BT.1886 User 01 to User 10. User 03: HLG BT.2100 Gamma data names and content can User 04: HLG (RGB...
Page 157 [Web GUI] Item Default Setting Description System Gamma 1.0 to 2.0 Sets the gamma value. 1000 100 to 10000 Sets the maximum luminance Display Peak cd/m2 cd/m2 peak for Display Light. Sets the minimum luminance peak Display Black 0 cd/m2 0 to 100 cd/m2 for Display Light.
Page 158: Pre-Process Amplifier/Post-Process Amplifier
12-2-5-2. Pre-process Amplifier/Post-process Amplifier Click Color Processor 1 or Color Processor 2 in the Video Block and select Pre-process Amplifier or Post-process Amplifier to display the menu as shown below. Post Process settings require the FA-96AHDR or AHDR2 option. [Windows GUI] [Web GUI] Setting Item...
Page 159: Dynamic Range Gain
12-2-5-3. Dynamic Range Gain Click Color Processor 1 or Color Processor 2 in the Video Block and select Dynamic Range Gain to display the menu as shown below. [Windows GUI] [Web GUI] (Scrolling up and down to go through the page.) Item Default Setting...
Page 160: Differential Color Correct
12-2-5-4. Differential Color Correct Click Color Processor 1 or Color Processor 2 in the Video Block and select Differential Color Correct to display the menu as shown below. [Windows GUI] [Web GUI] (Scrolling up and down to go through the page.) Item Default Setting...
Page 161: Pre-Balance Color Correct / Post-Balance Color Correct
12-2-5-5. Pre-Balance Color Correct / Post-Balance Color Correct Click Color Processor 1 or Color Processor 2 in the Video Block and select Pre-Balance Color Correct or Post- Balance Color Correct to display the menu as shown below. [Windows GUI] [Web GUI] (Scrolling up and down to go through the page.) Item Default Setting...
Page 162: Rgb Clip / Knee
12-2-5-6. RGB Clip / Knee Click Color Processor 1 or Color Processor 2 in the Video Block and select RGB Clip / Knee to display the menu as shown below. [Windows GUI] [Web GUI] (Scrolling up and down to go through the page.) ◆...
Page 163: Ycbcr Clip
◆ Knee Saturation (Enabled when Clip Mode =Y Knee) Item Default Setting Description Disable Enables / disables the Saturation Level Saturation Disable Enable setting below. Sets the Saturation Level for the knee correction (high luminance) areas. Level 0 - 200% The smaller the value, the more colors are desaturated.
Page 164: Other
12-2-5-8. Other Click Color Processor 1 or Color Processor 2 in the Video Block and select Other to display the menu . Split Mode and Over Range Area Marker are not displayed in 3D-LUT mode. [Windows GUI] [Web GUI] Item Default Setting Description...
Page 165: Preset
Luminance: Marks pixels above the high threshold when enabling RGB Clip. Gamut: Marks pixels whose RGB values exceed the range between 0 and 1.0. Color Green Selects the marker color. Blue Disable Blink Disable Toggles marker flashing on/off. Enable 12-2-5-9. Preset Clicking Color Processor 1 or Color Processor 2 in the Video Block and select Preset (in Window GUI) or Event Recall tab (in Web GUI) to displays the Preset Event Recall screen.
Page 166: Ancillary Processor 1, 2
12-2-6. Ancillary Processor 1, 2 Click Ancillary Processor 1 or Ancillary Processor 2 in the Video Block to display the menu. Switch the display by pressing Multiplexer or Time Code button or tab) at the top of the window. 12-2-6-1. If Multiplexer Selected [Windows GUI] [Web GUI] (Scrolling up and down to go through the page.)
Page 167 ◆ Horizontal Ancillary Multiplex Item Default Setting Description Selects the HANC data insertion mode to each FS output. Overwrite: Inserts the input HANC data in which audio and timecode data are rewritten. Overwrite Pass: Inserts the input HANC data without Mode Overwrite Pass...
Page 168 ◆ Vertical Ancillary Multiplex Item Default Setting Description Selects the VANC data insertion mode. Pass: Passes through the input VANC data without processing. If input and output signal formats are different, the VANC space becomes blank. If the SDI input and reference are not synchronized, packet loss Pass or duplication may occur due to timing adjustment.
Page 169: If Time Code Selected
12-2-6-2. If Time Code Selected: [Windows GUI] [Web GUI] (Scrolling up and down to go through the page.) ◆ Input Time Code Status Displays the timecode detection status in the SDI input. "N/A" indicates no timecode. ◆ Time Code Multiplex Allows you to select whether to insert timecode (DVITC, ATC (LTC) and ATC (VITC) to the SDI output on each FS.
Page 170 ◆ Time Code Generator Allows you to generate LTC (at left) or VITC/DVITC (at right) timecodes for output. To use LTC timecodes, set Mode to Overwrite in the Horizontal Ancillary Multiplex block of the Multiplexer screen and ATC(LTC) to Enable in the Time Code screen. To use VITC/DVITC timecodes, set Mode to Rewrite in the Vertical Ancillary Multiplex block of the Multiplexer screen and ATC(VITC) or DVITC to Enable in the Time Code screen.
Page 171: Output Select
12-2-7. Output Select Click Output Select in the Video Block to display the menu as shown below. <Simultaneous 4K/HD mode> <Dual HD mode> [Windows GUI] [Windows GUI] [Web GUI] [Web GUI] SL: Single Link signal P1, Proc.1: <Simultaneous 4K/HD mode> DL: Single Link signal Color Processor1 output(FS1) <3D-LUT mode>...
Page 172 If FA-96SFPC4 installed (SFP or SFP+ module required) Item Default Setting Description Selects an SDI Single Link Link format for UHD Link Single Link Dual Link FA-96SFPC4 Quad Link output. Item (UHD Link) Default Setting Description SL (Proc.1) SL (Proc.2) Single SL (Proc.1) Selects an...
Page 173: Hdmi In
12-2-8. HDMI IN Click HDMI IN in the Video Block to display the menu. Use Format and Status buttons at the top of the window to display submenus. 12-2-8-1. If Format Selected [Windows GUI] [Web GUI] Item Default Setting Description Auto Selects the color format setting mode for HDMI Format...
Page 174: If Metadata Status Selected
12-2-8-2. If Metadata Status Selected [Windows GUI] [Web GUI] The HDR metadata status of HDMI input is indicated under Detection Status as shown below. None Invalid data Unknown All data values are zero (0). Detected Properly detected. HDR metadata values are displayed. No metadata See Sec.
Page 175: Hdmi Out
12-2-9. HDMI OUT Click HDMI OUT in the Video Block to display the menu as shown below. Use Format, Metadata and Metadata Status buttons at the top of the window to display submenus. 12-2-9-1. If Format Selected [Windows GUI] [Web GUI] Item Default Setting...
Page 176: If Metadata Selected
12-2-9-2. If Metadata Selected [Windows GUI] [Web ]...
Page 177 Item Default Setting Description Selects the HDR metadata to be inserted into HDMI OUT. Pass: HDMI IN inserted metadata (Enabled only Pass when INPUT SELECT is set to HDMI IN and in other Metadata Overwrite Overwrite cases, same data as Overwrite > Auto setting.) Output Disable Overwrite: Metadata set under “Overwrite Data”...
Page 178: If Metadata Status Selected
12-2-9-3. If Metadata Status Selected [Windows GUI] [Web GUI] The Status menu shows the following metadata values that should be inserted into the HDMI OUT. EOTF Display Mastering Luminance ---- Max., Min. Luminance Level --------------------- Max CLL, Max FALL Gamut ----------------------------------- Status Primaries --------- RGB (x, y) White Point ------ (x, y)
Page 179: Timing Setting
12-2-10. Timing Setting Click Timing Setting in Video Block to display the menu as shown below. [Windows GUI] [Web GUI] (Scrolling up and down to go through the page.) The path of the current processing flow, which varies depending on Color Processor Source Select settings, is displayed and different process timings can be adjusted in the window.
Page 180: Ltc Out Select (Fa-96Din4-Cbl)
12-2-11. LTC OUT Select (FA-96DIN4-CBL) Click LTC OUT Select in the Video Block to display the menu as shown below. [Windows GUI] [Web GUI] The LTC OUT on FA-96DIN4-CBL outputs an internally generated timecode. This menu selects which timecode generator to be used. If LTC OUT is unavailable due to format conversion, a message, “Cannot use with Generator”, is displayed on the menu.
Page 181: Ancillary Status
12-2-14. Ancillary Status Click Ancillary Status in Video Block to display the menu as shown below. [Windows GUI] [Web GUI] This menu allows you to check ancillary data inserted in the SDI input signal. If a checksum error occurs, “Error” is displayed. 12-2-15.
Page 182: Audio Settings
12-3. Audio Settings [Windows GUI] Click the Audio tab in the GUI screen to display the Audio Block diagram as shown below. [Web GUI] Click Audio in the page list to display the Audio Block diagram.
Page 183: Audio In (Fs 1 / Fs 2 / Aes / Option)
12-3-1. Audio IN (FS 1 / FS 2 / AES / Option) Click FS 1 IN, FS 2 IN, AES IN or Option IN in the Audio Block to display the Audio Input Window, in which input audio clock and timing can be adjusted. 12-3-1-1.
Page 184: Aes Audio
12-3-1-2. AES Audio To set Standard AES and optional FA-96AES-UBLC AES audio, click AES. To set the Slot B option audio (FA-96AES-UBL or FA-96ANA-AUD), click Option B. [Windows GUI] [Web GUI] (Scrolling up and down to go through the page.) Item Default Setting...
Page 185: Analog
12-3-1-3. Analog [Windows GUI] [Web GUI] (Scrolling up and down to go through the page.) Item Default Setting Description -10 dBu Analog Input Level 0 dBu Sets the signal level for each +4 dBu +4 dBu analog audio input channel. Ch.1-4 Level +8 dBu Audio Input Setting...
Page 186: Source Select
12-3-2. Source Select Click Source Select in the Audio Block to display the following menu. [Windows GUI] [Web GUI] Item Default Setting Description Selects audio Embedded 1 Ch.1-4 source channels Embedded 1 Input Ch.1-4 to Ch.13-16 Input Ch.1-4 per 4 channels. Embedded 2 Input Ch.1-4 to Ch.13-16 AES Input Ch.1-4 Embedded 1...
Page 187: Input Delay
12-3-3. Input Delay Click Input Delay in the Audio Block to display the following menu. [Windows GUI] [Web GUI] (Scrolling up and down to go through the page.) Allows you to add delay to the selected 32 audio source channels by using the Channel 1-16 and Channel 17-32 buttons to switch channels.
Page 188: Sampling Rate Converter
12-3-4. Sampling Rate Converter Click Sampling Rate Converter in the Audio Block to display the following menu. [Windows GUI] [Web GUI] Item Default Setting Description Sets the SRC processing mode for each channel pair. Auto: PCM audio is processed by the SRC. Non- PCM audio is not processed by the SRC.
Page 189: Output Mapping
12-3-5. Output Mapping Click Output Mapping in the Audio Block to display the following menu. For FS1 SDI embedded audio, click Embedded 1. For FS2 SDI embedded audio, click Embedded 2. For AES audio of standard and FA-96AES-UBLC option, click AES. For FA-96AES-UBL, FA-96ANA-AUD, FA-96MADI or FA-96DNT, click Option B.
Page 190: Mono Sum/Downmix/Mute/Test Signal
12-3-6. Mono Sum/Downmix/Mute/Test Signal Click Mono Sum Downmix Mute Test signal in the Audio Block to display the Other Output Mapping menu. Use Downmix 1, Downmix 2, Mono Sum or Mute/Test to open submenus. 12-3-6-1. If Downmix 1 or Downmix 2 Selected [Windows GUI] [Web GUI] (Scrolling up and down to go through the page.) Item...
Page 191: If Mono Sum Selected
Mix Source Assign Downmix 1 Left Source Ch.1 Right Source Ch.2 Selects an audio source (*1) Source Ch.1-32 Center Source Ch.3 for the selected Silence channel. Left Surround Source Ch.5 Right Surround Source Ch.6 Downmix 2 Left Source Ch.17 Right Source Ch.18 Selects an audio source (*1)
Page 192: If Mute / Test Selected
12-3-6-3. If Mute / Test Selected [Windows GUI] [Web GUI] Item Default Setting Description Disable Allows you to mute all output audio All Mute Disable channels. Enable Allows you to assign an audio test signal to Test Tone the embedded audio on the FS1 SDI Embedded 1 output.
Page 193: Audio Gain (Fs 1 / Fs 2 / Aes / Option)
12-3-7. Audio Gain (FS 1 / FS 2 / AES / Option) Click FS 1 Gain, FS 2 Gain, AES Gain or Option Gain in the Audio Block to display the Gain Window, in which output audio can be gained or muted. For FS1 SDI embedded audio, click Embedded 1.
Page 194: Audio Delay (Fs 1 / Fs 2 / Aes / Option)
12-3-8. Audio Delay (FS 1 / FS 2 / AES / Option) Click FS 1 Output Delay, FS 2 Output Delay or AES/Option Output Delay in the Audio Block to display the Output Delay Window, in which output audio and video can be aligned. For FS1 SDI embedded audio, click Embedded 1.
Page 195: Aes / Analog / Madi / Dante Audio
12-3-8-2. AES / Analog / MADI / Dante Audio [Windows GUI] AES Audio Setting Analog or MADI Audio Setting [Web GUI] AES Audio Setting Analog or MADI Audio Setting Item Default Setting Description Standard AES audio output setting Disable: Disables delay adjustment, Same as FS1: Same as FS2: Disable...
Page 196: Audio Out (Fs 1 / Fs 2 / Hdmi / Option)
Optional MADI audio output setting Additional Audio Delay(MADI) (Same as above) Optional Dante audio output setting Additional Audio Delay(Dante) (Same as above) Item Description Displays the channel number and status of audio source Selected Dolby E automatically assigned to Dolby E Alignment. (1 system) Alignment A Pressing the button adjusts the audio delay.
Page 197 [Web GUI] Vertical Ancillary Multiplex Item Default Setting Description Selects VANC data insertion mode. Pass Mode Pass See the Mode setting in Vertical Ancillary Multiplex Rewrite (Sec. 12-2-6-1. "If Multiplexer Selected.") Selects the ARIB STD-B39 payload identifier Disable insertion mode. ARIB Overwrite Through...
Page 198: Hdmi Audio
+4 dBu +4 dBu channel. Level +8 dBu Sets the input impedance of the downstream Load Hi-Z device that receives the analog audio signals Impedance Hi-Z from FA-9600. FA-9600 adjusts the audio 600 Ohm Matching level according to this setting.
Page 199: Madi Audio
12-3-9-4. MADI Audio [Windows GUI] [Web GUI] Item Default Setting Description Selects an MADI signal output mode. 56ch Mode: 56-channel mode 56ch Mode 64ch Mode: 64-channel mode 64ch 64ch Mode Mode Mode Input Through Input Through: Outputs MADI input Output Disable signal without change.
Page 200: Audio System
12-3-10. Audio System Click Audio System in the Audio Block to set audio output signals. 12-3-10-1. Common Settings [Windows GUI] [Web GUI] Item Default Setting Description Selects the reference level for digital audio signals. This level is also used as the test Reference -18 dBFS -20 dBFS...
Page 201: Analog Audio
Selects the way to handle output audio when an error is detected in the input audio. Disable: Passes through input audio without Disable Error Fade Disable using any effects. Enable Enable: Fades out and mutes audio when an input error is detected and fades in when recovered.
Page 202: Dante Audio
Dante Dante Clock Clock synched with the SDI output. To use this Clock Genlock Source Type setting, set Clock Settings for FA-9600 to Enable Sync to External in the Dante Controller. Dante Reboots the Dante device (FA-9600). － Device Use this if reboot is required by changes in Reboot Dante Controller.
Page 203: Input Status
12-3-11. Input Status Click Input Status in the Audio Block to display the audio channel output status. [Windows GUI] [Web GUI] (Scrolling up and down to go through the page.)  FA-96AES-UBL audio status is displayed under AES (Option B). ...
Page 204: Phase Status
12-3-11-1. Phase Status Click Phase Status in the Input Status window displays the audio output phase status. [Windows GUI] [Web GUI] Item Display Description Warning: Displays the number of corrected audio timing Warning information errors. Group1-4 Error Error: Displays the number of uncorrected audio timing information errors.
Page 205: Gpi Settings
12-4. GPI Settings Click the GPI tab in the GUI screen to display the menu as shown below. [Windows GUI] [Web GUI] ◆ GPI Slot The FA-96GPI installed slot is active (Slot C and E in the above example) in the menu. Click the active slot to display the setting screen.
Page 206 Audio In Audio In: Selects an audio input for status notification. Port 1- Event Tally Event Tally: Selects an event number used to compare to FA-9600 settings. Sets the GPI alarm output signal logic. Normal Normal: Active low Normal Invert...
Page 207 Audio In Audio In: Selects an audio input for status Port 1-7 notification. Event Tally Event Tally: Selects an event numbers used to compare to FA-9600 settings. Sets the GPI alarm output signal logic. Normal Normal Normal: Active low Invert...
Page 208: Event Operation
12-5. Event Operation Windows and Web GUI event menus. Some functions such as Import and Export events are available only on the Web GUI.  Frame１ menus (Start up Event, Event Load, Event Save) in the figures below are common to the Windows GUI and Web GUI.
Page 209: Start Up Event / Event Load / Event Save
Event memory buffer. Up to 100 events can be stored. Once an event (all settings of FA- 9600) is stored to the event memory, FA-9600 can be restored to the states when the event was saved by loading the event Select an event to be loaded at startup.
Page 210: Event Save Limit (Web Gui)
(Only for events saved in FA-9600) Event Save Limit is disabled under the following Event Save operations:  Saving events by GPI commands sent by FA-9600 and Remote controller (FA-10RU).  Saving events by control commands remotely sent to FA-9600.
Page 211: Uploading Linkage Events
For example, edit only Audio OUTPUT MAPPING settings in a csv file and delete other menu items from the file. Then, import the file to an FA-9600 event and load the event to apply changes only to the Audio OUTPUT MAPPING menu. Thus, event data specialized to particular menus can be created.
Page 212 F1_BT.2020.csv file in the folder. (You can also edit the sample file and upload the edited file, as needed. See Sec 13. “Event Data (CSV File)” for event data editing.) (5) Click Import to save the event in the FA-9600.
Page 213: All Data (Web Gui)
12-5-5. All Data (Web GUI) Allows you to backup and restore all current settings of FA-9600. Backing up FA-9600 Settings Click Backup. In some seconds, all current settings of the FA-9600 are stored in the backup file named “fa9600_parameter.zip.” Restoring Settings to FA-9600 (1) Click a zip file to specify the backup file.
Page 214: Data Page (Web Gui)
>> See 3D-LUT in Sec. 5-7 “IN/OUT GAMMA/COLOR.” ◆ 1D-LUT Data Import Upload local gamma curve data stored as a 1D-LUT (lut file) to FA-9600. (1) Click Browse… to select a lut file. (2) Select a User number. (3) Click Import to upload the file data to the selected number.
Page 215: Lut And Gmt Files
This chapter explains how to create and edit these files. Use only one-byte alphanumeric characters and start with “#” for comments. Default Gamma Curve (.lut) files and Gamut (.gmt) files are provided on the FA-9600 CD- ROM. Use these sample files for your reference.
Page 216: Bin (3D-Lut) File
◆ Gamut A Gamut sample file (.gmt file) is shown below. Enter this information in the first line. Gamut name with up to 15 alphanumeric characters. xy chromaticity values for Primaries (Red, Green, Blue) and White Point (See below) Specify YCbCr and RGB transfer matrices: 0: BT.
Page 217: Network Settings (Windows Gui)
The current network settings are displayed in the screen. Item Default Description IP Address 192.168.0.10 IP address, netmask and default gateway of FA-9600 Subnet Mask 255.255.255.0 LAN port. Default Gateway 0.0.0.0 TCP port number used for Windows GUI or Remote...
Page 218: Network Page (Web Gui)
12-8. Network Page (Web GUI) Click the Network tab in the Web GUI to display the menu, in which FA-9600 network and SNMP settings can be checked and changed. 12-8-1. Network Tab ◆ Network Setting Item Default Description IP Address 192.168.0.10...
Page 219: Snmp Tab
◆ Event Tally (At the bottom of the menu page. Scroll down to display) Item Default Description Notify 1, 2 Unused Event number to be monitored by event tally. Time interval between two regularly sent tallies Interval 30 Sec (Setting range: 5-255 sec.) Pressing Apply is not needed for changing settings.
Page 220: Snmp Trap Tab
After changing settings, click Apply. A confirmation message will appear and changes are indicated in yellow. In the same time, a message is displayed and prompts you to restart the FA-9600. Restart the FA-9600 to confirm changes. 12-8-3. SNMP Trap Tab ◆...
Page 221: Status
Click Unit Status in the page list to display the menu. Product Number, MAC address, Versions and option status for the FA-9600 are displayed If FA-96SFPC4 option is installed, the Module Status button is displayed in the Slot A Information...
Page 222 [Windows GUI] [Web GUI] Item Description Temperature Displays the SFP module internal temperature. Supply Voltage Displays the power voltage supplied to SFP modules. Tx Bias Current Displays the bias current of transmitter modules. Tx Output Power Displays the transmitted optical power of transmitter modules. Rx Optical Power Displays the input optical power of receiver modules.
Page 223: Event Data (Csv File)
13. Event Data (CSV File) Event data is stored in the computer as csv files, which are editable and allow you to change FA-9600 settings. The appendix explains syntax and rules of csv files and how to edit the files.
Page 224: Event Data Editing Example (Event Name Change)
If using an existing event file: (1) Export an event file from the FA-9600 to the Web GUI. Open the file using a text editor. (See Sec. 12-5-4-1. "Importing / Exporting Events" for how to export events to the Web GUI.) (2) Type the text above anywhere in the csv file.
Page 225: Event Tally
Click the Network Settings tab and set the following items in the tab window. (See Sec. 12-8-1. ”Network.”) Click Apply after changing settings. Click OK to confirm in the confirmation dialog. A message appears and prompts you to restart the FA-9600. Click OK to restart the FA- 9600 and apply changes. Item...
Page 226: Tally Format
13-4-2. Tally Format Notice,<Event Tally number>,<Event number>,<DIFF or Same>[CR][LF] Tally messages sent from FA-9600 are composed of 4 elements (parameters) separated from each of them by a comma “, .” Parameter Value Description EventTally01 Event Tally number Event Tally number...
Page 227: Fa-9600 Event Editor
13-5. FA-9600 Event Editor ◆ System Requirements The Event Editor can run in the same system as FA-9600 Windows GUI. (See Sec. 9-1. “System Requirements.”) ◆ Installing FA-9600 Event Editor (1) Open the FA-9600 Event Editor folder in the supplied CD-ROM and double-click the Setup file to start the setup wizard.
Page 228 Clicking Search(S) displays the window, in which data location of items that are to be saved to events can be searched. If the data is in a file in the PC, select Local Search. If the data is an event in the FA-9600, select Remote Search. Local Search...
Page 229 Item Description Folder Enters and displays the folder to be searched.(Local Search only) IP Address Enters and displays the FA-9600 IP address to be searched. (Remote Search only) Ignore Search parameters regardless of their values. Parameter Recognize Search parameters and values.
Page 230: Snmp Monitoring
14. SNMP Monitoring The FA-9600 can be remotely monitored using the SNMP v2c protocol. MIB (Management Information Base) required for the monitoring is included in the supplied CD-ROM. See Sec. 12-8-2 "SNMP Tab" and Sec. 12-8-3. “SNMP Trap Tab” for details about the SNMP network settings.
Page 231 OCTET STRING ✔ Input HDMI Status fa9600InputVideoStatusHdmi See Sec. 14-2 OID : 1.3.6.1.4.1.20175.1.338.1.2.2.2 ( Output Video Status ) fa9600OutputVideoStatusSdi1A See Sec. 14-1 OCTET STRING Output SDI1 Status fa9600OutputVideoStatusSdi1B See Sec. 14-1 OCTET STRING Output Status fa9600OutputVideoStatusSdi2A See Sec. 14-1 OCTET STRING Output SDI2 Status fa9600OutputVideoStatusSdi2B See Sec.
Page 232 OID : 1.3.6.1.4.1.20175.1.338.1.2.4.2.2.1.1 ( FA-96ANA-AUD Status(Slot B) ) Channel fa96AnaAudStatusBChannel 1 - 4 1.(1-4) INTEGER *1*2 FA-96ANA- fa96AnaAudStatusBChannelStat 0: silence ✔ AUD Status Audio Status 11.(1-4) INTEGER 1: present OID : 1.3.6.1.4.1.20175.1.338.1.2.4.2.3 (FA-96MADI Status(Slot B) ) 0: loss, 1: present-32k-56ch 2: present-32k-64ch 3: present-44k-56ch Signal...
Page 233: Sdi Video Status Information Examples
FA-96EX3G44-R SDI fa96Ex3G44RInputSdiSt fa96Ex3G44RInputSdi EX3G SDI In2 1102 IN2 input format change atus2Changed Status2 FA-96EX3G44-R SDI fa96Ex3G44RInputSdiSt fa96Ex3G44RInputSdi EX3G SDI In3 1103 IN3 input format change atus3Changed Status3 FA-96EX3G44-R SDI fa96Ex3G44RInputSdiSt fa96Ex3G44RInputSdi EX3G SDI In4 1104 IN4 input format change atus4Changed Status4 FA-96SFPC input status...
Page 234: Hdmi Video Status Information Examples
1920x1080/60i 3840x2160/48p [Level-A] 2SI 4096x2160/30p [Level-B] SQD 1920x1080/59.94i 3840x2160/48p [Level-A] SQD 4096x2160/29.97p [Level-B] 2SI 1920x1080/50i 3840x2160/48p [Level-B] 2SI 4096x2160/29.97p [Level-B] SQD 1920x1080/24PsF 3840x2160/48p [Level-B] SQD 4096x2160/25p [Level-B] 2SI 1920x1080/23.98PsF 3840x2160/47.95p [Level-A] 2SI 4096x2160/25p [Level-B] SQD 1920x1080/30PsF 3840x2160/47.95p [Level-A] SQD 4096x2160/24p [Level-B] 2SI 1920x1080/29.97PsF 3840x2160/47.95p [Level-B] 2SI 4096x2160/24p [Level-B] SQD...
Page 235: Specifications And Dimensions
30% to 90% (no condensation) AC 100 V to 240 V ±10% 50/60 Hz Power Consumption FA-9600: 70 VA (67 W) (at AC 100-120 V) 72 VA (68 W) (at AC 220-240 V) W/ FA-96PS: 70 VA (65 W) (at AC 100-120 V) 86 VA (71 W) (at AC 220-240 V) Max.
Page 236 HDMI optional video 3840 x 2160/60p, 59.94p, 50p, 30p, 29.97p, 25p, 24p, 23.98p format (If output format is set to 3G-SDI Level-B, HDMI output displays black.) (FA-964K) Video input 3G-SDI: 3Gbps (Level-A/B) HD-SDI: 1.5 Gbps or SD-SDI: 270 Mbps 75Ω BNC x 2 (IN2 to OUT2a pass-through possible) (FA-96EX3G44-R) 3G/HD/SD-SDI: 75Ω...
Page 237 Line (Min) mode Horizontal: -1/2 H to +1/2 H Vertical: -1/2 frame to +1/2 frame Delay: <Max> 1 H + 700 clk <Min> 700 clk Converter 1 4K 2SI/SQD conversion, Up-, Down-, Cross-conversions, (FA-96UDC) Aspect ratio conversions, Resizing, Re-positioning, I-P conversions, 3G-SDI Level A/B conversions, Easy frame rate conversions Supporter formats 3840 x 2160/59.94p, 50p...
Page 238 Analog audio input 4 channels (2 stereo pairs) Hi-Z or 600 ohm balanced Analog audio output 4 channels (2 stereo pairs) 100-ohm balanced 25-pin D-sub (female) ×1 (TASCAM pin assignment) (W/ FA-96ANA-AUD) 24-bit / 48 kHz A/D-D/A and internal processing Input/output level adjustment: +8, +4, 0, -10 dBu, Max.
Page 239: External Dimensions
15-2. External Dimensions (All dimensions in mm.) FA-9600 FRAME SYNCHRONIZER FAN ALARM PROC HDR/WCG CLIP POWER LOCK SETUP DWN MIX MAPPING DC POWER INPUT OUTPUT GAIN OPTION EVENT DELAY GENLOCK UNITY UNITY UNITY UNITY VIDEO SYSTEM STATUS DISP ON/OFF ANALOG...
Page 240: Appendix 1: Video Format Conversions
Appendix 1: Video Format Conversions Appendix 1-1: Available Conversions on Converter 1 (FS1) Black video is output when any signal that is not listed in the above tables is specified for converter input or output. <59.94 Hz family> Output ✔: Available conversion ✔...
Page 241 <60 Hz family> Output ✔: Available conversion ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ 2160/60p ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ 2160/30p ✔ ✔...
Page 242 <From 59.94 Hz to 60 Hz> Output ✔: Available conversion ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ 2160/59.94p ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔...
Page 243 <From 50 Hz to 60 Hz> Output ✔: Available conversion ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ 2160/50p ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔...
Page 244 <From 60Hz to 50Hz> Output ✔: Available conversion ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ 2160/60p ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ 2160/30p ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ 2160/30PsF ✔ ✔ ✔...
Page 245: Appendix 1-2: Available Conversions On Converter 2 (Fs2)
Appendix 1-2: Available Conversions on Converter 2 (FS2)  Black video is output when any signal that is not listed in the above tables is specified for converter input or output.  Input/output formats combinations marked as”▲” are available only on Dual HD mode. Using them in Simultaneous 4K/HD or 3D-LUT mode outputs black images.
Page 246 <60 Hz family> Output ✔: Available conversion ✔ ✔ ✔ ✔ ▲ ▲ ✔ ✔ ▲ 1080/60p(A) ✔ ✔ ✔ ✔ ▲ ▲ ✔ ✔ ▲ 1080/60p(B) ✔ ✔ ✔ ✔ ▲ ▲ ✔ ✔ ▲ 1080/30p ✔ ✔ ✔ ✔...
Page 247 <From 59.94 Hz to 60 Hz> Output ✔: Available conversion ✔ ✔ ✔ ✔ ▲ ▲ ✔ ✔ ▲ 1080/59.94p(A) ✔ ✔ ✔ ✔ ▲ ▲ ✔ ✔ ▲ 1080/59.94p(B) ✔ ✔ ✔ ✔ ▲ ▲ ✔ ✔ ▲ 1080/29.97p ✔...
Page 248 <From 60 Hz to 59.94 Hz> Output ✔: Available conversion ✔ ✔ ✔ ✔ ✔ ✔ ▲ ▲ ▲ 1080/60p(A) ✔ ✔ ✔ ✔ ✔ ✔ ▲ ▲ ▲ 1080/60p(B) ✔ ✔ ✔ ✔ ✔ ✔ ▲ ▲ ▲ 1080/30p ✔...
Page 249: Appendix 1-3: Output Delay And Phase In Converter Minimum Delay Mode
Appendix 1-3: Output Delay and Phase in Converter Minimum Delay Mode Output Phase and Delay for 59.94 and 29.97Hz signals Top row in each cell indicates Delay (in μsec or in msec). Bottom row in each cell indicates Phase (in lines). <Output>...
Page 250 Output Phase and Delay for 50 and 25Hz signals Top row in each cell indicates Delay (in μsec or in msec). Bottom row in each cell indicates Phase (in lines). <Output> 2160 1080 <Input> 35.53 106.6 9.742 65.03 9.736 65.03 9.831 9.956 9.878...
Page 251 Output Phase and Delay for 60 and 30Hz signals Top row in each cell indicates Delay (in μsec or in msec). Bottom row in each cell indicates Phase (in lines). <Output> 2160 1080 <Input> 29.6 88.85 8.074 8.118 56.14 8.115 56.14 8.193 8.267...
Page 252 Output Phase and Delay for 47.95 and 23.98Hz signals Top row in each cell indicates Delay (in μsec or in milli-sec). Bottom row in each cell indicates Phase (in lines). <Output> 2160 1080 47.95 23.98 23.98 23.98 23.98 23.98 <Input> 10.3 10.3 37.05...
Page 253 Output Phase and Delay for 48 and 24Hz signals Top row in each cell indicates Delay (in μsec or in milli-sec). Bottom row in each cell indicates Phase (in lines). <Output> 2160 1080 <Input> 37.01 111.1 10.09 10.15 67.25 10.14 67.25 10.29 10.29...
Page 254: Appendix 2: Event Data List
Appendix 2: Event Data List If an optional card or software is required for items (parameters), it is listed under “Required.” Category Target Item Default Value Description Required Ref. Event Adds event names to numbers, which are displayed in menus on the front panel, RU and EventName Event names 13-3...
Page 255 Category Target Item Default Value Description Required Ref. OUTPUT SIDE Peak (Max. Brightness) OOTF OUT Display Peak 1000 100 - 10000 (in 100 increments) OUTPUT SIDE Black (Min. Brightness) OOTF OUT Display Black 0 - 100 (in 10 increments) 0: Adjustment OOTF RGB 1: SR-Live 96AHDR2...
Page 256 Category Target Item Default Value Description Required Ref. Color Correct BAL(Pre) FS1/FS2 White LevelR -2000 to White LevelG 2000 White LevelB White Level Master 1000 0 - 2000 Black LevelR Black LevelG -2000 - 2000 Setting value is one-tenth of input value. Ex) 1235 =>...
Page 257 Category Target Item Default Value Description Required Ref. YCbCr Clip FS1/FS2 0: Disable YCbCr Clip Enable 1: Enable White Clip 1090 500 - 1090 5-12 Setting value is one-tenth of input value. Black Clip -75 - 500 Ex) 565 => 56.5% Chroma Clip 1130 500 - 1130...
Page 258 Category Target Item Default Value Description Required Ref. Ancillary FS1/FS2 0: Overwrite H ANC MUX Mode 1: Pass 5-26 2: Blank 0: Pass H ANC PayloadId 1: Overwrite 0: Auto 1: Manual H ANC VPID DR/CS Mode 2: Auto(Keep Value) 0: Rec.709 1: VANC H ANC VPID Color Space...
Page 259 Category Target Item Default Value Description Required Ref. Unused 2M(D) 3M(D+M) 4M(2D) 5M(2D+M) 6M(3D) 7M(3D+M) 8M(4D) 3/2+LFE(5.1) S+2M(S+D) 5.1+S 3/1+S V ANC ARIB B39 AUDIO 3/2+S MODE 9M Over(M Only) 5S Over(S Only) Other 5.1+2S 5.1+3S 5.1+5.1 5.1+5.1+S 5.1+5.1+2S 7.1+S 7.1+2S 7.1+3S 7.1+5.1...
Page 260 Category Target Item Default Value Description Required Ref. VITC PresetTime SS 0 - 59 VITC PresetTime FF 0 - 29 Video System FS1/FS2 0: Disable Test Signal 1: 100% Color Bar 5-41 2: 75% Color Bar VSYS 0: GENLOCK IN 1: FS1 Genlock Source 5-37...
Page 261 Category Target Item Default Value Description Required Ref. HDMI Out HDR Meta 1 - 65535 Input value is used without change. MaxFALL FA-96UDC FS1/FS2 Converter1 Source 0: Synchronizer1 FA-96UDC 5-14 1: Synchronizer2 (FS1) 0: Follow Input Format Converter 1: Manual 0: SD 1: 720 Format Standard...
Page 262 Category Target Item Default Value Description Required Ref. Sets the lower vertical enhance level from 0.03 Enhance V Low 0 - 10 to 0.17. Directional Interpolation 0: Disable 1: Enable (FS1) FA-96UDC 5-25 FA-964K Edge Detect Level 0 - 10 (FS1) 4: 4:3 L 16:9 T 5: 4:3 L 14:9 T...
Page 263 Category Target Item Default Value Description Required Ref. Audio Demux DMX1/DMX2 0: Disable Alignment 1: Enable 0: Auto Audio Clock 1: Sync SDI 2: Audio Clock Audio Multiplex EMB1/EMB2 Group1 Enable Group2 Enable 0: Disable 1: Enable Group3 Enable Group4 Enable 0: Auto Group1 HD Clock 1: Reference...
Page 264 Category Target Item Default Value Description Required Ref. Audio SRC ASRC Ch1/2 0: Auto 1: Use SRC Ch31/32 2: Bypass SRC Audio Monosum MONO MONO1L MONO1R MONO2L MONO2R MONO3L MONO3R MONO4L MONO4R MONO5L MONO5R MONO6L MONO6R MONO7L MONO7R MONO8L MONO8R 0 - 31 0 - 31: Source Ch.1 - 32 MONO9L...
Page 265 Category Target Item Default Value Description Required Ref. Audio MAP EMB1/EMB2 0/16 0 - 31 0 - 31: Source Ch.1 - 32 64: 500Hz Tone 1/17 65: 1kHz Tone 2/18 66: Silence 80: Downmix 1_L 3/19 81: Downmix 1_R 4/20 82: Downmix 2_L 83: Downmix 2_R 5/21...
Page 266 Category Target Item Default Value Description Required Ref. CDLY EMB1 0: Disable 1: Same as FS1/2 EMB2 6-27 0: Disable 1: Same as FS1 2: Same as FS2 Audio System ASYS 0: -18dBFS Reference Level 1: -20dBFS 0: Professional Grade 1: Consumer 0: 16bit Resolution...
Page 267 Category Target Item Default Value Description Required Ref. FA-96SPFC4 SlotA 0: SL (Proc.1) Simultaneous 1: SL (Proc.2) 4K/HD mode, OUT 1/2 2: SL (P1) / SL (P2) Single link 3: SL (P2) / SL (P1) Simultaneous 0: DL L1/L2 (Proc 1) (in Dual link) 4K/HD mode, OUT 1/2 0: QL L1/L2 (Proc 1) (in Quad link)
Page 268 Category Target Item Default Value Description Required Ref. FA-96ANAAUD SlotB InputLevel Ch1 0: -10 dBu InputLevel Ch4 1: 0 dBu 6-28 2: +4 dBu OutputLevel Ch1 3: +8 dBu OutputLevel Ch4 Polarity Ch1 0: Normal 6-29 1: Invert Polarity Ch4 0 - 31 0 - 31: Source Ch.1 - 32 64: 500Hz Tone...
Page 269 Category Target Item Default Value Description Required Ref. MAP Ch20 MAP Ch21 MAP Ch22 MAP Ch23 MAP Ch24 MAP Ch25 MAP Ch26 MAP Ch27 MAP Ch28 MAP Ch29 MAP Ch30 MAP Ch31 MAP Ch32 Setting value is one-tenth of input value. Master Gain -200 - 200 Ex) 123 =>...
Page 270 Category Target Item Default Value Description Required Ref. Setting value is one-tenth of input value. Gain Ch1 -400 - 400 Channel total gain Gain Ch32 ＝ (Master Gain value) + (channel gain value) 0: Disable Output Conv. Delay 1: Same as FS1 6-27 2: Same as FS2 0: Dante Clock...
Page 271 Warning This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Page 272 FOR-A Latin America and the Caribbean Miami Office FOR-A Latin America and the Caribbean Miami Office Tel: +1 657-600-5759 Tel: +1 657-600-5759 FOR-A Latin America and the Caribbean Sao Paulo Office FOR-A Latin America and the Caribbean Sao Paulo Office Tel: +55 (0)11-99913-3751 Tel: +55 (0)11-99913-3751 FOR-A Europe S.r.l.

This manual is also suitable for:

Fa-96ps Fa-964k Fa-96udc Fa-96ahdr Fa-96ahdr2 Fa-96aes-ubl ... Show all

FOR-A FA-9600 Operation Manual

Quick Links

Need help?

Questions and answers

Related Manuals for FOR-A FA-9600

Summary of Contents for FOR-A FA-9600
