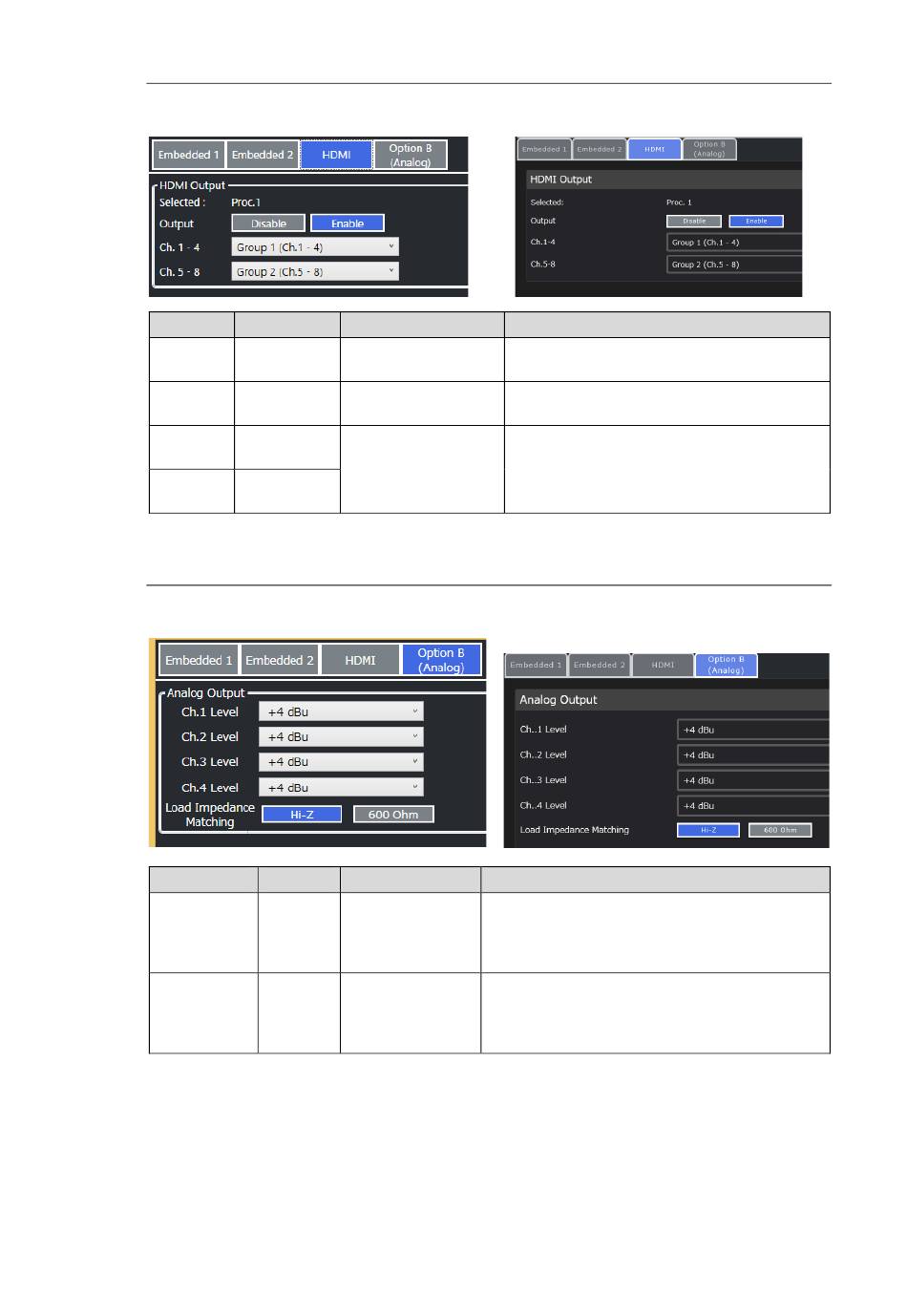

12-3-9-2. HDMI Audio

[Windows GUI]
Item Default
Selected -
Output Enable
Group
Ch.1 - 4
1(Ch.1-4)
Group
Ch.5 - 8
2(Ch.5-8)

12-3-9-3. Analog Audio

[Windows GUI]
Item Default
Ch.1-4
+4 dBu
Level
Load
Impedance Hi-Z
Matching
[Web GUI]
Setting
Displays a process to which the HDMI
-
output belongs (Proc.1 or Proc.2).
Disable
Enables/disables HDMI audio output.
Enable
Group 1(Ch.1-4)
Selects audio sources per 4 channels.
Group 2(Ch.5-8)
Audio sources can be selected from those
Group 3(Ch.9-12)
in the process displayed under Selected.
Group 4(Ch.13-16)
[Web GUI]
Setting
-10 dBu
0 dBu Sets the audio level for each analog output
+4 dBu channel.
+8 dBu
Sets the input impedance of the downstream
Hi-Z
device that receives the analog audio signals
from FA-9600. FA-9600 adjusts the audio
600 Ohm
level according to this setting.
