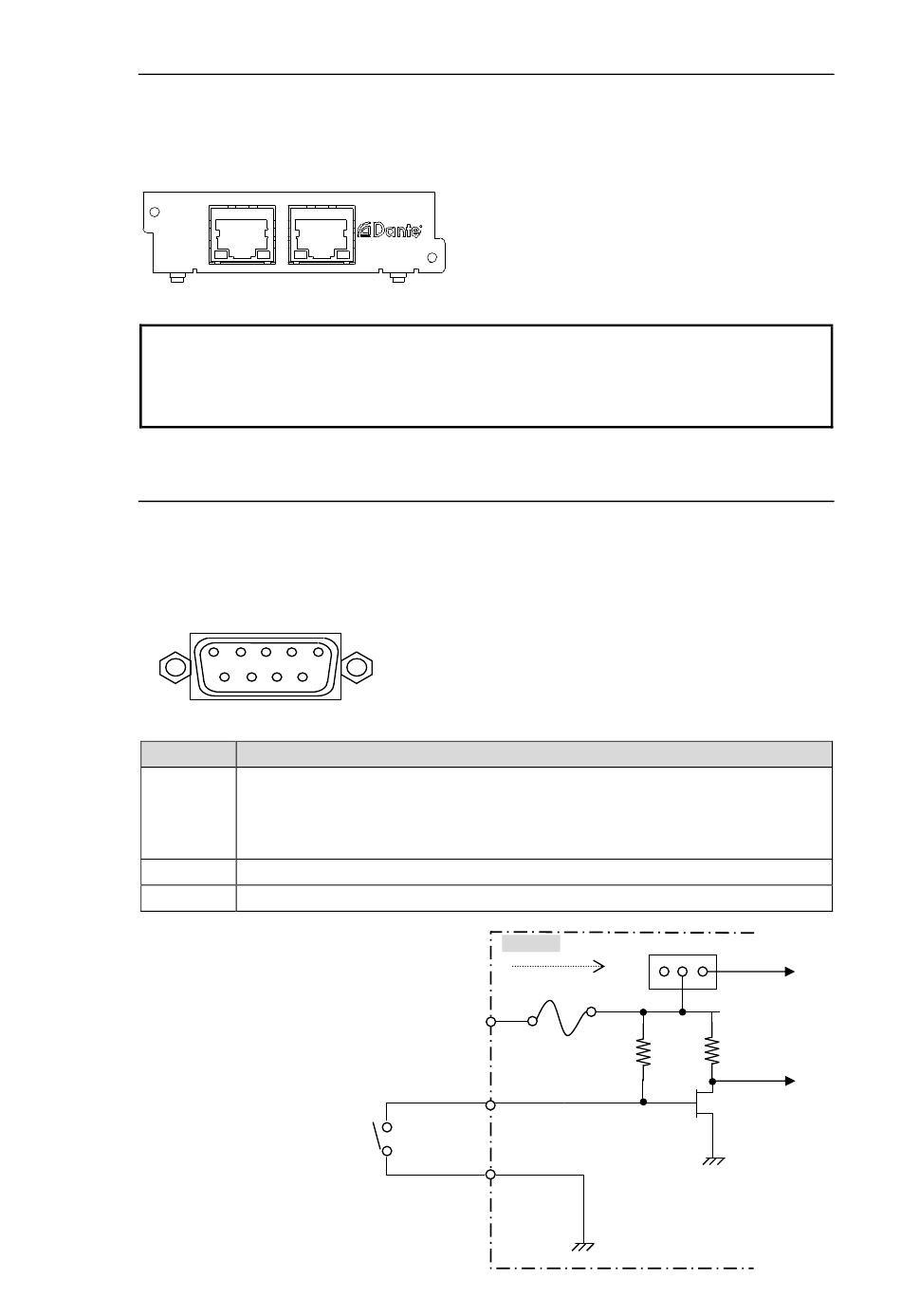

2-3-7. FA-96DNT (Dante Audio Card)

Dante audio expansion card that supports multi-channel audio transmission over IP network
and redundant audio routing with Primary and Secondary ports or daisy-chain connection. Use
STP (Shielded Twist Pair) cable of CAT5e or higher.
Install a card into Slot B.
PRIMARY
IMPORTANT
Using FA-9600 as a Dante device requires a computer in which Dante Controller software
is installed. "Dante Controller" and User's Manual can be downloaded from the Audinate
website: https://www.audinate.com/, in which helpful documents about Dante network
setup are provided. Refer to the manual, Audinate site information and documents to
configure Dante network and audio routing.

2-3-8. FA-96DB9-CBL (7 GPI Input/Output)

A GPI expansion cable that can be add 7 GPI input/output. Install the option to Slot E.
The FA-96DB9-CBL connector pin assignments are as shown in the table below.
Use the menu to select input or output function for each pin. (See Sec. 7-1. "GPI UTILITY /
INPUT / OUTPUT.")
◆
FA-96DB9-CBL Connector (9-pin D-sub, female, with inch screws)
5 4 3 2
9 8 7 6
Connector Pin Assignments
Pin No.
DC IN or DC OUT
DC IN or OUT (+5.0 V) set by the jumper pin: JP1 (See the next page.)
1
Factory default: DC OUT
Total max load current is 200 mA.
2-8 GPI 1 - 7 (Input or output)
9 GND (Signal ground)
◆
GPI Input Circuit
Function ON: Pin shorted to ground
Function OFF: Pin opened
GPI input pulse width: 100 ms or more
SECONDARY
1
22
Description
FA-9600
1
FUSE
PIN 1
10 kΩ
PIN 2-8
PIN 9
3
+5.0V
JP1
