FOR-A FA-9600 Operation Manual page 24

1
Connector Pin Assignments
Pin No.
1 GND (Signal ground)
2 GPI OUT 1
3 GPI OUT 2
4 GPI OUT 3
5 GPI OUT 4
6 GPI OUT 5
7 GND (Signal ground)
8 GPI IN 1
9 GPI IN 2
10 GPI IN 3
11 GPI IN 4
12 GPI IN 5
DC IN or DC OUT
DC IN or OUT (+5.0 V) set by the
jumper pin: JP1 (See the next page.)
13
Factory default: DC OUT
Total max load current is 500 mA
◆

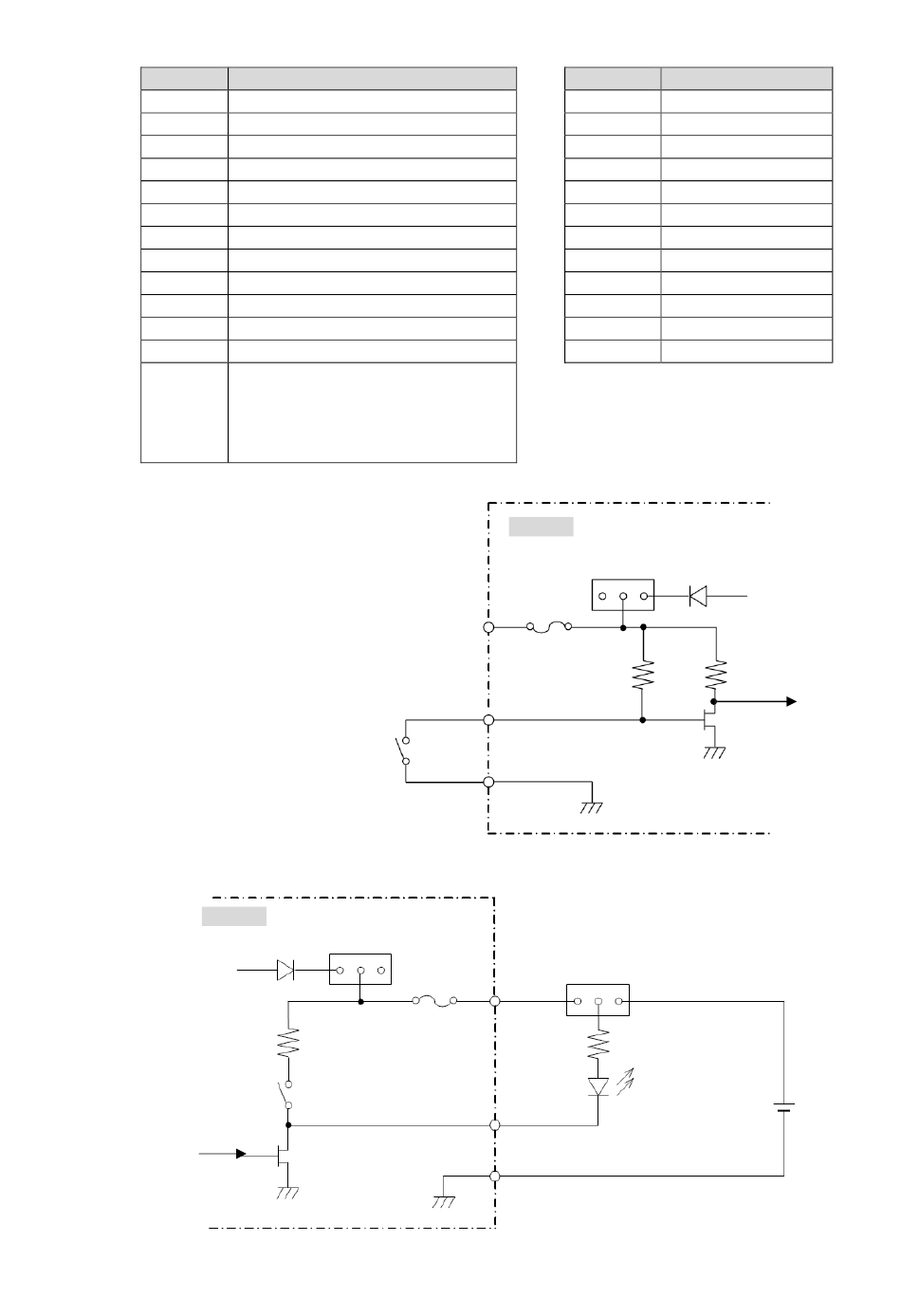

GPI Input Circuit
GPI input pulse width: 100 ms or more
◆
GPI Output Circuit
FA-9600
+5.0 V
3
10 kΩ
SW1 (1-4)
SW2 (1-4)
SW3 (1-2)
Description
13 PIN
PIN 8-12, 20-24
PIN 1, 7, 19
JP1
1
FUSE
PIN 13
Max. 50 mA
PIN 2-6, 14-18
PIN 1, 7, 19
24
Pin No.
14 GPI OUT 6
15 GPI OUT 7
16 GPI OUT 8
17 GPI OUT 9
18 GPI OUT 10
19 GND (Signal ground)
20 GPI IN 6
21 GPI IN 7
22 GPI IN 8
23 GPI IN 9
24 GPI IN 10
25 NC
.
FA-9600
JP1
3
1
FUSE
10 kΩ
External power
Description
+5.0 V
+5-24 V
