12-3-8. Audio Delay (FS 1 / FS 2 / AES / Option)

Click FS 1 Output Delay, FS 2 Output Delay or AES/Option Output Delay in the Audio Block
to display the Output Delay Window, in which output audio and video can be aligned.
For FS1 SDI embedded audio, click Embedded 1.
For FS2 SDI embedded audio, click Embedded 2.
For AES audio of standard and FA-96AES-UBLC option, click AES.
For FA-96AES-UBL, FA-96ANA-AUD, FA-96MADI or FA-96DNT, click Option B.

12-3-8-1. Embedded Audio

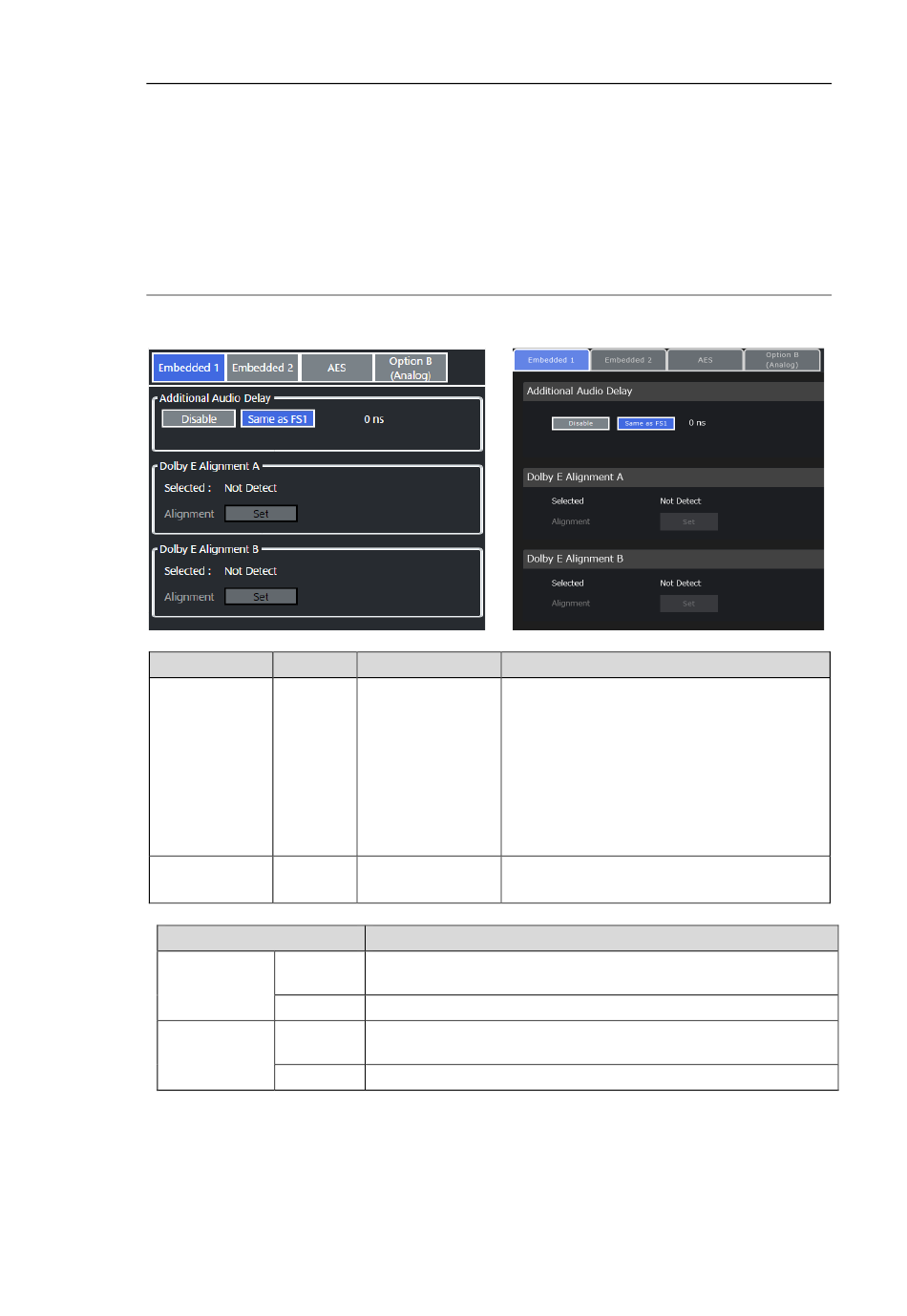

[Windows GUI]
Item Default
Additional Same as
Audio Delay FS1
Additional Same as
Audio Delay FS2
Item
Selected
Dolby E
Alignment A
Set
Selected
Dolby E
Alignment B
Set
See Sec. 6-26. "Dolby E ALIGNMENT" for more details.
[Web GUI]
Setting
Disable: Disables delay adjustment.
Same as FS1:
Adjusts video and audio timings by adding
the converter delay to embedded audio for
Disable
the SDI output. The additional delay
Same as FS1
amount is displayed to the right.
If Audio Delay function has no effect due
to format conversion, a message "Cannot
use with current I/O formats" is displayed.
Disable
(See above.)
Same as FS2
Displays the channel number and status of audio source
automatically assigned to Dolby E Alignment. (1
Pressing the button adjusts the audio delay.
Displays the channel number and status of audio source
automatically assigned to Dolby E Alignment. (2
Pressing the button adjusts the audio delay.
194
Description
Description
st
nd
system)
system)
