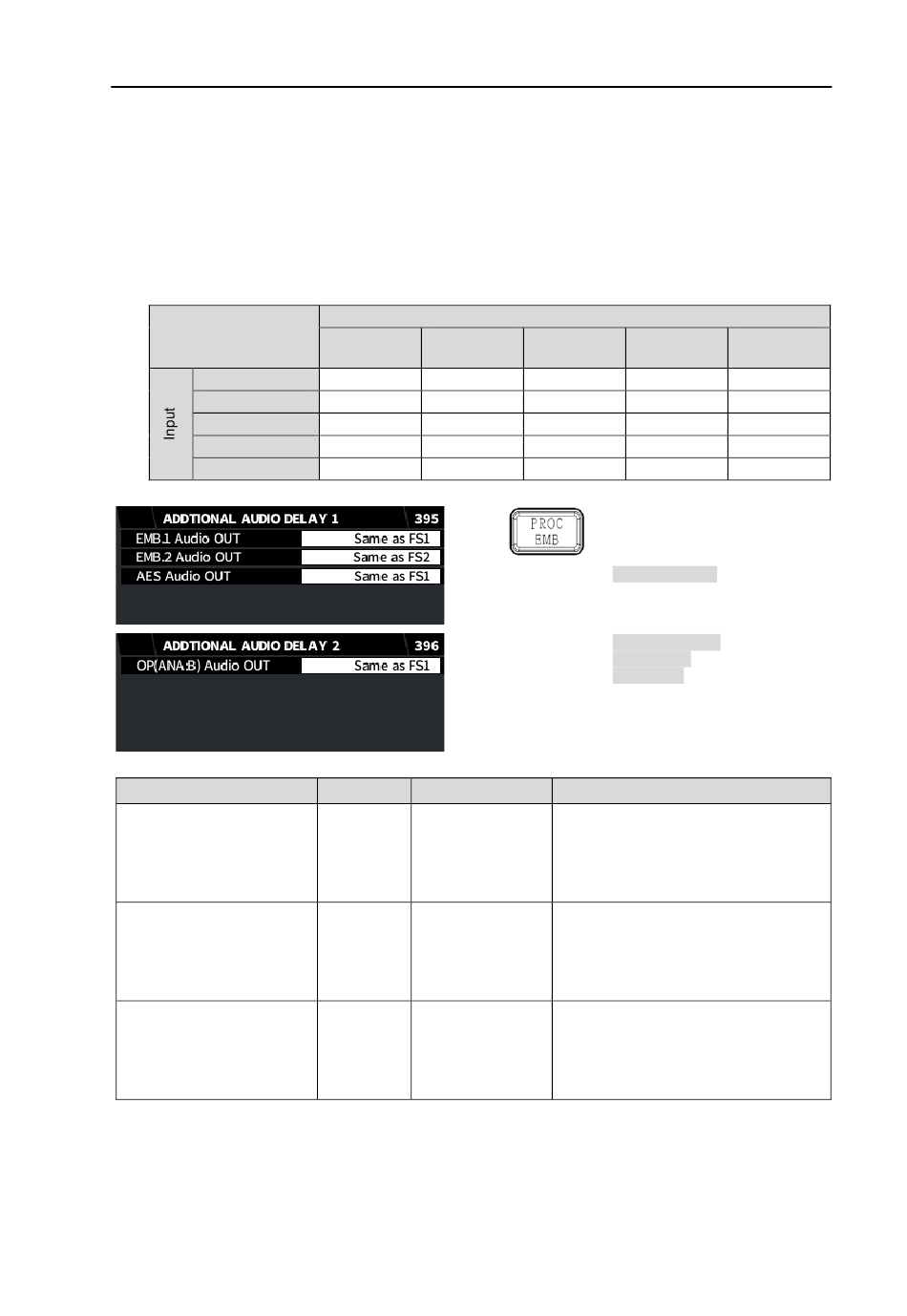

6-27. ADDITIONAL AUDIO DELAY

The delay time caused by Video Converter process can be automatically added to audio output
channels to fill the time gap between video and audio. The delay time amount is displayed under
Total Delay in the FRAME DELAY menu. (See Sec. 5-39. FRAME DELAY")
When any converter is not used, no delay time is added to audio regardless of this setting.
Refer to Sec. 4-6. "Aligning Audio and Video" for more details.
Frame rates of input and output video signals determine whether the Audio Delay function is
effective or not. If the function is ineffective, an asterisk (*) is added behind the setting value. See
the table below for which input and output combinations make the function effective.
◆
Which input and output formats (frame rates) make Audio Delay effective:
✔: Audio Delay
effective
60/30Hz
59.94/29.97Hz
50/25Hz
48/24Hz
47.95/23.98Hz
Item
EMB.1 Audio OUT
EMB.2 Audio OUT
AES Audio OUT
OP(AES) Audio OUT
OP(ANA:B) Audio OUT
OP(MADI) Audio OUT
OP(DNT) Audio OUT
OP(AES) Audio OUT requires FA-96AES-UBL option.
OP(ANA:B) Audio OUT requires FA-96ANA-AUD option.
OP(MADI) Audio OUT requires FA-96MADI option.
OP(DNT) Audio OUT requires FA-96DNT option.
59.94/
60/30Hz
29.97Hz
✔
✔
✔
✔
Default Setting
Same as Disable
FS1 Same as FS1
Same as Disable
FS2 Same as FS2
Disable
Same as
Same as FS1
FS1
Same as FS2
106
Output
50/25Hz 48/24Hz
✔
✔
✔
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1 / EMB1)
Required FA-96AES-UBL
option
Required FA-96ANA-AUD,
option FA-96MADI or
FA-96DNT
Description
Same as FS1: To align audio and
video (FS1 video converter output),
adds an appropriate delay to audio
channels to be embedded to SDI
OUT1 .
Same as FS2: To align audio and
video (FS2 video converter output),
adds an appropriate delay to audio
channels to be embedded to SDI
OUT2.
Adjusts audio output delay to sync
audio (AES, analog, MADI or
Dante) to video.
