Delay variation depending on menu settings and processes
Converter output timing
Delay Mode: Adjustable
Timing(0, 0)

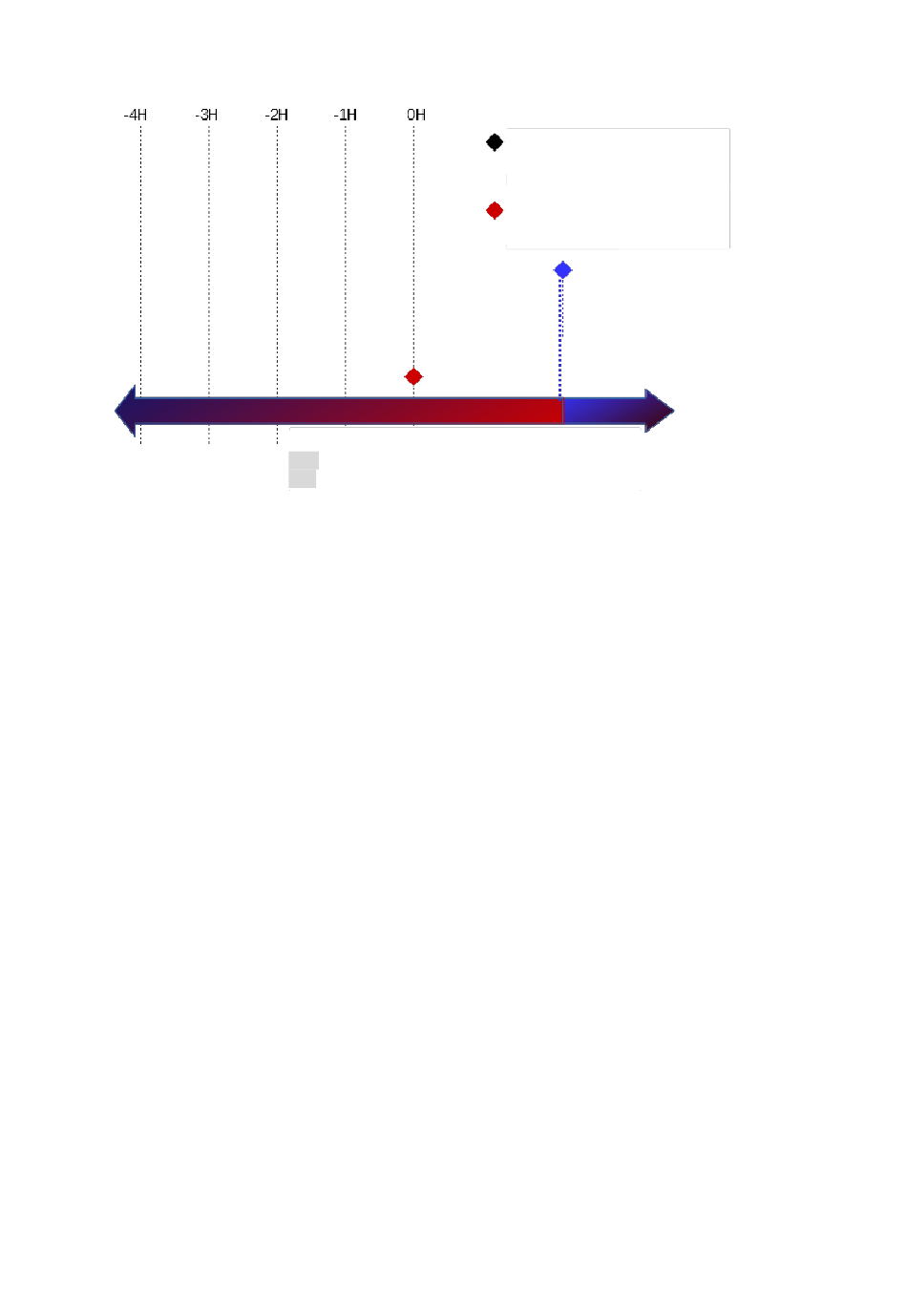

Timing setting range when Adjustable is set
Blue: Adjustable range for frame delay, min. delay
Red: Adjustable range, max. delay with one frame
61
Synchronizer output timing
Timing(H, V)
Converter output timing
Delay Mode: Frame
Timing(H, V)
Converter output timing
Delay Mode: Minimum
Timing (min.H, min.V)
