12-2-9. HDMI OUT

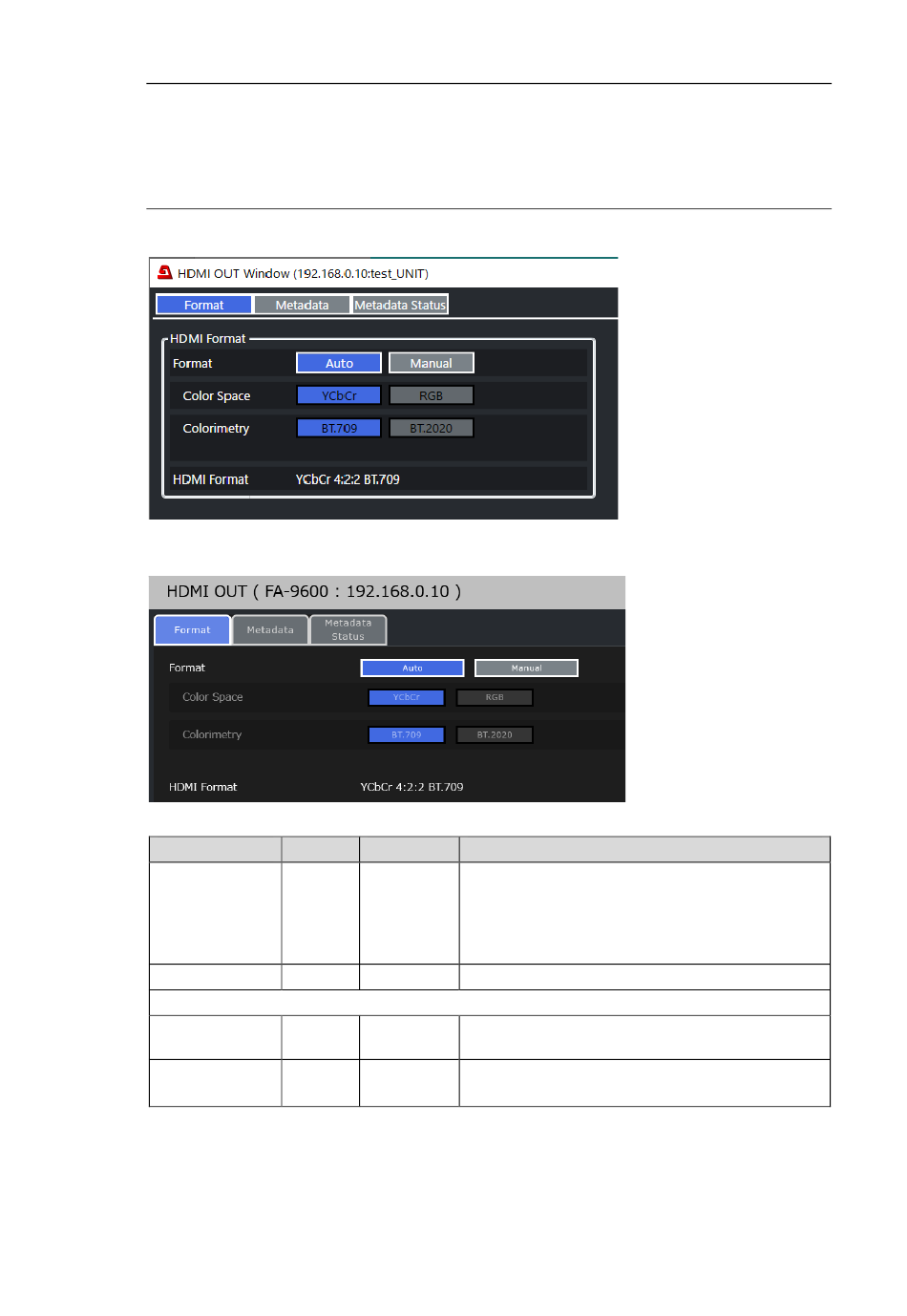

Click HDMI OUT in the Video Block to display the menu as shown below. Use Format,
Metadata and Metadata Status buttons at the top of the window to display submenus.

12-2-9-1. If Format Selected

[Windows GUI]
[Web GUI]
Item Default
Format Auto
HDMI Format -
If Format is set to Manual, set the following items.
Color Space YCbCr
Colorimetry BT.709
The video format of HDMI output is selected in the Output Select menu. (See Sec. 12-2-7.)
The HDMI output signal range is fixed to limited range.
Audio channels to be embedded into the HDMI output are selected in the Audio OUT (FS 1 /
FS 2 / HDMI / Option) menu. (See Sec. 12-3-9.)
Setting
Auto: HDMI output color format is obtained
from EDID data of the connecting device such
Auto
as monitors. (Default: YCbCr / BT.709).
Manual
Manual: HDMI output color format is manually
set using the following items.
－
Displays the HDMI signal color format.
YCbCr
Selects the HDMI output color mode.
RGB
Selects the HDMI output color gamut.
BT.2020
BT.709
(SD-SDI signals are processed using BT.601.)
