12-2-5-6. RGB Clip / Knee

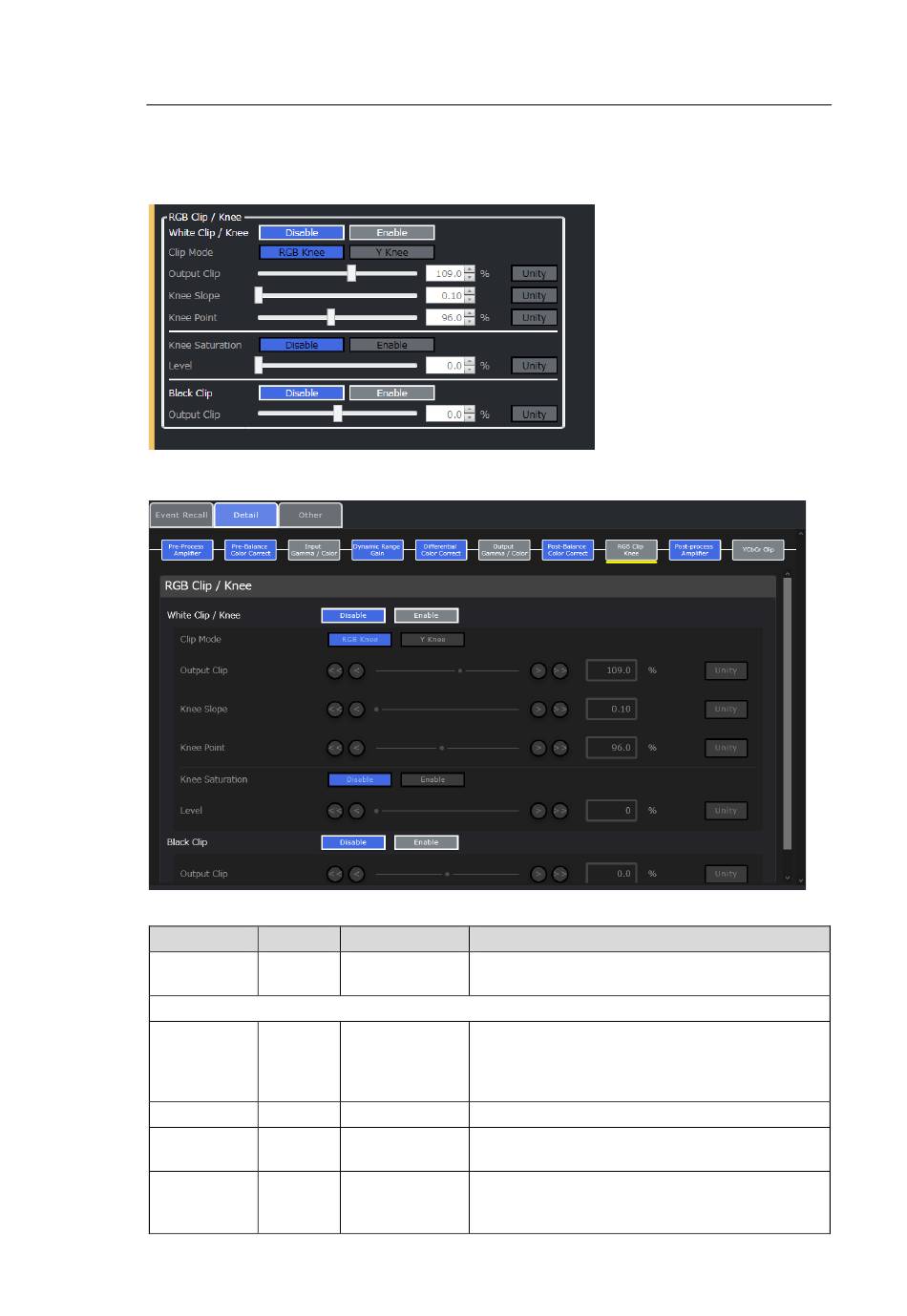

Click Color Processor 1 or Color Processor 2 in the Video Block and select RGB Clip /
Knee to display the menu as shown below.
[Windows GUI]
[Web GUI] (Scrolling up and down to go through the page.)
◆
RGB Clip / Knee
Item Default
White Clip /
Disable
Knee
Following 3 parameters are available when White Clip / Knee is set to Enable.
RGB
Clip Mode
Knee
Output Clip 109.0 %
Knee Slope 0.10
Knee Point 96.0 %
Setting
Disable
Enables / disables Knee function.
Enable
Selects RGB or Y for knee correction mode.
RGB Knee
Selecting Y Knee preserves colors more
vividly in the knee correction (high luminance)
Y Knee
areas.
50.0 - 150.0% Sets the White threshold in RGB.
Sets the knee slope inclination (compression
0.10-1.00%
ratio).
Sets the knee slope start point. The maximum
50.0 - 150.0% and default values vary depending on White
Leve (RGB White CLIP) setting.
162
Description
