12-2-6-2. If Time Code Selected:

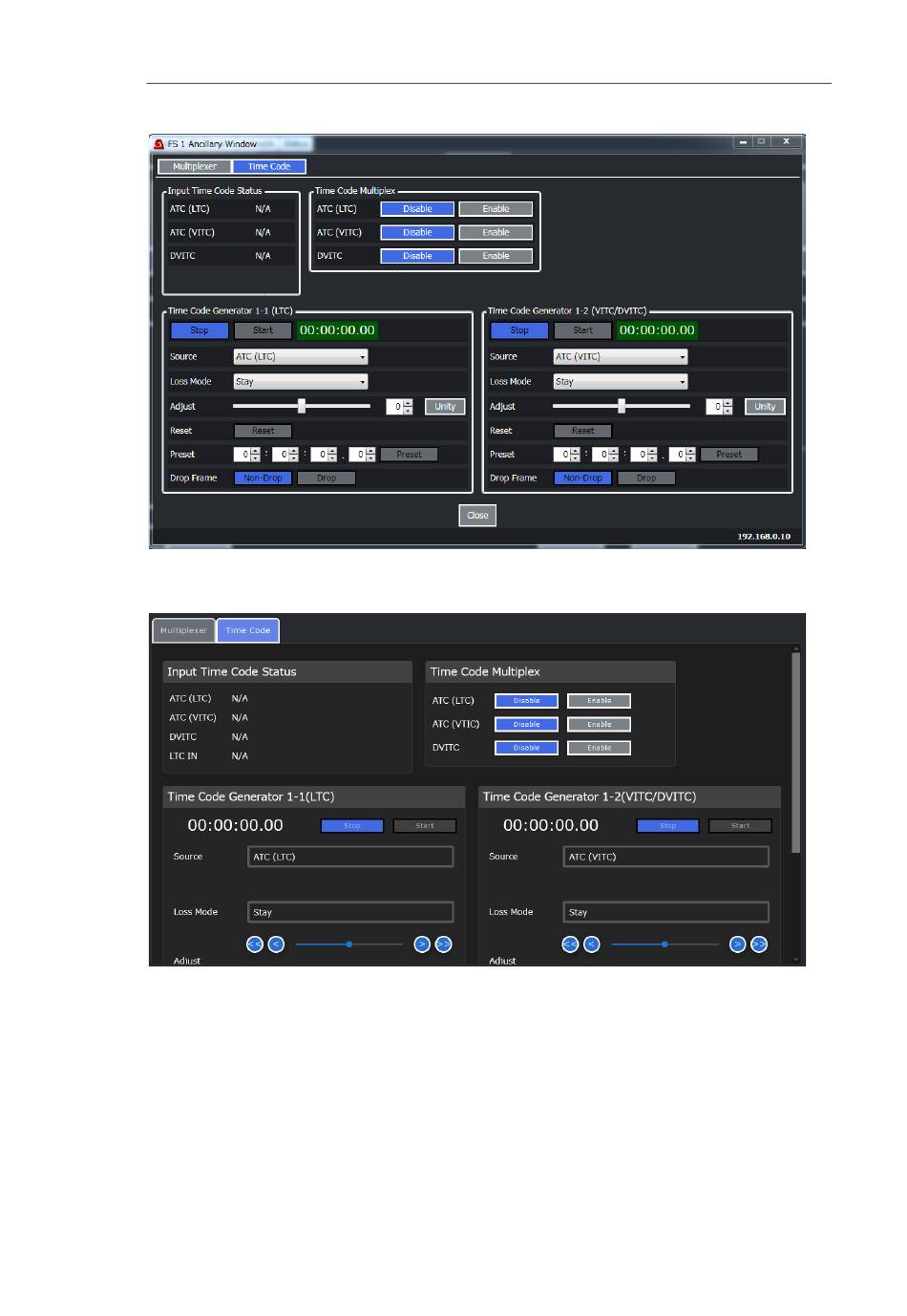

[Windows GUI]
[Web GUI] (Scrolling up and down to go through the page.)
◆
Input Time Code Status
Displays the timecode detection status in the SDI input. "N/A" indicates no timecode.
◆ Time Code Multiplex
Allows you to select whether to insert timecode (DVITC, ATC (LTC) and ATC (VITC) to the
SDI output on each FS.
To insert timecodes into SD-SDI signals, set Mode to Rewrite in the Vertical Ancillary Multiplex
block of the Multiplexer screen. Whether to insert a timecode into HD/3G/6G/12G- SDI signals
depends on the Mode setting in the Horizontal Ancillary Multiplex block.
