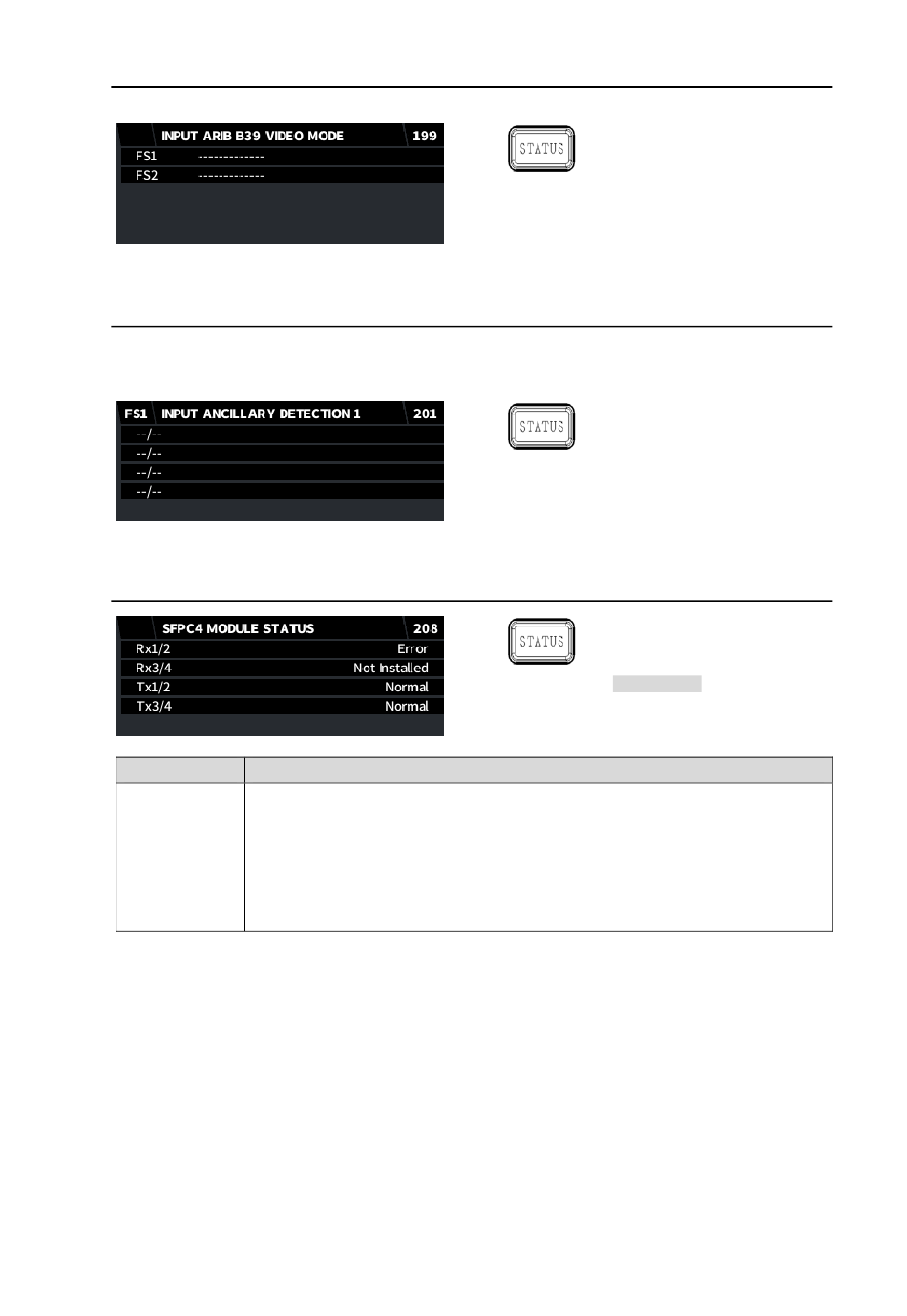

5-51. INPUT ARIB B39 VIDEO MODE

Displays the ARIB B39 Video Mode in ancillary area of SDI input.

5-52. INPUT ANCILLARY DETECTION 1-4

Displays the ancillary data detected in the SDI input: DID/SDID, Line number and data.
If a checksum error occurs, "[C]" is displayed in front of the item.

5-53. SFPC4 MODULE STATUS

Item
Displays the status information of SFP modules installed on FA-96SFPC4
option card.
Rx1/2
Not Installed: No SFP modules installed
Rx3/4
Normal: SFP module functions normally.
Tx1/2
Warning: A problem has occurred on the SFP module.
Tx3/4
Error: An error has occurred on the SFP module. Open the FA-9600
Windows GUI / Web GUI to verify details. (See Sec. 12-9. "Status.")
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1)
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1)
Simultaneous 4K/HD
Dual HD
3D-LUT (FS1)
Required FA-96SFPC4
Option
Description
