1. Prior to Starting

1-1. Overview

The FA-9600 multi-purpose signal processor provides dual channel SD/HD frame synchronizer,
with optionally supporting UHD 4K signals through Quad-Link 3G-SDI
(*1) (*1)
and HDMI 2.0
More than a basic frame synchronizer, the FA-9600 is equipped with various converting capabilities
including up-/down-conversions
gamut and dynamic range specifications, and allows to interchange various video signals. Offering
a wide range of audio processing, core features of remapping and gain adjustment.
The FA-9600 can be expanded by adding optional cards that make it an ideal standalone solution
at transmission centers, in mobile production trucks, production studios, news stations, and other
nonlinear editing and playout production environments.
(*1)
FA-964K required
(*2)
FA-96EX3G44-R required
(*3)
FA-96UDC required
POWER
ON
OFF
(SLOT A)
A
IN2 OUT2a OUT2b
LAN 3G/HD/SD-SDI

1-2. Key Features

➢
Dual channel signal processor (FS) with 2 inputs and 4 outputs for each
➢
FA-964K option allows 4K/60p signals processing in either one of two FS channels
➢
Optional cards allow the latest 12G-SDI interface
➢
HDMI ports as standard for various connectivity purposes
➢
New Color Processor

ITU-R BT.2020 (WCG) and ITU-R BT.709 processing and conversion.

Various HDR/ SDR EOTF and OETF reduce differences with external devices.
Custom EOTF / OETF log curves and color space data upload from computer

Dynamic Range conversion for Display light, OOTF (HLG)

SR-Live for HDR
➢
Optional FA-96UDC converter

Up-/down-/IP-conversions

SQD / 2SI

4K conversion between Single-, Dual- and Quad-Link SDI signals (Gearbox)
➢
Robust frame synchronizer with audio and SDI error correction
➢
Control operation using GUI software (full), web browser, Ember+ and external commands,
and SNMP monitoring (Support planned in the future)
➢
3D-LUT control via WonderLookPro (TV Logic) (3D-LUT mode only)
➢
Miscellaneous options
-Digital audio input/output expansion card / Digital audio expansion cable
-Analog audio expansion
-MADI audio expansion
interfaces.
(*3)
. A newly developed color processing circuit supports the latest
FAN ALARM
DC POWER
F1
GENLOCK
UNITY
DISP ON/OFF
B
IN1 OUT1a OUT1b
IN
12G/6G/3G/HD/SD-SDI HDMI

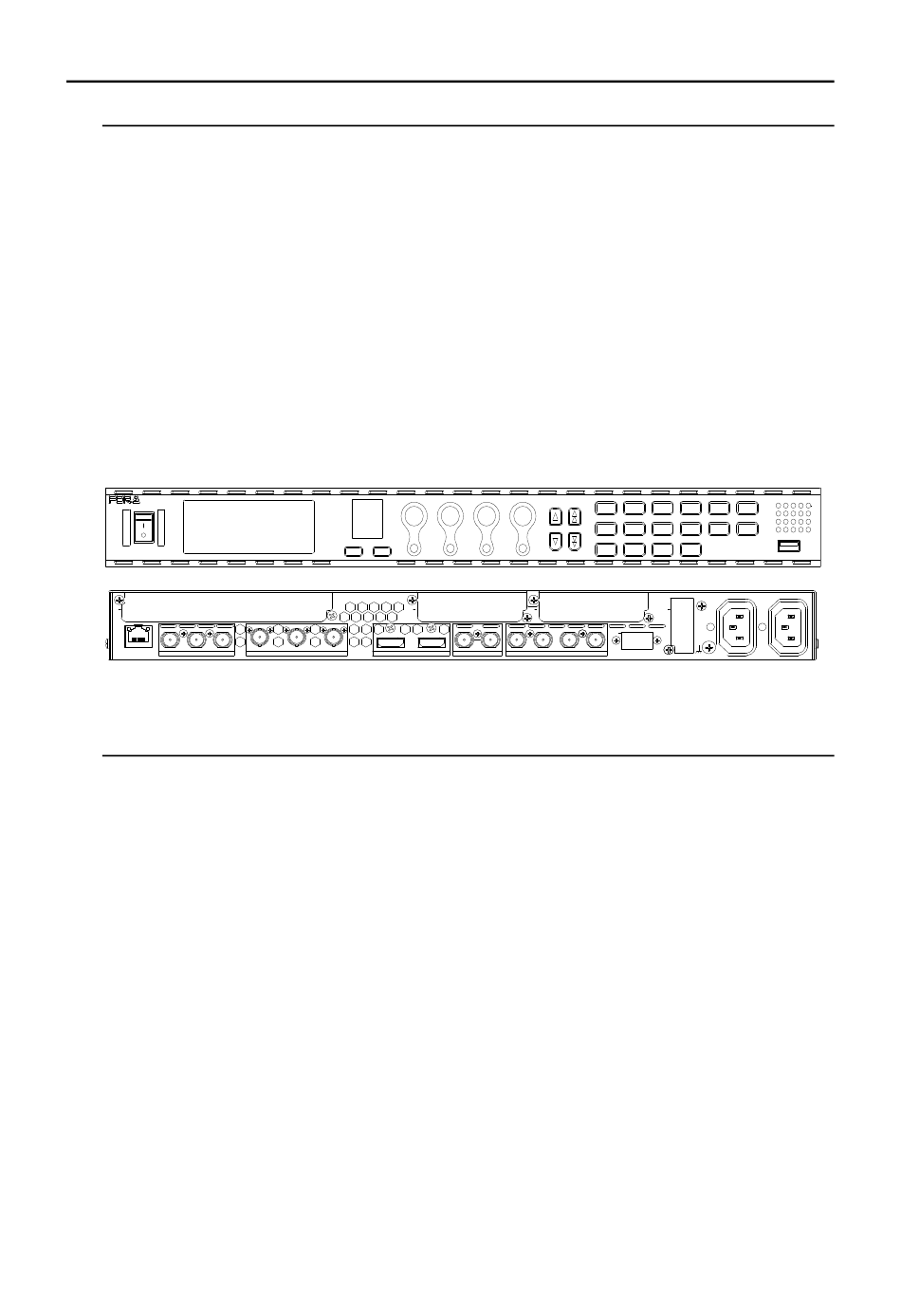

FA-9600 front and rear panels
(*5)
supported conversion
(*3)
, ranging from SD to HD/4K
(*2,*3) and 3G-SDI Level-A/B
F2 F3 F4
UNITY UNITY UNITY
ANALOG
(SLOT B) (SLOT C)
C
1/2 3/4 5/6 7/8
OUT
GENLOCK IN DIGITAL AUDIO IN/OUT
(*1) and support from SD to 4K/60p
(*4)
(*3) conversion
14
(*1,*2)
, Single-Link 12G-SDI
FRAME SYNCHRONIZER
PROC HDR/WCG CC CLIP
FS1 LOCK
EMB SETUP DWN MIX MAPPING
INPUT OUTPUT
GAIN OPTION
FS2 EVENT
AES DELAY
ANC VIDEO
SYSTEM STATUS
AUDIO
AC100-240V 50/60Hz IN
2 1
D
E
(*2)
(*4)
(*2)
(*2, *6)
(*4)
FA-9600
