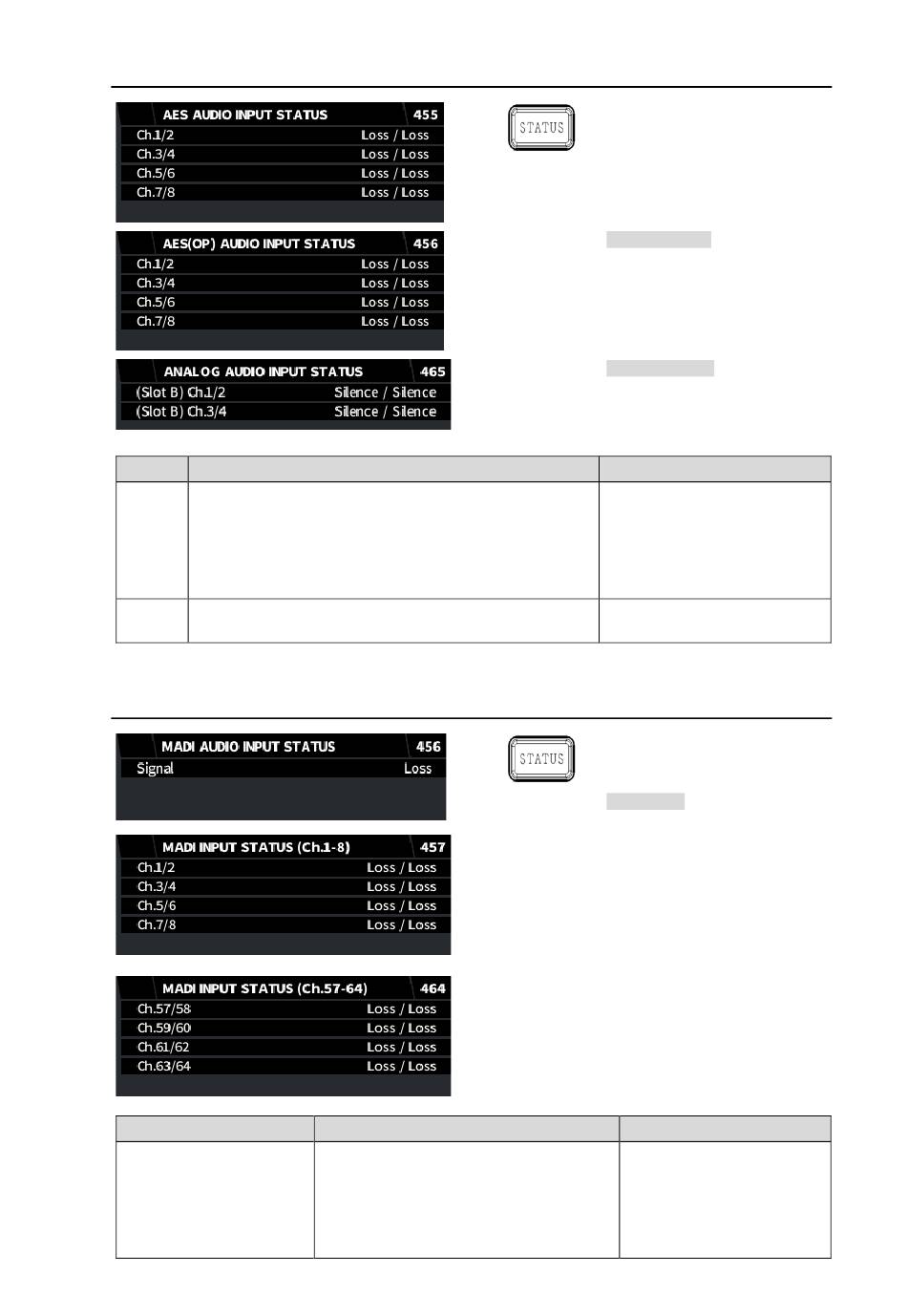

7-12. AES / ANALOG AUDIO INPUT STATUS

Item
Ch.1/2 PCM (32kHz), PCM (44.1kHz), PCM (48kHz)
Ch.3/4 Silence (32kHz), Silence (44.1kHz), Silence (48kHz)
Ch.5/6
Ch.7/8
Ch.1/2
Ch.3/4

7-13. MADI AUDIO INPUT STATUS

|
Item
Signal
Required
option
Required
option
Display
Loss
Dolby E,
Non-PCM
Output Settings
Silence
Present
Required
option
Display
Loss
Present (32kHz, 56Ch)
Present (32kHz, 64Ch)
Present (44.1kHz, 56Ch)
Present (44.1kHz, 64Ch)
Present (48kHz, 56Ch)
118
FA-96AES-UBL
FA-96ANA-AUD
Description
Displays each channel status
of AES audio inputs.
Output Settings is
displayed if AES ports are
set to output.
Displays each channel status
of analog audio input.
FA-96MADI
Description
Displays the MADI audio
input signal status.
