158

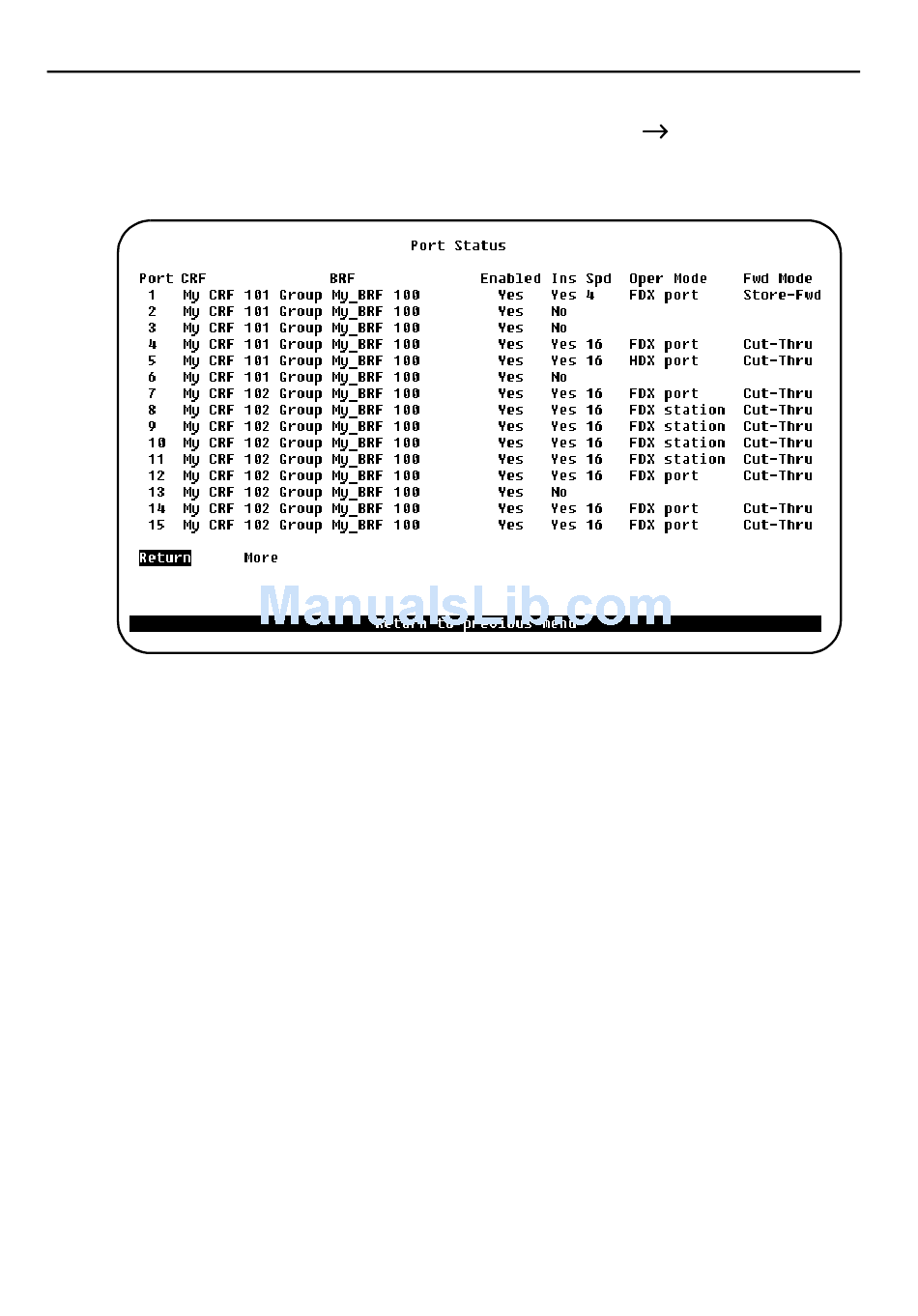

Port Status Screen
To open this screen from the main menu, select Statistics
The Port Status screen provides a summary of the status of all Token Ring ports.
Port
The port number.
CRF
The name of the CRF to which the port is assigned.
BRF
The name of the BRF to which the port is assigned.
Enabled
Displays the current enabled status of the port. Possible values are Yes and No.
Ins
Indicates if the port is currently inserted into the ring. Possible values are Yes and
No.
Spd
The Token Ring media speed. Possible values are 4 and 16.
SmartStack STS16-20RM/STS16-20FRM Token Ring Switches, P/N: 9032957-01
Port Status.
Monitoring the Network from the Console Statistics Menu
