142

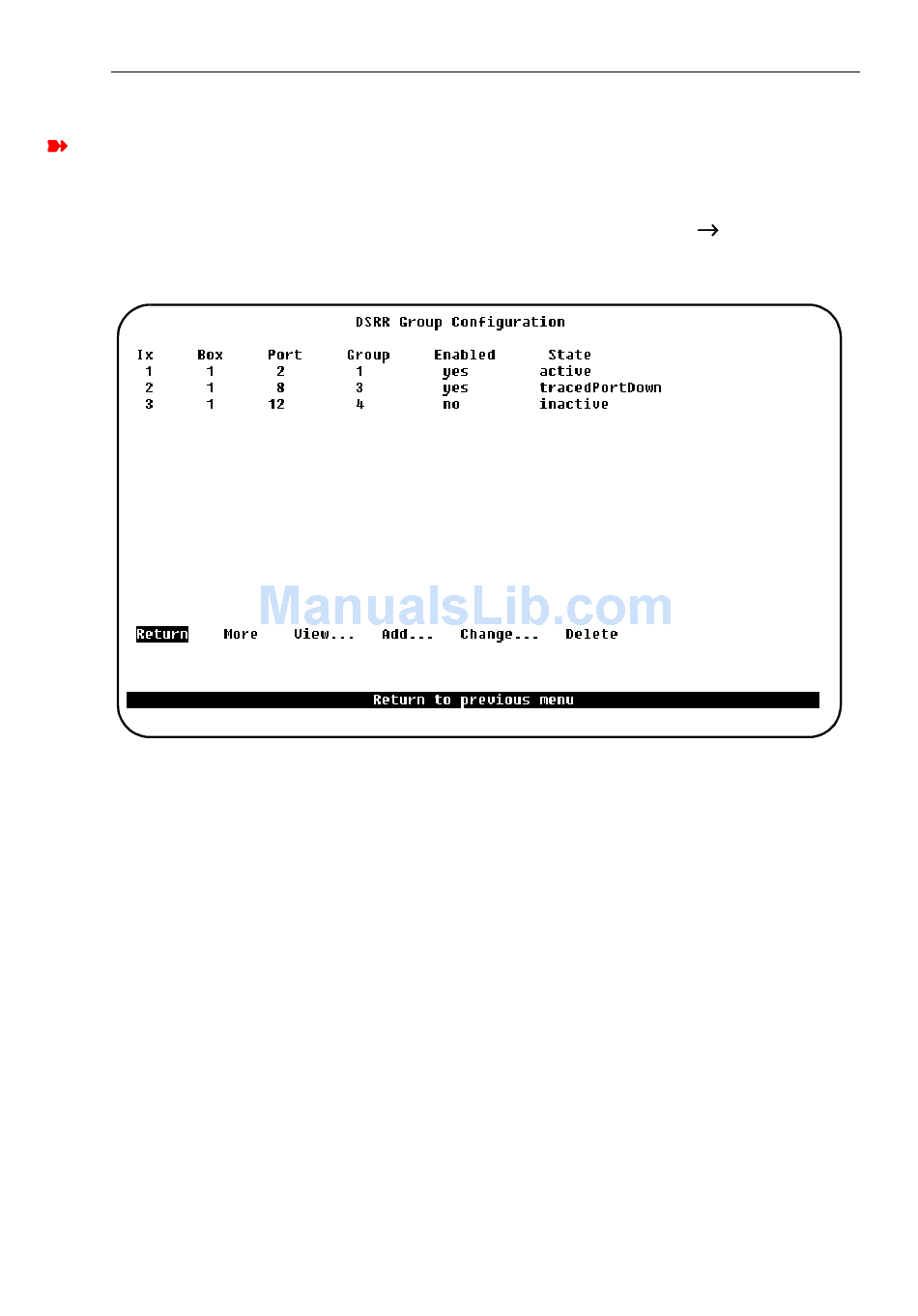

DSRR Group Configuration Screen

Note! Before entering the DSRR Group Configuration menu, the VLAN
configuration must be defined.
Open the menu from the main menu by selecting Configuration
Configuration.
The information displayed for each group on this screen is, as follows.
IX
Index for selecting a group to be viewed, changed, or deleted.
Box, Port
Primary DSRR port. This column displays the port that is connected to the legacy
Token-Ring (on which DSRR protocol frames will be transmitted). See Figure 27
on page 141.
Group
This is a global group identification. Active DSRR groups (on different switches)
with the same Group ID and with primary ports connected to the same ring will
provide backup for each other.
Enabled
This column shows if the switch participates actively in the group.
SmartStack STS16-20RM/STS16-20FRM Token Ring Switches, P/N: 9032957-01
DSRR Group
Switch Configuration
