CrossLink Configuration Screen

To open this screen from the main menu, select Configuration
CrossLink Configuration.

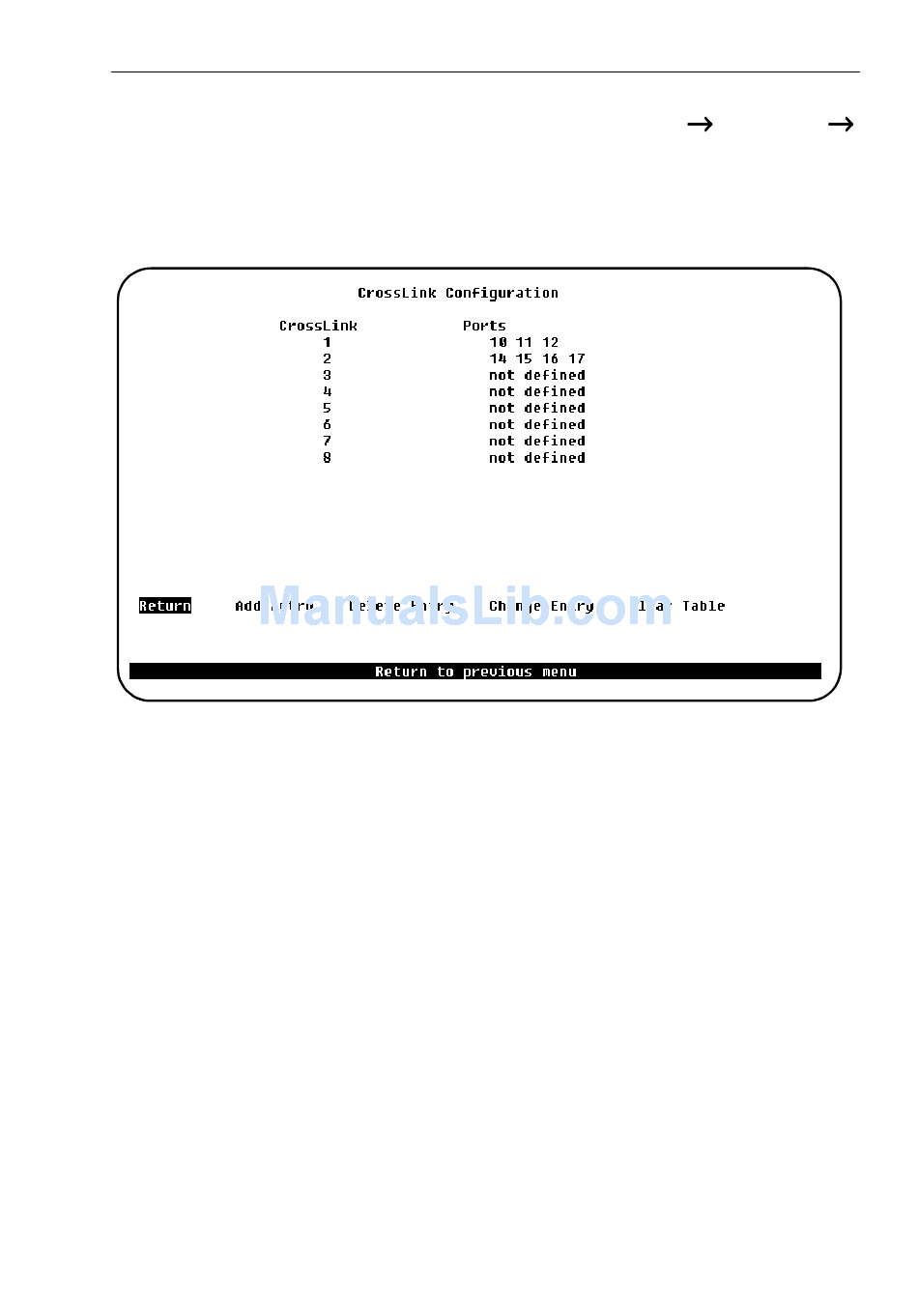

Use the this screen to add, delete, and change CrossLinks. A description of creating
a CrossLink connection follows.
CrossLink
List of different CrossLink setups.
Ports
The ports within that specific CrossLink.
Add Entry
Prompts you for port numbers for a CrossLink. Enter 2–8 ports. Start with the
lowest number and go to the highest, separating the numbers by spaces. All ports
must belong to the same CRF.
Delete Entry
Asks whether you want to remove the entry; then deletes the selected CrossLink.
Change Entry
Prompts you to reenter the port numbers in the selected CrossLink, from lowest to
highest, separated by spaces.
