— Port—The route descriptor is known at a box or port.
If the route descriptor has occurred as next hop in the RIF of incoming
frames at other ports, it will be present in these ports too.
•
Unknown:
— The route descriptor has occurred as next hop in the Route Information
Field of incoming frames at one or more ports. The switch has however not
yet learned the location of the route descriptor (bridge) because the target
station has not sent any response frames.
Ports
Ports of the switch whose address table includes this route descriptor.

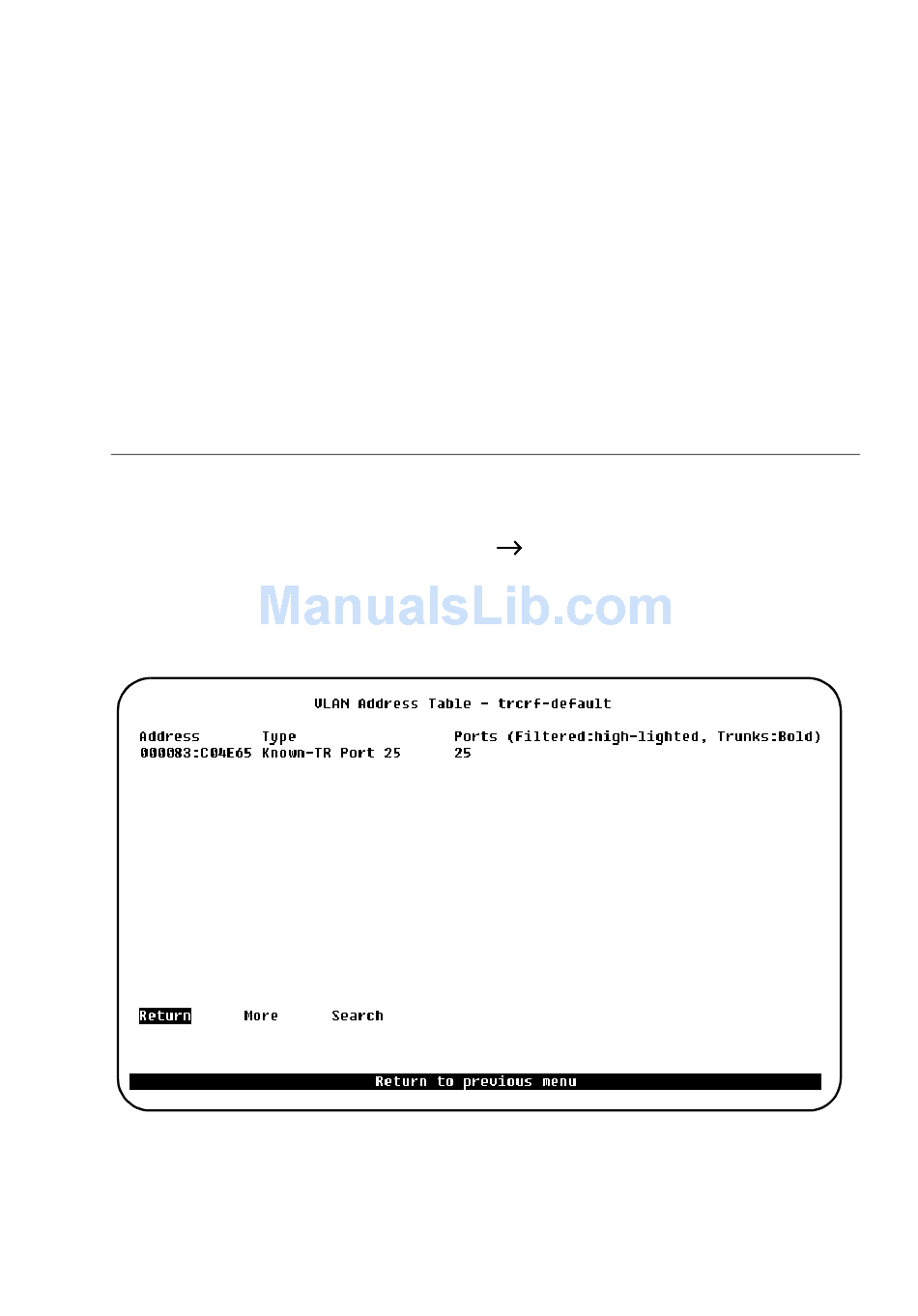

VLAN Address Table Screen

To open this menu, do the following:
1. From the main menu, select Statistics
2. Select VLAN Address Table.
3. Select a CRF, when prompted. The VLAN Address Table screen appears.
.
For a description of the fields and their meanings, see the section "Master Address
Table Screen" on page 176.
