IP. You may give each domain an IP address, subnet mask, and gateway
address definition.
•
Address filters. Domains have no effect on address filters. For example,
suppose you create two domains: one containing ports 1–8 and the other ports
9–16. If you add an address filter to ports 7, 8, 9, and 10, the filter will work
properly even though it applies to ports in other domains.
•
CrossLink. All ports in a single CrossLink must belong to the same CRF.
Therefore, the console software prevents you from defining a CrossLink
connection that includes ports in different CRFs. It also prevents you from
assigning the ports in an existing CrossLink to different CRFs.

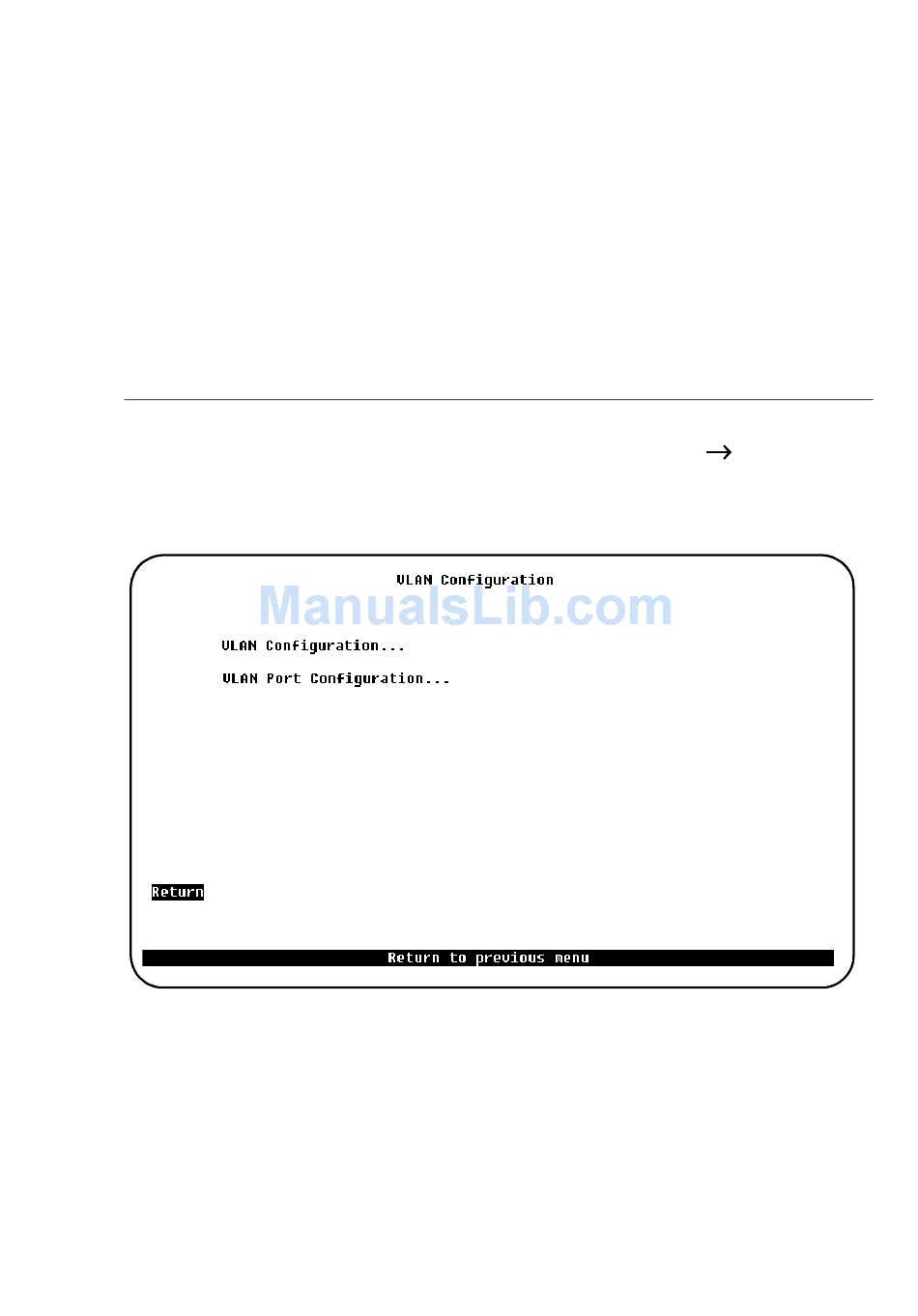

VLAN Configuration Menu

To open this screen from the main menu, select Configuration
Configuration. See the section "VLAN Support" on page 29 for a discussion of
VLANs.
More information on the various submenus follows these brief explanations.
VLAN Configuration...
Displays the VLAN Configuration menu, which you use to define and administer
BRFs and CRFs in the switch.
VLAN Port Configuration...
Displays the VLAN Port Configuration screen, which you use to view and
configure port assignments to CRFs.
