149
TFTP Download/Upload Screen
Open this screen from the main menu by selecting Download/Upload
TFTP
Download/Upload...

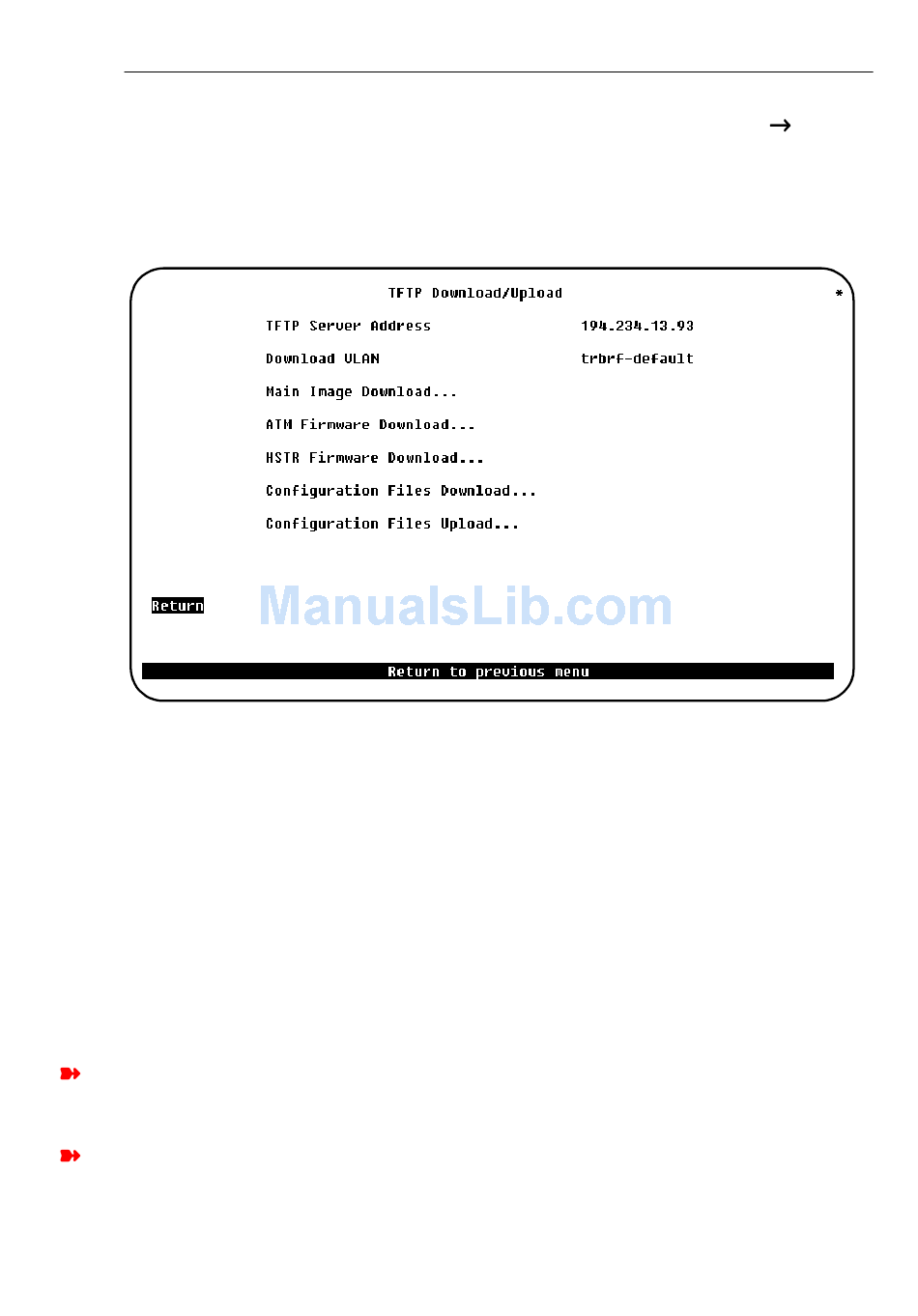

The following is an example of the TFTP Download/Upload screen. Note that this
screen may contain additional items, depending on the modules installed.
TFTP Server Address
The address of the host serving as the TFTP server.
Download VLAN
The VLAN name through which the download is attempted.
Main Image Download...,, Configuration Files Download...,
Configuration Files Upload...
Select the required function and input the path and filename of the file the switch
attempts to download or upload, as it is to be received and interpreted by the TFTP
server. (The security mode in use on the TFTP server may affect this function.)
Note! When uploading configuration files, many TFTP servers require that the file
exists on the server.
Note! When upgrading the boot code, append the string *boot to the filename when
entering the filename. For example, to download the 2.3 bootcode to the switch,
type the following:
Switch Configuration
SmartStack STS16-20RM/STS16-20FRM Token Ring Switches, P/N: 9032957-01
