State
Shows the actual state of the displayed DSRR group.
View and Change
Select View or Change to view or edit a group. You will be prompted for the Index
(Ix) of the group. The DSRR Configuration screen will appear.
Add
Select Add to create a new group. You will be prompted for Box (if the switch is
stacked), Port, and Group. The DSRR Configuration screen will appear.

DSRR Configuration Screen

To open this screen from the main menu, do the following:
1. Select Configuration DSRR Group Configuration.
Select Change or View to edit or see an existing group. Select Add to create a new
group. You will be prompted for information to identify the group. The DSRR

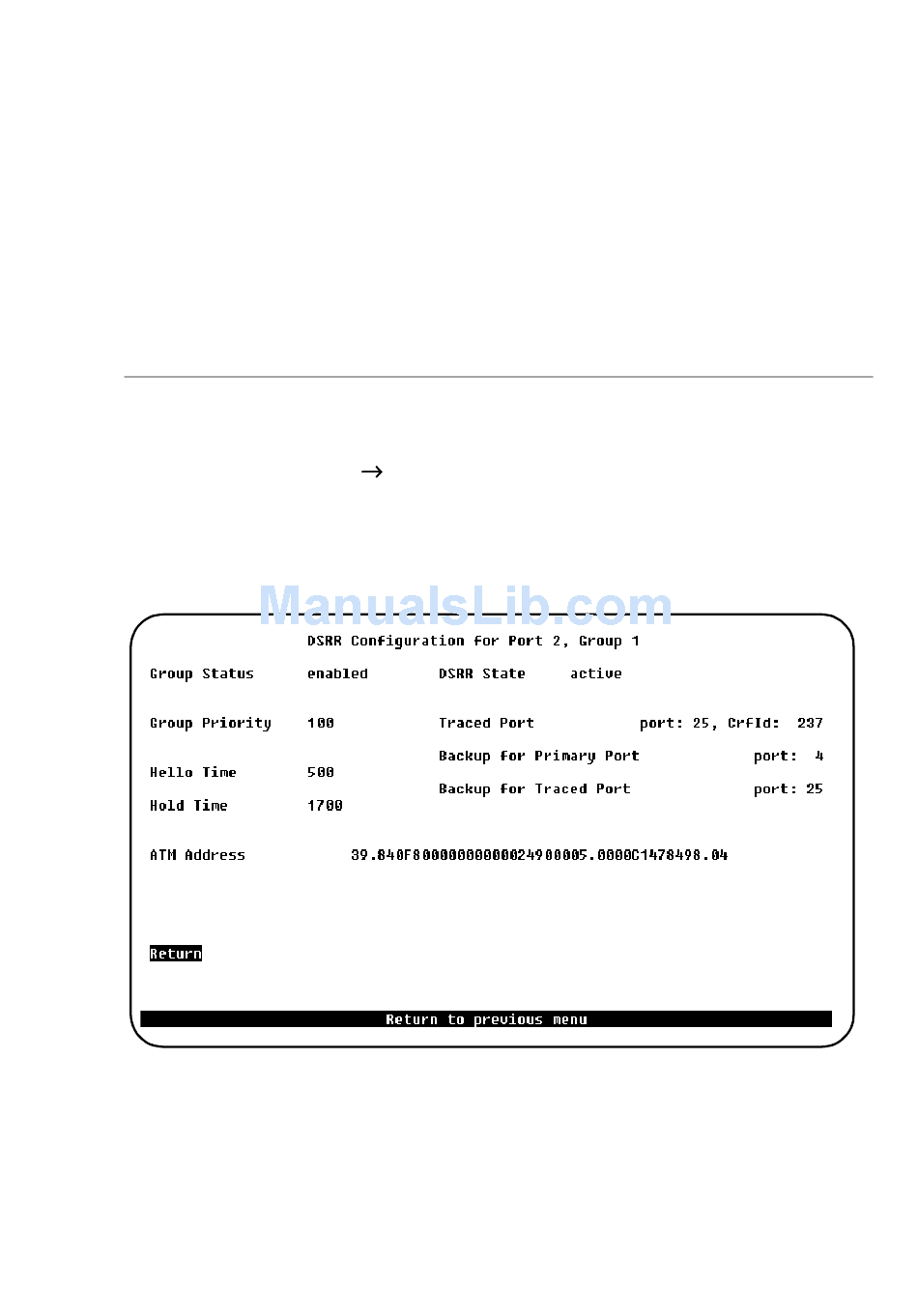

Configuration screen will then appear:
The items on this screen are described in the following.
Group Status
Enables or disables active participation in the DSRR Redundancy Group.
DSRR State
Actual state of the DSRR group. The state can be one of the following:
