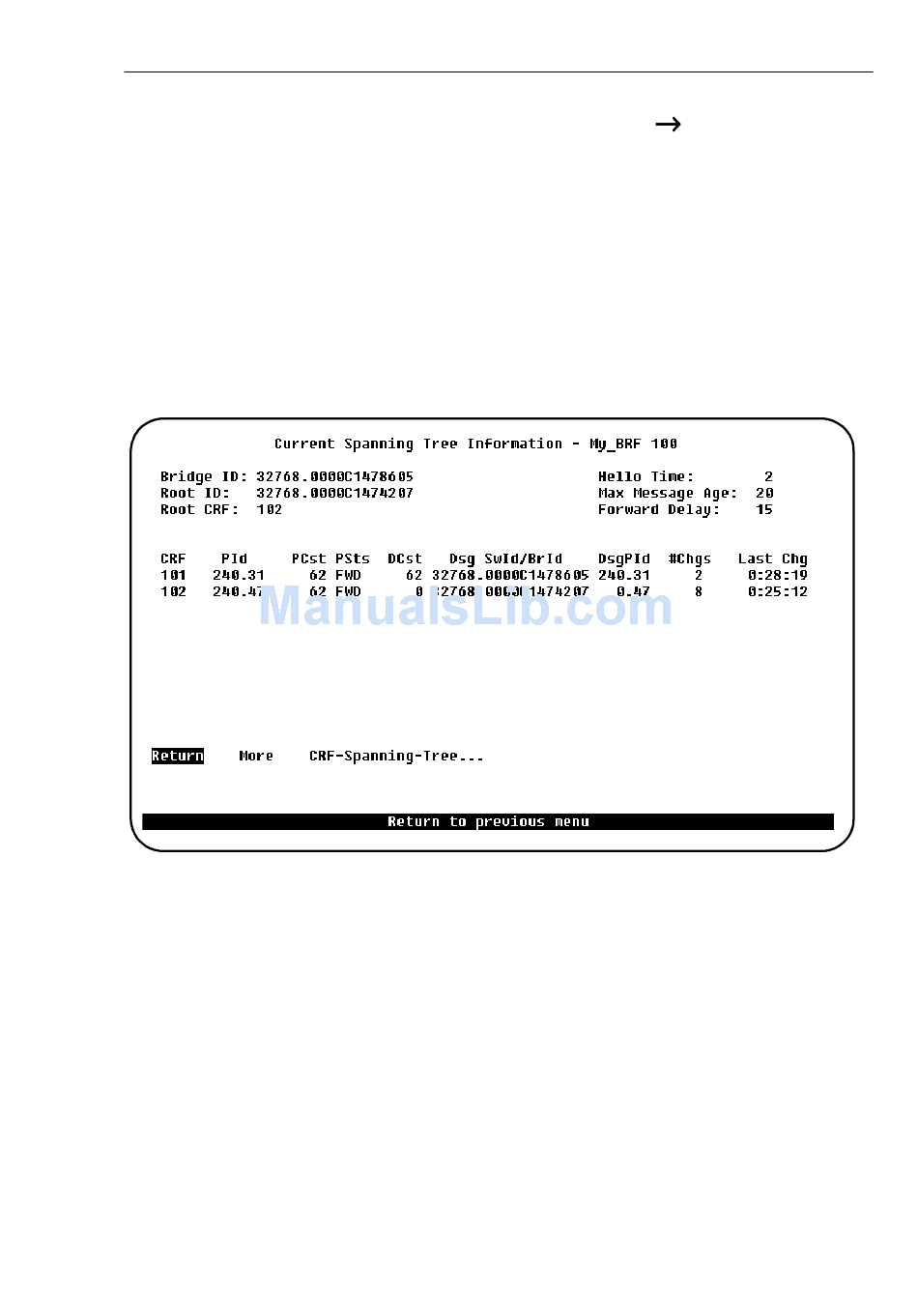

Current Spanning Tree Information Screen

To open this screen from the main menu, select Statistics Current Spanning
Tree Information.
Use the Current Spanning Tree Information screens to view a summary of all
STP information for each port. Information on this screen cannot be changed.
When the STP is turned off—that is, you have selected No for the Participate in
Spanning Tree prompt (at the Configuration menus)—this menu will only
display the headers with no information below them.
When the switch is configured with CrossLink channels, STP packets use the base
port of the CrossLink.
Bridge ID
Priority and MAC address of this bridge.
Root ID
Priority and MAC address of the root bridge.
Root CRF
The VLAN ID of the CRF that is closest to the root. This switch communicates with
the root through this CRF.
Hello Time
Time (in seconds) that the root waits between sending configuration messages. This
time is advertised by the root and used by all devices and switches in the active
topology of the spanning tree network.
Monitoring the Network from the Console Statistics Menu SmartStack STS16-20RM/STS16-20FRM Token Ring Switches, P/N: 9032957-01
