76

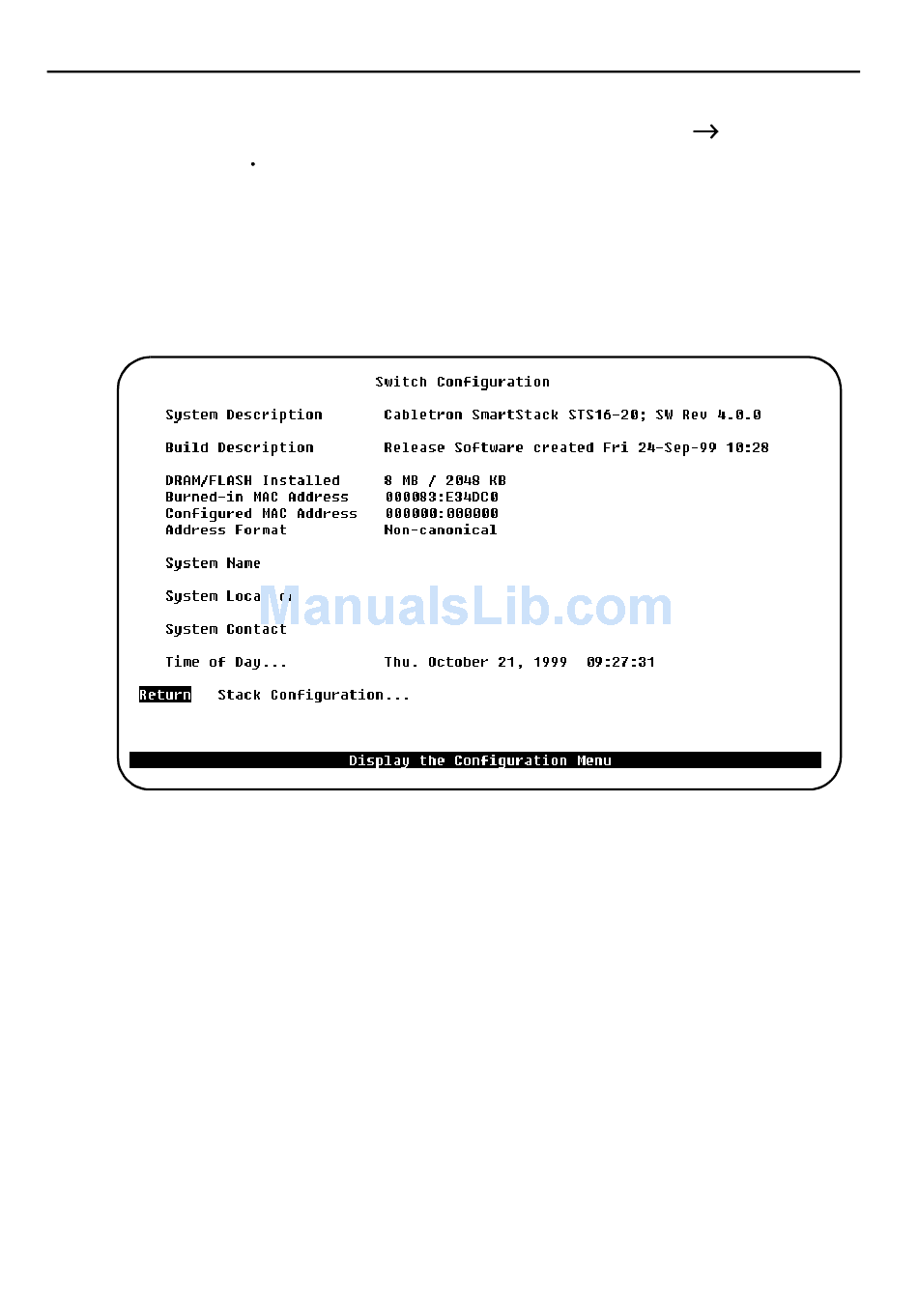

Switch Configuration Screen
To open this screen from the main menu, select Configuration
Configuration
Use the Switch Configuration screen to view system information and to view or
change the system name, location, contact, and time of day. To add or change the
system name, location, contact or time of day, use the arrow keys to highlight the
field and press the
entering text for that field. Pressing
System Description
Name and model of the switch, or, in the case of a stack, the generic stack name. In
addition to this, the firmware release is displayed. Information in this field cannot
be changed.
Build Description
Describes when the firmware running in the switch was built. Display only.
DRAM Installed
Amount (in MB) of dynamic memory installed. Display only.
Flash Memory Installed
Amount (in KB) of flash memory installed. Display only.
Burned-in MAC Address
The factory-assigned base MAC address of the switch. Display only.
SmartStack STS16-20RM/STS16-20FRM Token Ring Switches, P/N: 9032957-01
key. A prompt appears near the bottom of the screen for
ENTER
ENTER
again enters that text.
Switch
Switch Configuration
