Remote Box Number(s)
Number of switches (in addition to this one) in the stack. Information in this field
cannot be changed.
Stack Time-out
If a switch goes off line, the length of time (in seconds) during which the stack tries
to reestablish communication with the switch. The default is 16 seconds.
Stack State
Whether the SmartStack Switch Stacker is operational (SmartStack STS-LM or
SmartStack STS-5SU). Display only.
Stack Connection
Whether the STS-8SU SmartStack Stacker Unit is connected. Display only.

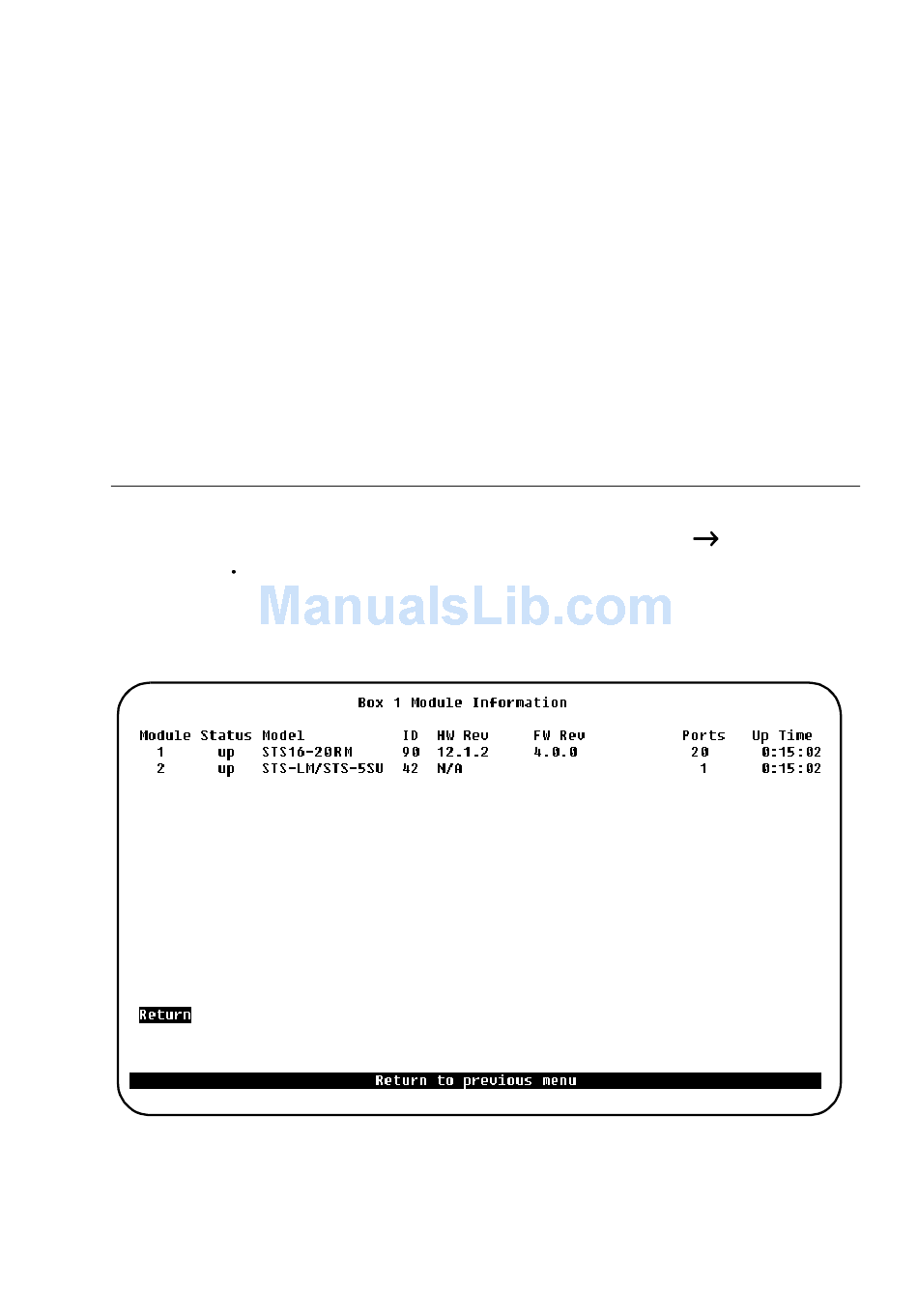

Module Information Screen

To open this screen from the main menu, select Configuration
Information
If expansion modules have been installed, this menu provides information on them.
The switch is listed as the first module.
The following information is displayed on this screen:
SmartStack STS16-20RM/STS16-20FRM Token Ring Switches, P/N: 9032957-01
Module
Switch Configuration
