190
Ports
List of ports that belong to this CRF.

VLAN Statistics Screen for BRF

To open the VLAN Statistics screen for BRF, do the following:
1. From the main menu, select Statistics
2. You will be prompted for a VLAN type. Select BRF.

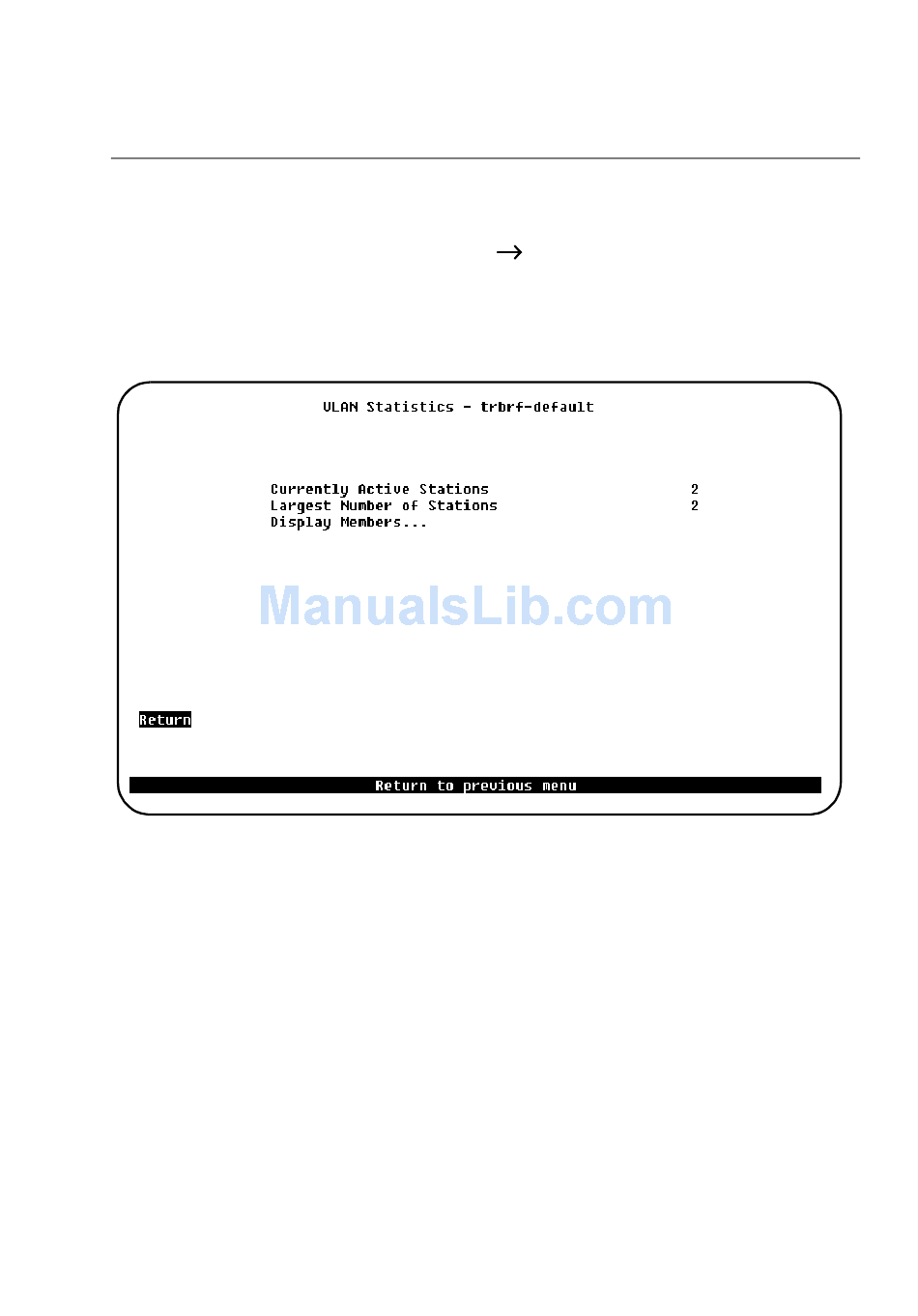

3. The VLAN Statistics Screen for BRF appears.
Currently Active Stations
Number of MAC addresses currently in the master address table that are recognized
as ports belonging to this VLAN.
Largest Number of Stations
Largest number of MAC addresses in the master address table—since the last reset
or power cycle—that are recognized as belonging to this VLAN.
Display Members...
Selecting this item will open a new screen that lists all CRFs that are members of
the BRF.
SmartStack STS16-20RM/STS16-20FRM Token Ring Switches, P/N: 9032957-01
VLAN Statistics.
Monitoring the Network from the Console Statistics Menu
