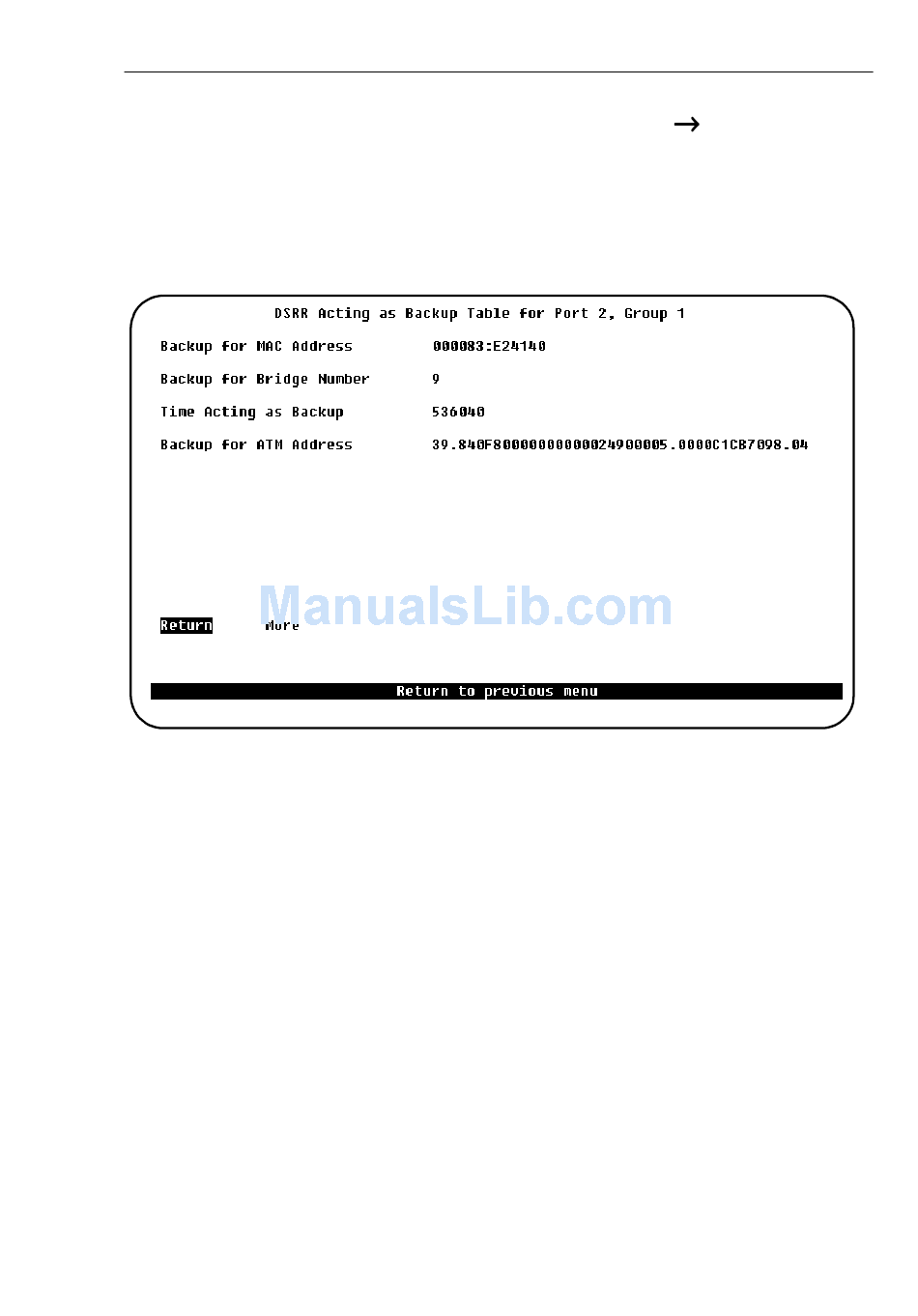

DSRR Acting as Backup Table Screen

Open this menu from the main menu by selecting Statistics DSRR Status.
Then select View Backup. You will be prompted for the Index (Ix) value of the
group, then the screen will appear.
This screen contains an entry for each switch for which the local switch is presently
acting as active backup.
Time Acting as Backup
Displays the time in milliseconds since the local switch started forwarding frames
on behalf of the switch represented by the entry.
More
Displays the next entry (sorted by MAC Address).
Return
Closes the screen and returns to the DSRR Status Tables screen.
