3.9 General-purpose Signal SVON

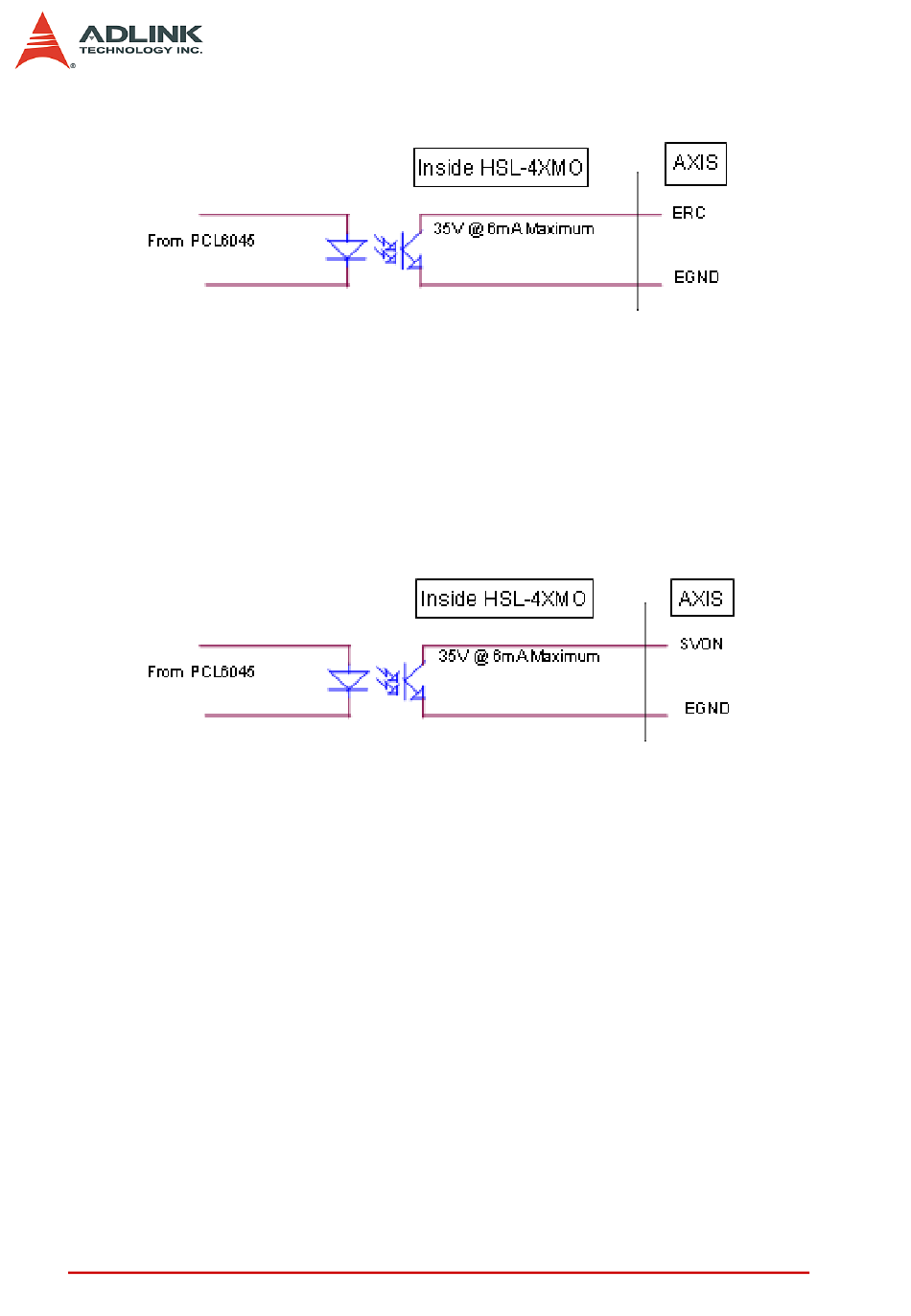

The SVON signal can be used as a servomotor-on control or gen-

eral- purposed output signal. The output circuit for the SVON sig-

nal is shown below:

The RDY signals can be used as motor driver ready input or gen-

eral purpose input signals. The input circuit of RDY signal is

shown in the following diagram:

Signal Connections
